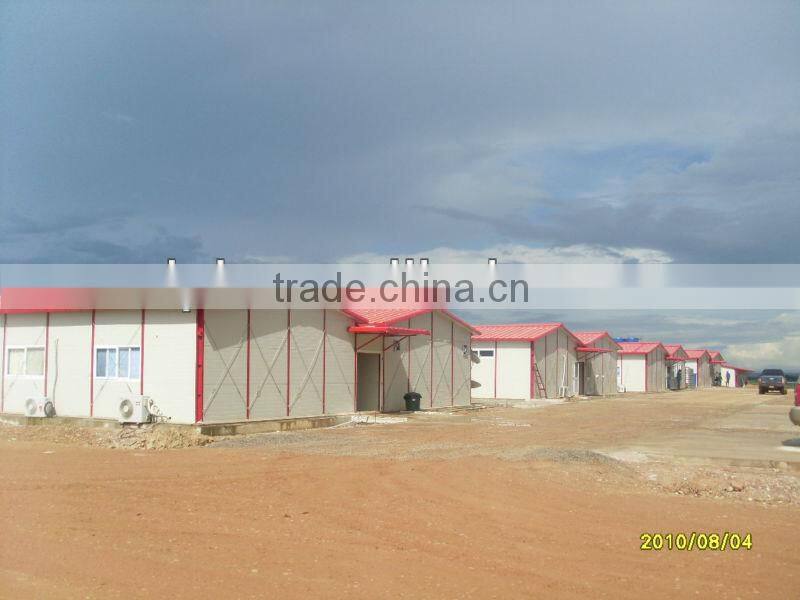

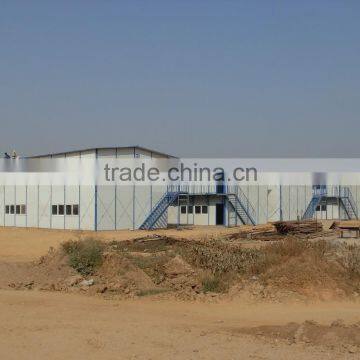

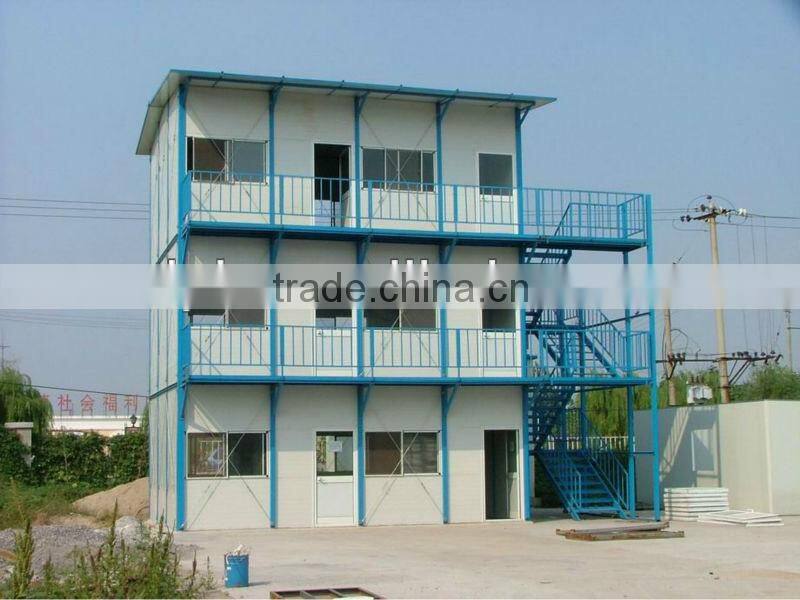

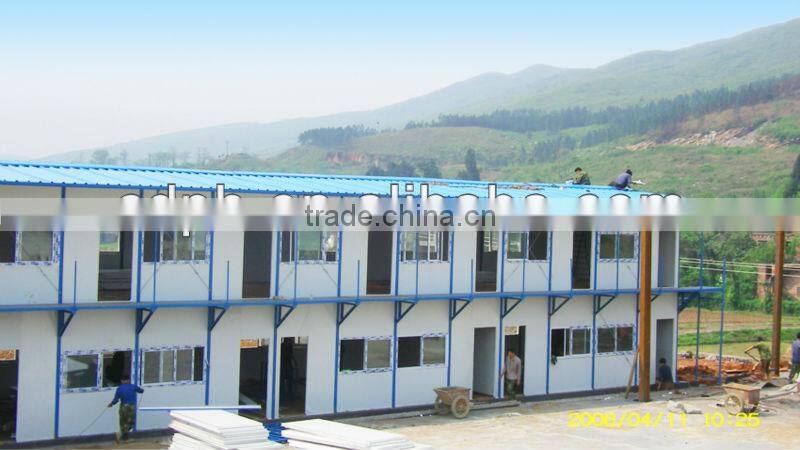

cheap steel structure housing

No.

Sort

Name

Specification

1

Specification

length

NM+160(N=4,5,6... M is modular, 1M=1820mm)

2

Width

NM+160(N=3,4,5... M is modular, 1M=1820mm)

3

Wall height

5715mm

        8565mm

4

Clear height

Ground floor :2425mm First floor :2685mm

Ground floor :2425mm First floor :2425mm

Three floor:2685mm

6

Standard accessory

Wall board

50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/m².k

7

Roof board

50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/m².k

8

Door

SIP with steel frame, single door with dimensions of 955*2024mm, furnished with a cylinder lock with 3keys. Doorframe is made of 1.5mm steel, 50mm thick EPS insulation foam.

9

Window

PVC , white color, with dimensions of 1750*950mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen.

10

Base beam

C style steel. material:Q235.Painted

11

Column

Double C style steel. material: modular pace: 1830mm. Painted

12

Floor beam

Parallel truss(C style steel). material:Painted steel

13

Floor purline

Gable truss(C style steel). material: Painted steel

14

Roof beam

Gable truss(C style steel). material: Painted steel

15

Roof purline

Gable truss(C style steel). material: Painted steel

16

Inclined brace

round steel, material:Galvanized and Painted

17

Stair

Steel stair, material:Painted steel

18

Tread

press steel board

19

Floor stab

14mm plywood

20

Option

Elevated ceiling

Ceiling of mineral wool acoustic panel, or

Ceiling of aluminium panel

22

Decorative floor

PVC, laminated or ceramic tile

23

Drainage system

Provided plan, design and construction

24

Electric system

Provided plan, design and construction

25

Technical parameter

Bearing load

50kg/m²

26

Wind pressure:

0.6KN/M2

0.45KN/M2

27

Fire proof

B2 grade

28

Resistant temperature

-20ºC to 50ºC

29

The resistant earthquake grade

7 fission activate.
