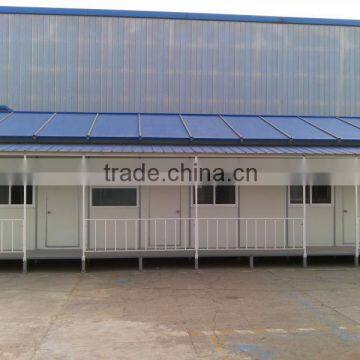

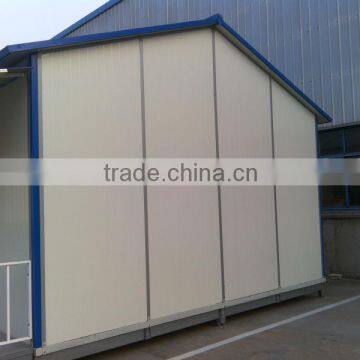

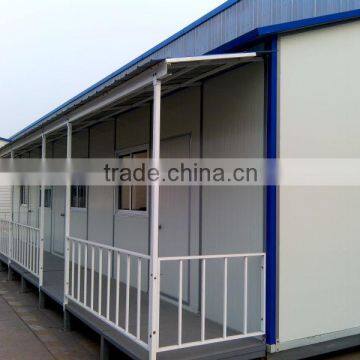

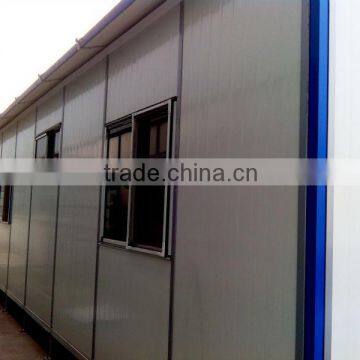

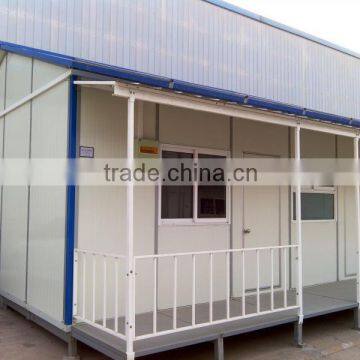

Movable house (A type) is a standard prefab building. The width is 5.060m as fixed size but the inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled
easily and four workers can finish 120m2 in 8 hours according to instruction and CD.
steel install quickly prefab building as follows:
No. | Sort | Name | Specification |
1 | Specification | length | (n-2)*1224+2*1106mm (n: prefab unit, n=4,5,6) |
2 | Width | 5060mm | |
3 | Ridge height | 3750mm | |
4 | Inside height | 2700mm | |
5 | Standard accessory | Wall board | 50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. |
6 | Roof board | 60mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. | |
7 | Door(D-1) | SIP, single door with dimensions of 800*2000mm, Doorframe is made of aluminum, 50mm thick EPS insulation foam. | |
8 | Door(D-2) | SIP, single door with dimensions of 750*2000mm, Doorframe is made of aluminum, 50mm thick EPS insulation foam. | |
9 | Window(W-1) | Color steel sliding window with dimension of 1200mm*1000mm, red or blue, supplied with fly screen. | |
10 | Window(W-2) | Color steel sliding window with dimension of 1200mm*500mm, red or blue, supplied with fly screen. | |
13 | Channel | Z 50*60*30, material:Q235. Painted | |
14 | Post | H 56*40, material:Q235, modular pace: 1224mm. Galvanized | |
15 | Roof beam | The trusses are composed of 353 steel and 20*20 steel, the material of the tie rod in the bottom is Q235. Galvanized | |
16 | Compressed tank | C 40, material:Q235. Galvanized | |
17 | Option | Elevated ceiling | Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel |
18 | Elevated floor | Steel structure with 14mm plywood | |
19 | Decorative floor | PVC, laminated or ceramic tile | |
20 | Drainage system | Provided plan, design and construction | |
21 | Electric system | Provided plan, design and construction | |
22 | Technical parameter | Bearing load | 50kg/m2 |
23 | Wind pressure: | 0.5KN/M2 | |
24 | Fire proof | B2 grade | |
25 | Resistant temperature | -15°C~50°C | |
26 | The resistant earthquake grade | 7fission activate. |
