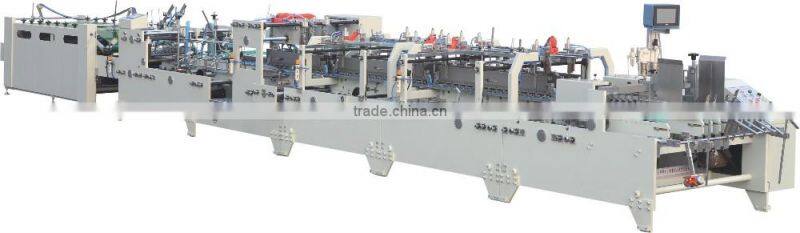

Easy Operation Box Gluing Machine

Product Description

Box Gluing Machine

Box Gluing Machine : Box Gluing Machineadopt HMI and PLCcontroller, imported electronnics, feeding unit controlled by separately motor and inverter, railway running, keep the machine performance atable ,easy control and easy operate.

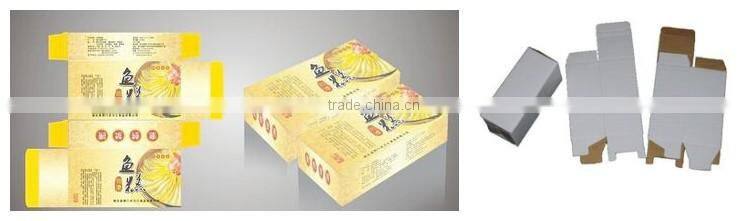

Box Gluing Machine : an idea equipment of making 4 conner or 6 conner box (box with cover and fold),Carton box ,cardboard carton I.E. Which the box widely uesd for snacks, cake, muffin, ect food package.

1.Size of 6 folds box and folding box:





2. Size of 4 corners box and folding box



3.Size of bottom-locked carton and folding carton

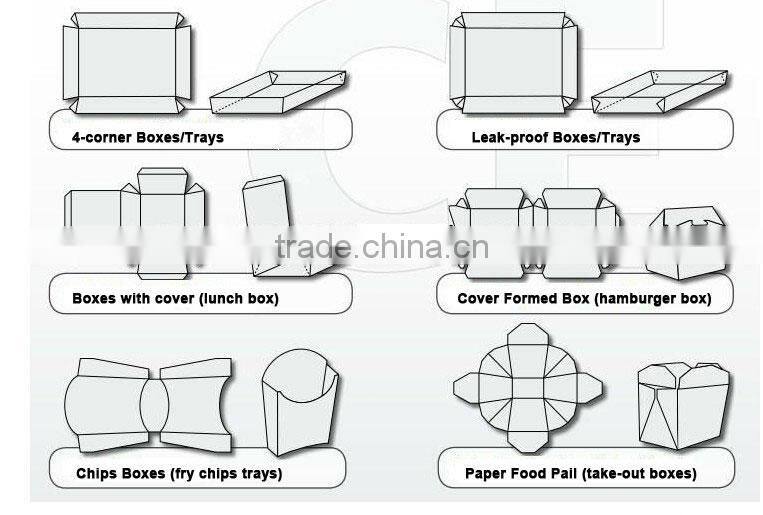

4.Carton type and size:

Box Gluing Machine

1.Feeding section
a.  Box Gluing Machine :  auto feed correctly and continuously, internal of feeding is adjusted by continuously variable speeder;
b. Box Gluing Machine:  independent high-speed feeding bell can be  easily adjusted;
c. Box Gluing Machine:  independent vibrating motor can improve feeding greatly;
d. Box Gluing Machine:   feeding blade and baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.

2.Folding
a. Box Gluing Machine:  long-distant folding ensure the first line 180°, the third 135° to easily open the cartons fully filled;
b. Box Gluing Machine:  all parts can be easily replaced, which is convenient to install other components for other kinds of cartons.

3.Bottom folding
a. Box Gluing Machine:  The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
b. Box Gluing Machine:  Bottom-folding speed is 50-400 pcs per min, stable and reliable

4.Folding
a. Box Gluing Machine:  Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.

5.Full pressing
 a.Box Gluing Machine: Pressure can be adjusted conveniently, reliable, ensure good quality of gluing
 b. Box Gluing Machine: Automatic Pre-Folding and Bottom Lock Folder Gluer Machine(QH-SLJ)es to match with boxes regulating, easy to count and pack

6.Transmission
Box Gluing Machine:  Structure is specially designed, pressure adjustment is easy and reliable to ensure the quality of gluing;

 7.Collecting
Box Gluing Machine:  Press is equipped with independent speeding device, the operator can set the paper collecting speed according to the packing speed.

8.Spraying System
Box Gluing Machine:  Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.

9.Servo motor
Box Gluing Machine: Corrugated Paper Box Die Cut Machine Reliable (QH-SLJ): The servo control system, assistant with PLC and signal collection operation system, to fold each product (4, 6 corners box) correctly, ensure perfect quality.

We provide not only the equipment but also the solve ways.
