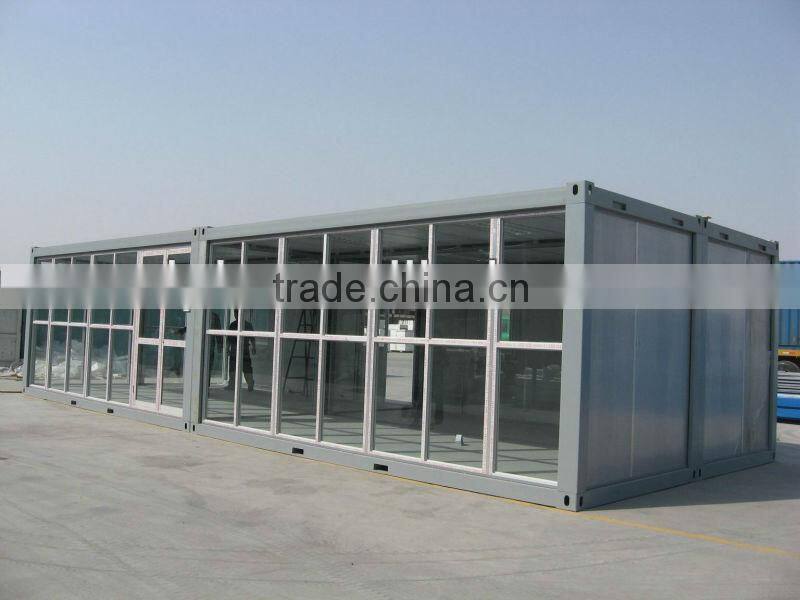

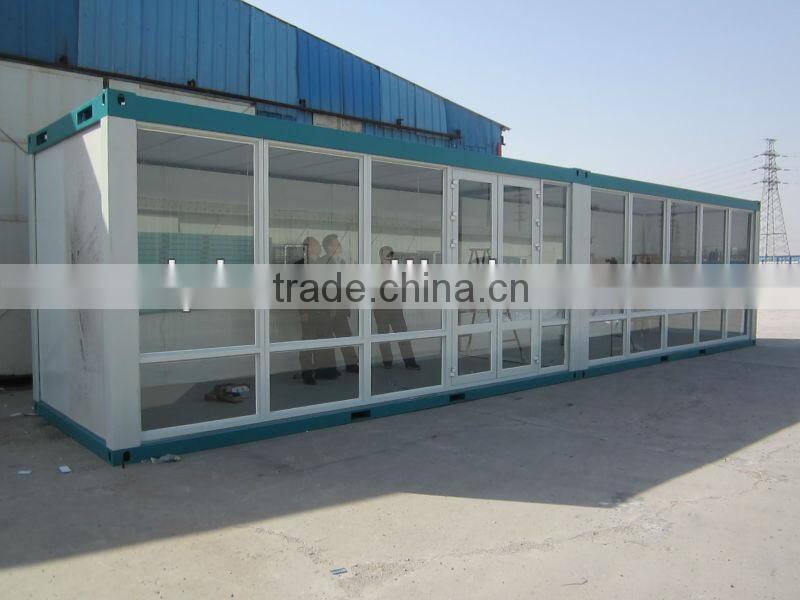

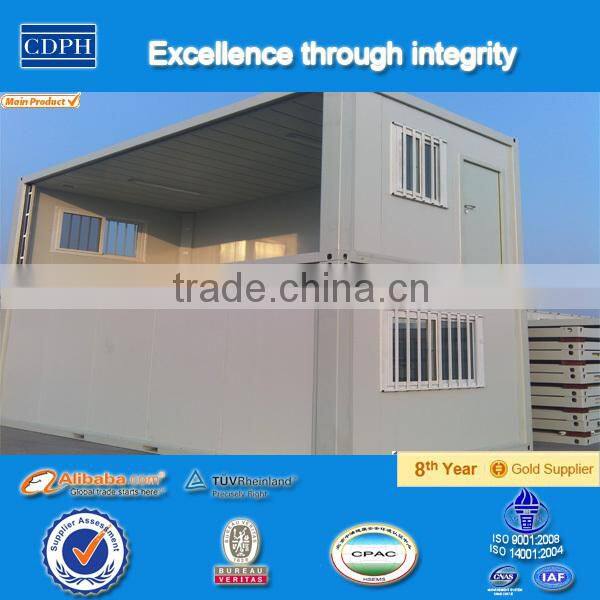

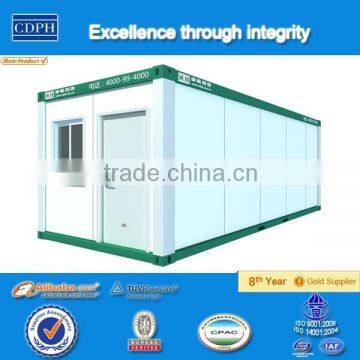

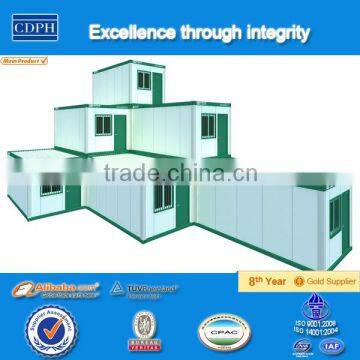

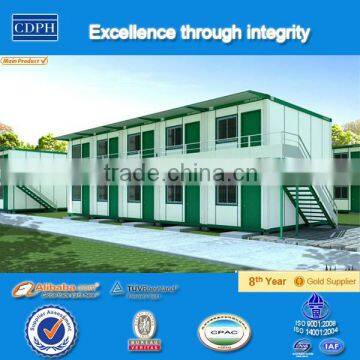

New type sandwich panel flatpack house 20ft movable building

No.

Sort

Name

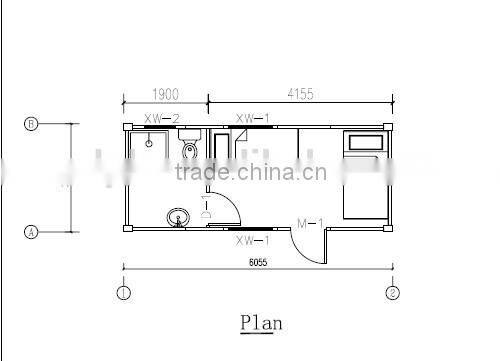

Specification

1

Specification

length

6055mm

2

Width

2435mm

3

Wall height

2790mm

4

weight

2000KGS

6

Standard accessory

Wall

75mm glass wool sandwich panel, 0.4mm color steel sheet and 60kg/m3 glass wool density inside.

7

Roof

Outside is 0.5mm color steel as the surface, middle is 75mm glass wool insulation. Inside is 9mm melamine board.

Permitted live loading:1.5KN/m²

8

Base

External wainscot is 0.3mm galvanized steel sheet metal, and insulation is glass wool. The supporting material is 16mm cement board and the inside decoration is 2mm rubber plastic flooring.

Permitted loading: 3.0KN/m²

9

Door

Steel door, single door with dimension of 800*200mm, furnished with lock.

10

Window

1) PVC sliding window, white color, with dimensions of 900*1100mm; Supplied with fly screen.

2) PVC casement window, white color, size is 700*1000mm. Supplied with fly screen.

11

Post

Galvanized steel, material: Q345-Q235, 3mm thickness. Connection part is M12 high strength bolt.

12

Option

Drainage system

Provided plan, design and construction

13

Electric system

Provided plan, design and construction

15

Technical parameter

Resistant temperature

-20°Cto 50°C

16

Wind load

11 grade

17

The resistant earthquake grade

7fission activate.
