Home > Products > Die Cutting Machine > QC-750 Paper Roll to Paper Fan Semi Automatic Die Cutting Machine
QC-750 Paper Roll to Paper Fan Semi Automatic Die Cutting Machine
- Ningbo
- T/T Money Gram
You May Like
-
Hot Selling Good Quality QC-930 Manual Die Cutting Press Machine
-
Best Selling Professional QC-750 Die Cutting Machine Price
-
Best Selling Professional QC-750 Manual Paper Creasing Machine
-
Hot Selling Good Quality QC-750 Die Cutting Machine Cardboard
-
Best Selling Professional QC-750 Paper Cutting Machine Price
-
Best Selling Professional QC-750 Rotary Die Cutting Machine
Product Details
| Condition | New | Type | Die-cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | QC | Model Number | QC-750 | |
| Voltage | 220V/380V/50HZ | Power(W) | 6kw | |
| Dimension(L*W*H) | 2500*1350*1600mm | Weight | 2T | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Company Brief Introduction:
Our service
we have been always insisting on developing specialation strategy in our industry and creating high quality products and service. We provide accessories and maintenanizce of the main parts during warranty. After the warranty, you can also get the best and professional service from us.

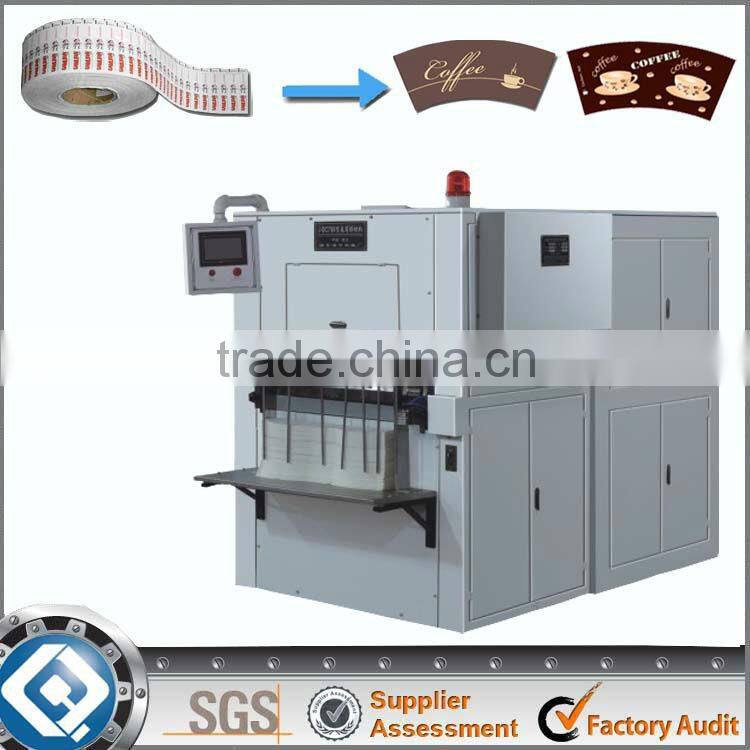

QC-750 Semi Automatic Die Cutting Machine
Semi Automatic Die Cutting Machine Main Features:
QC-750 Automatic Reel Paper Cutting Machine is a automatic machine that can cut paper roll into paper fan. It can cutting by setting certain length or following color mark. Compared with the traditional Hydraulic machine, it is much more efficient, time-saving, material-saving, and much more profitable.
Model | QC-750 Semi Automatic Die Cutting Machine |
Press mark max.area | 770*270 |
Press cut line length | <250mm |
Working speed | 80-150 time/min |
Main motor power | 6kw |
Material specification | 100-600g/m2 |
Air source | 1.0m3/min;0.8Mpa(customer-owned) |
Weight | 2T |
Overall dimensions | 2.5*1.35*1.6m |

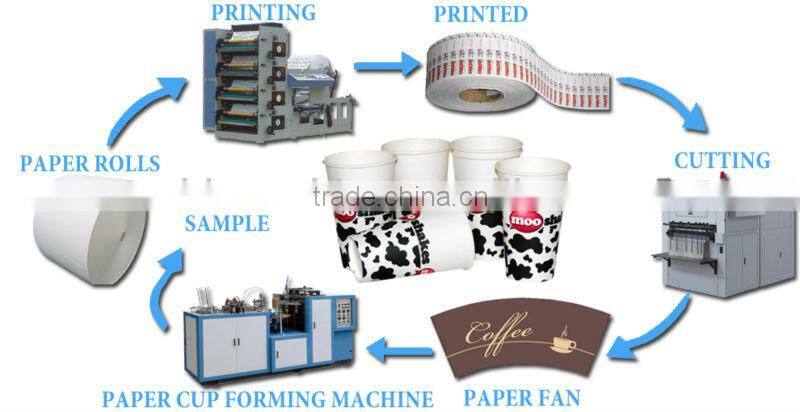

Paper Cup Production Process:
Printing Step: The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the cups.
Cutting Step: In this step, you should decide the size of the cup, so we can cut the paper fan in decided size.
Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.

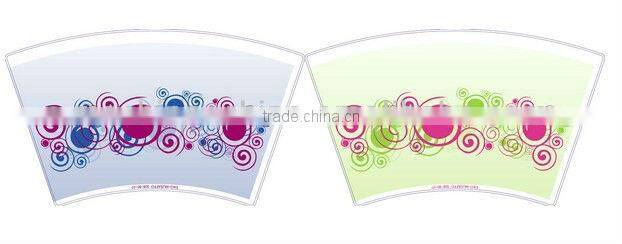

Semi Automatic Die Cutting Machine Samples Fan:
The design can be decided upon the customers' requirement. We can adjust the machine according to the design of the paper fan.
Factory & Workshop
Delivering & Packing
Semi Automatic Die Cutting Machine Semi Automatic Die Cutting Machine
