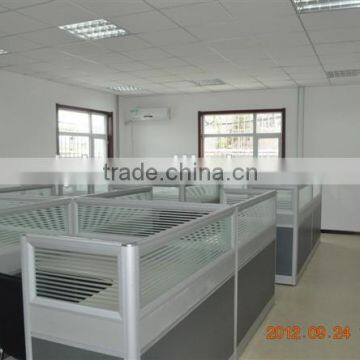

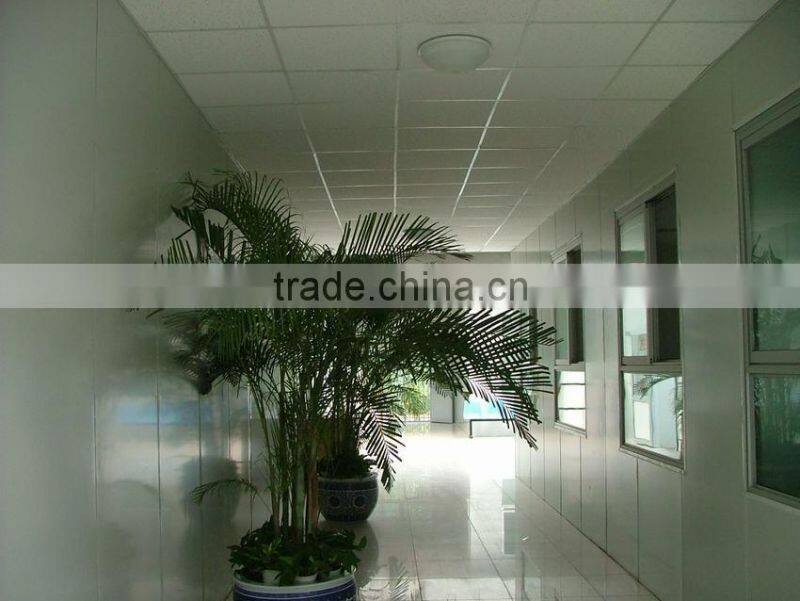

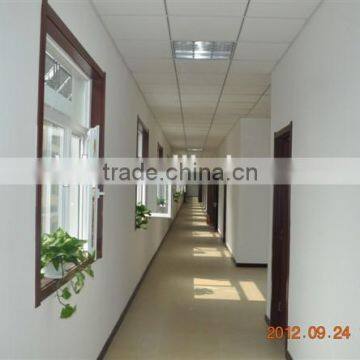

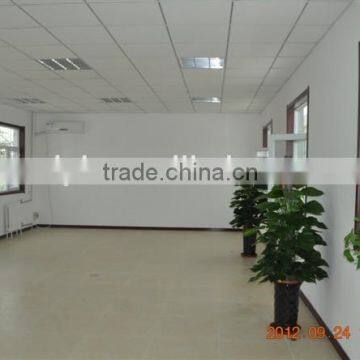

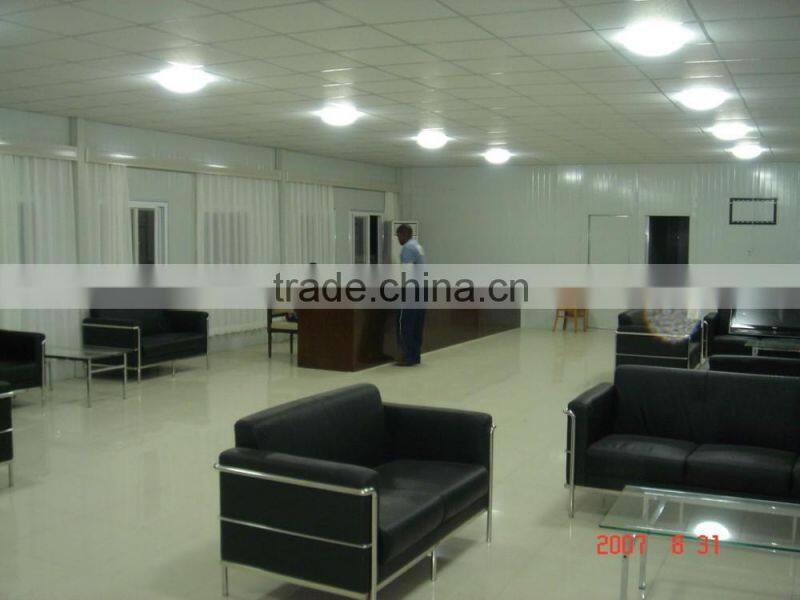

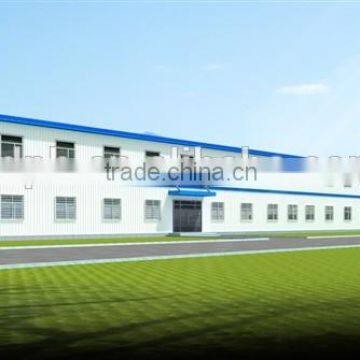

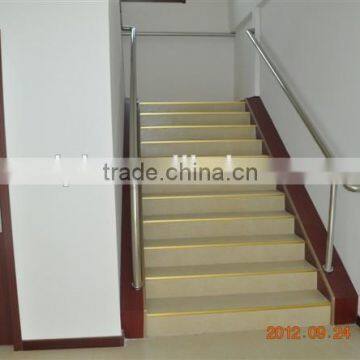

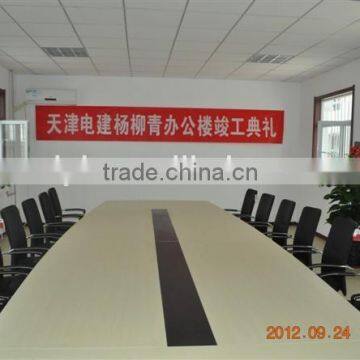

Hot Dip Galvanized Two Storey Luxury Office, prefabricated building, two storey office
Two storey luxury office uses ZA type building for the main structure plus luxury internal decoration for comfortable office field. The size and layout can be designed as per customers’requirement. Based on bolts connection without welding work, it could be assembled and disassembled easily and six common workers can finish 50m2 in 8 hours according to our manuel and installation CD.
The detailed information is as follow:
No. | Sort | Name | Specification |
1 | Specification | length | No limited |
2 | Width | Less than 12m | |
3 | Wall height | 3000mm | |
4 | Clear height | 2600mm | |
5 | Roof slope | 1:5 | |
6 | Standard accessory | Wall board | 75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
7 | Roof board | 75mm thickness sandwich panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. | |
8 | Outside door | Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam. | |
| Inside door | SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. | |
9 | Window(W-1) | PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. | |
| Window(W-2) | PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen. | |
10 | Channel | Galvanized Steel Plain Sheet press moulding Material: Painted steel | |
11 | Post | Hot galvanized steel structure | |
12 | Purline | Hot galvanized steel structure | |
13 | Roof truss | Hot galvanized steel structure | |
| Decoration and connection | Color steel sheet, 0.35mm thick | |
| Ceiling | Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen | |
20 | Option | Decorative floor | PVC, laminated or ceramic tile |
21 | Drainage system | Provided plan, design and construction | |
22 | Electric system | Provided plan, design and construction | |
25 | Technical parameter | Bearing load | 50kg/m2, can be adjusted according to climate |
27 | Wind pressure: | 0.5KN/M2, can be adjusted according to climate | |
28 | Fire proof | B2 grade | |
29 | Resistant temperature | -25 to 50 | |
30 | The resistant earthquake grade | 7 fission activate. |
