Specification of A type house:
The detailed information as follow:
No. |
Sort |
Name |
Specification |
1 |
Specification |
length |
(n-2)*1224+2*1100mm (n: prefab unit, n=4,5,6) |
2 |
Width |
5048mm |
|
3 |
Ridge height |
3500mm/ 3650mm / 3850mm |
|
4 |
Inside height |
2450mm/ 2600mm/ 2800mm |
|
5 |
Standard accessory |
Wall board |
50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k. |
6 |
Roof board |
60mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/·k. |
|
7 |
Door(D-1) |
SIP, single door with dimensions of 800*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
8 |
Door(D-2) |
SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
9 |
Window(W-1) |
Color steel sliding window with dimension of 1200mm*1000mm, red or blue, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. |
|
10 |
Window(W-2) |
Color steel sliding window with dimension of 1200mm*500mm, red or blue, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. |
|
13 |
Channel |
Z 50*60*30, . Painted |
|
14 |
Post |
H 56*40, modular pace: 1224mm. Galvanized |
|
15 |
Roof beam |
The trusses are composed of 353 steel and 20*20 steel. Galvanized |
|
16 |
Compressed tank |
C 40, Galvanized |
|
17 |
Option |
Elevated ceiling |
Ceiling of mineral wool acoustic panel, or ceiling of calcium silicate Ceiling of aluminium panel |
18 |
Elevated floor |
Steel structure with 14mm plywood |
|
19 |
Decorative floor |
PVC, laminated or ceramic tile |
|
20 |
Drainage system |
Provided plan, design and construction |
|
21 |
Electric system |
Provided plan, design and construction |
|
22 |
Technical parameter |
Bearing load |
50kg/m2 |
23 |
Wind pressure: |
0.5KN/M2 |
|
24 |
Fire proof |
B2 grade |
|
25 |
Resistant temperature |
-15 to 50 |
|
26 |
The resistant earthquake grade |
7 fission activate. |

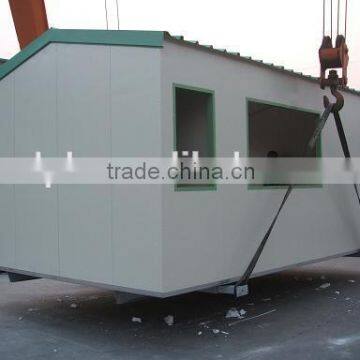

Various product picture:
Company picture:
Certificate:
