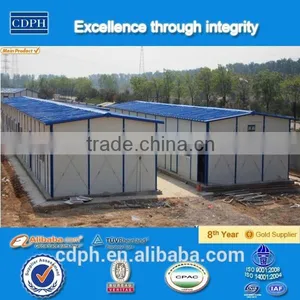

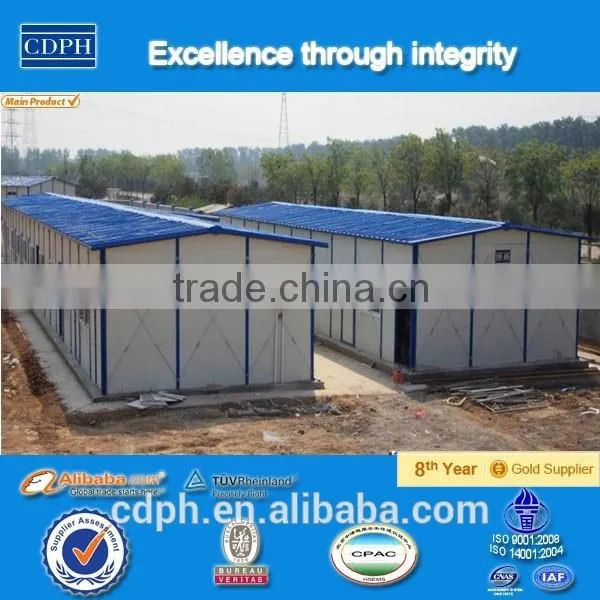

Prefabricated buildings for construction site used as temporary facilities camp
Features & Advantages:
1, Module: Width and length can be extended by times of 1820mm modular. Flexible design.
2, Fast Installation:Components are standard and fabricated in factory, less site works, quick and easy installation. Eight skilled workers can finish 100 m2 in 8 hours.
3, Reusable:Structures are connected by bolts & nuts, panels plug into channels, house can be knocked down for many times
4, Floor system: Directly on concrete foundation, or equipped with raised steel flooring system.
5, Loading: One 40HQ container can load about 250m2without raised floor , or 200m2 with elevated floor.
6, Parameters:Wind load: 0.45KN/ m2, Anti-seismic: 7 , Service life: 5~10years.
No. |
Series |
Name |
K Type Single Story Specification |
1 |
Size |
length |
nM+160(n=4,5,6…),M is modules(1M=1820mm) |
2 |
width |
nM+160(n=3,4,5) M is modulus(1M=1820mm) |
|
3 |
wall height |
2870mm |
|
4 |
net height |
2685mm(wihtout ceiling size) |
|
5 |
Standard accessory |
ground beam |
C80# profile steel |
6 |
column |
double C80# profile steel |
|
7 |
roof beam |
Herringbone truss girder(C 60# profile steel welded) |
|
8 |
roof purlin |
C60# profile steel |
|
9 |
wall panel |
50mm thickness EPS sandwich panel |
|
10 |
roof panel |
50mm or 75mm thickness EPS sandwich panel |
|
11 |
door |
Steel frame panel door,size:960mm*2028mm |
|
12 |
window |
PVC sliding window,size:1735mm*932mm |
|
13 |
Options |
ceiling |
Waterproof gypsum board, or other materials |
14 |
window |
PVC sliding window;aluminum sliding window |
|
15 |
door |
single open or double open color steel door |
|
17 |
other design |
electrical system, water plumbing system design and material available |
|
18 |
Structure |
roof load |
50kg/m2 |
19 |
Design wind load |
10 degree,0.45KN/m2 |
|
20 |
Earthquake |
7 degree |
