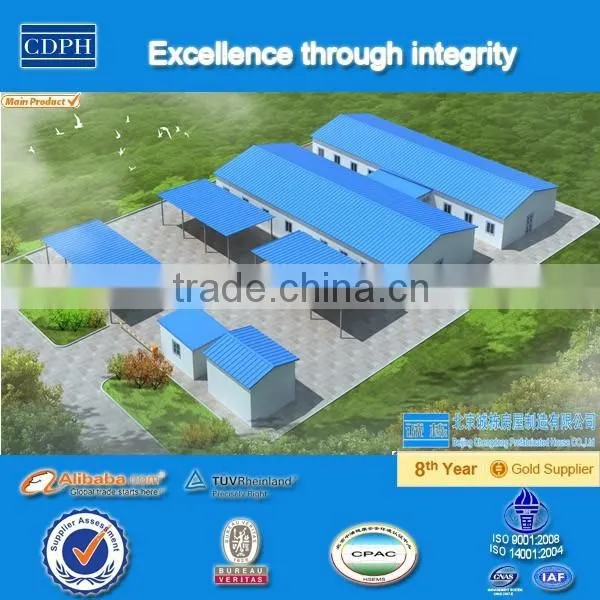

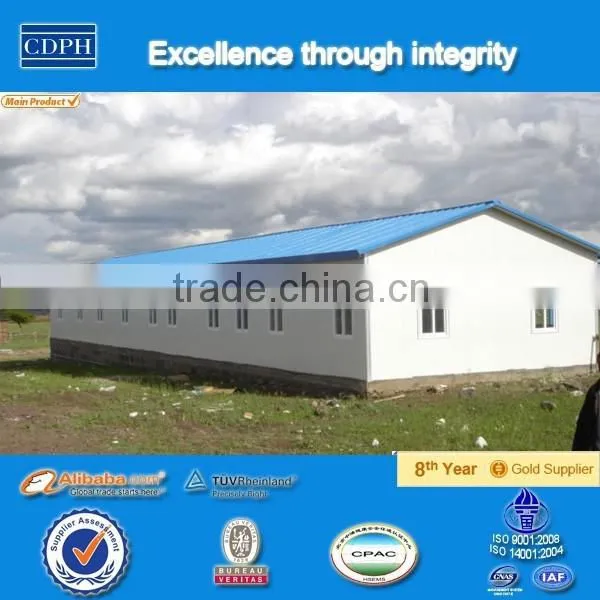

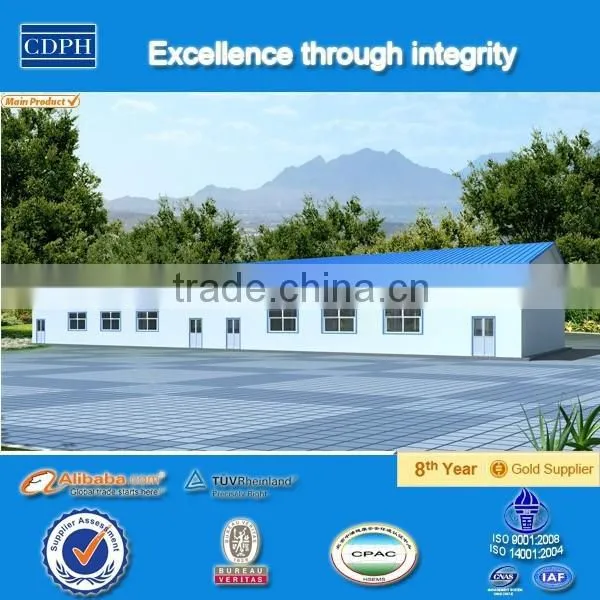

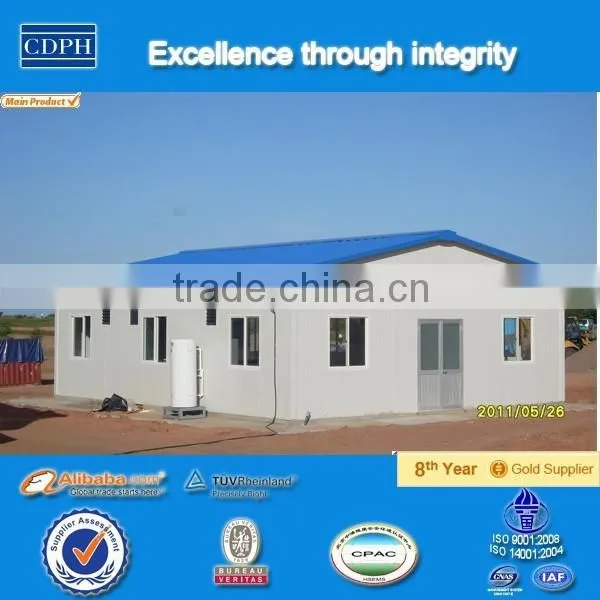

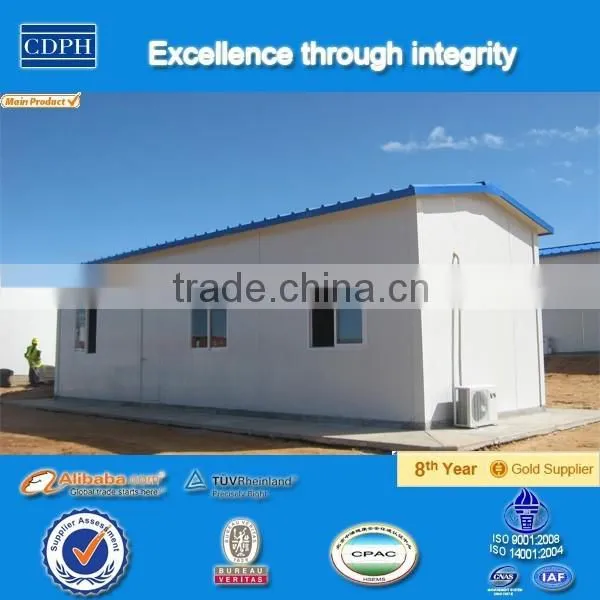

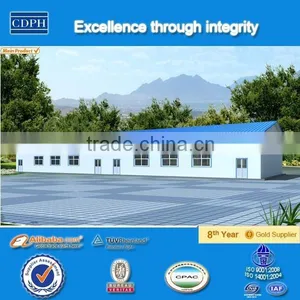

Sandwich panel steel modular movable portable prefabricated house plans with prefab
No |
Sort |
Name |
Specification |
1 |
Specification |
Length |
No limited |
2 |
Width |
12m, 15m, 18m |
|
3 |
Wall Height |
4000mm-7000mm |
|
5 |
Roof slope |
1:5 |
|
6 |
Standard accessory |
Master beam |
2-M300 steel, T=3.0mm, Material: Q345, galvanized |
7 |
Column |
2-M300 steel, T=3.0mm, Material: Q345, galvanized |
|
8 |
Roof Purline |
C-170 steel, T=2.3mm, Material:Q235, galvanized |
|
9 |
Wall Purline |
C-170 steel, T=2.3mm, Material:Q235, galvanized |
|
10 |
Compressed part |
Decorate and connect the wall, roof |
|
11 |
Bolt |
For connection the beam, column and purline |
|
12 |
Chemical Bolt |
For connection the column and foundation |
|
13 |
Wall board |
75mm EPS panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
|
14 |
Roof board |
75mm EPS corrugated panel, 0.35mm steel sheet, 13kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/·k. |
|
17 |
Door |
SIP door, in size of 4000mm*4000mm |
|
18 |
Window (W-1) |
PVC, white color, with dimension 1200*1200mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. |
|
19 |
Option |
Decorative floor |
Ceramic tile floor |
20 |
Elevated ceiling |
Ceiling of mineral wool acoustic panel in room and aluminium panel in bathroom and kitchen |
|
21 |
Drainage system |
Provided plan, design and construction |
|
22 |
Electric system |
Provided plan, design and construction |
|
23 |
Technical parameter |
Live load: |
0.3KN/distance between columns :6m,0.50KN/distance between columns :4m |
24 |
Wind pressure: |
0.35KN/ distance between columns :6m,0.50KN/distance between columns :4m |
|
25 |
Fire proof |
B2 grade |
|
26 |
Resistant temperature |
-20 to 50 |
|
27 |
Earthquake resistant |
7 fission activate. |

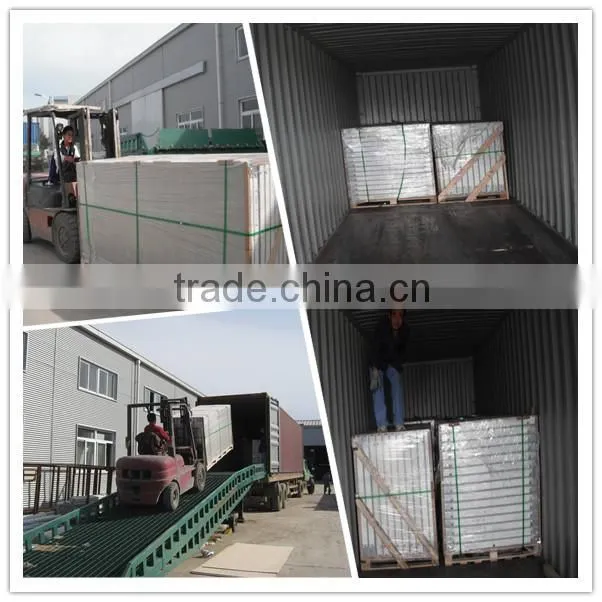

Package

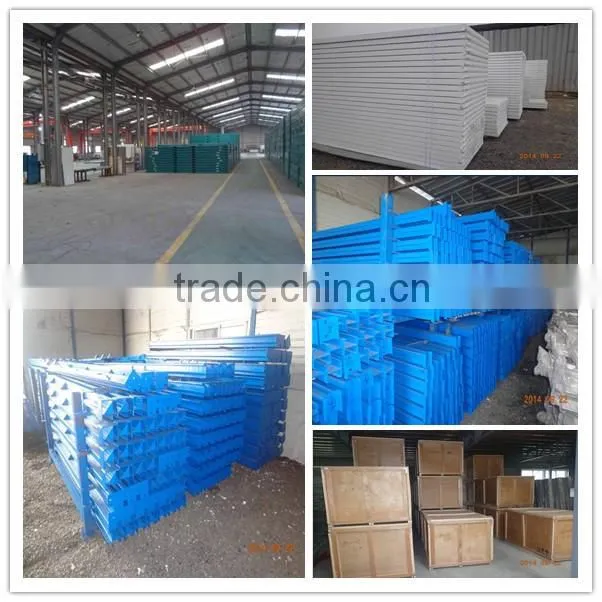

Warehouse
contact
Thanks! Nice day!
