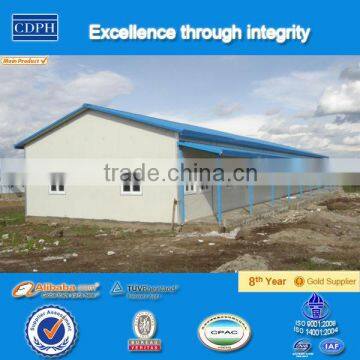

ZA prefabricated house is a flexible modular house. The size and layout can be designed as per customers’ requirements and local climate. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and six common workers can finish 50m2 in 8 hours according to instruction and CD.
The detailed information as follows:
No. | Sort | Name | Specification |
1 | Specification | length | 6000mmm |
2 | Width | 2900mm | |
3 | Wall height | 2800mm | |
4 | Clear height | 2800mm | |
5 | Roof slope | 11° | |
6 | Standard accessory | Wall board | 75mm thickness EPS panel,0.5mm steel sheet, 13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.38w/.k. |
7 | Roof board | 50mm thickness EPS corrugated panel, 0.4mm steel sheet,13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.58w/·k. | |
8 | Door(D-1/2/3/4) | SIP single door with dimension of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. | |
9 | Window(W-1) | PVC, white color, with dimension of 940*1000mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. | |
| Window(W-2) | PVC, white color, with dimension of 940*500mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. | |
10 | Base beam | H style steel Q345, galvanized | |
11 | Base purline | C style steel, Q235, galvanized | |
12 | Base support | Square steel tube Q235, galvanized | |
13 | Base lifting part | Square steel tube, Q235, galvanized | |
| Base channel | Press forming steel plate. Q235, galvanized | |
| Roof beam | C style steel,Q235, painted | |
| Base panel | Plywood with 14mm thickness in room and bamboo panel with 14mm thickness in bath and kitchen | |
| Decoration and connection | Color steel sheet, 0.35mm thick | |
20 | Option | Decorative floor | PVC or laminated floor in room and aluminium panel in bath and kitchen |
21 | Drainage system | Provided plan, design and construction | |
22 | Electric system | Provided plan, design and construction | |
25 | Technical parameter | Bearing load | 30kg/m2 |
27 | Wind pressure: | 0.45KN/M2 | |
28 | Fire proof | B2 grade | |
29 | Resistant temperature | -20 to 50. |
