Specifications
Low cost,hi-tec processing line and skilled employeesGood quality,strict pass check
Quick build, bolt connection ,no welding
Description
K Type single floor is a cost-effective prefab house, mainly designed for construction site accommodation and office. Widely used in Asia countries, including China, India, Vietnam, and Thailand, Philippines, Indonesia and etc.
Features & Advantages:
1, Module: Width and length can be extended by times of 1820mm modular. Flexible design.
2, Fast Installation:Components are standard and fabricated in factory, less site works, quick and easy installation. Eight skilled workers can finish 100 m2 in 8 hours.
3, Reusable:Structures are connected by bolts & nuts, panels plug into channels, house can be knocked down for many times
4, Floor system: Directly on concrete foundation, or equipped with raised steel flooring system.
5, Loading: One 40HQ container can load about 250m2without raised floor , or 200m2 with elevated floor.
6, Parameters:Wind load: 0.45KN/ m2, Anti-seismic: 7 , Service life: 5~10years.
Disassembly

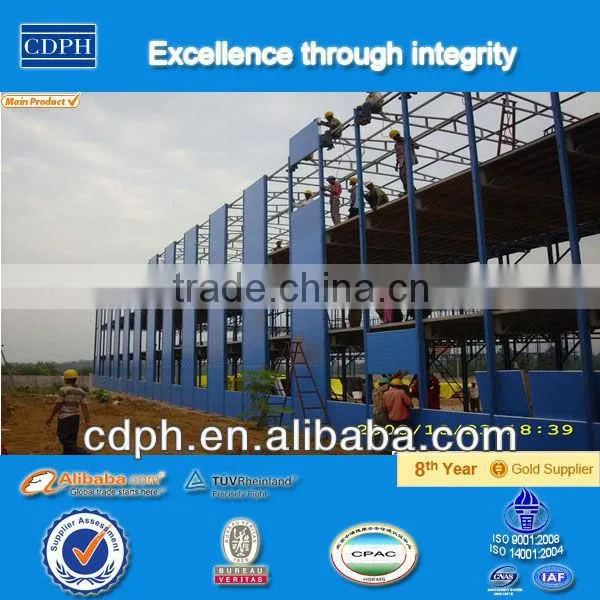

All structures include raised steel flooring system are connected by bolts & nuts, panels flexible plug into channels, the house can be assemble and disassemble for 5-10 times.
When one project job is finished, house can be relocated to other site.
Specification
No. | Series | Name | K Type Single Story Specification |
1 | Size | length | nM+160(n=4,5,6…),M is modulus(1M=1820mm) |
2 | width | nM+160(n=3,4,5) M is modulus(1M=1820mm) | |
3 | wall height | 2870mm | |
4 | net height | 2685mm(wihtout ceiling size) | |
5 | Standard accessory | ground beam | C80# profile steel |
6 | column | double C80# profile steel | |
7 | roof beam | Herringbone truss girder(C 60# profile steel welded) | |
8 | roof purlin | C60# profile steel | |
9 | wall panel | 50mm thickness EPS sandwich panel | |
10 | roof panel | 50mm or 75mm thickness EPS sandwich panel | |
11 | door | Steel frame panel door,size:960mm*2028mm | |
12 | window | PVC sliding window,size:1735mm*932mm | |
13 | Options | ceiling | Waterproof gypsum board, or other materials |
14 | window | PVC sliding window;aluminum sliding window | |
15 | door | single open or double open color steel door | |
17 | other design | electrical system, water plumbing system design and material available | |
18 | Structure | roof load | 50kg/m2 |
19 | Design wind load | 10 degree,0.45KN/m2 | |
20 | Earthquake | 7 degree |
