IR PREHEATING PLATE
MODEL: T-8280
Technical Parameters
Work bench size |
410x316mm |
Rated voltage and frequency |
AC220-230v/AC110V 60/50Hz |
Complete machine power |
1600W |
Preheating plate power |
1500W |
Preheating plate size |
280x270mm |
Preheating plate temperature adjustable |
0-450℃ |
Main Components
Preheating plate main body |
1 |
Temperature sensor |
1 |

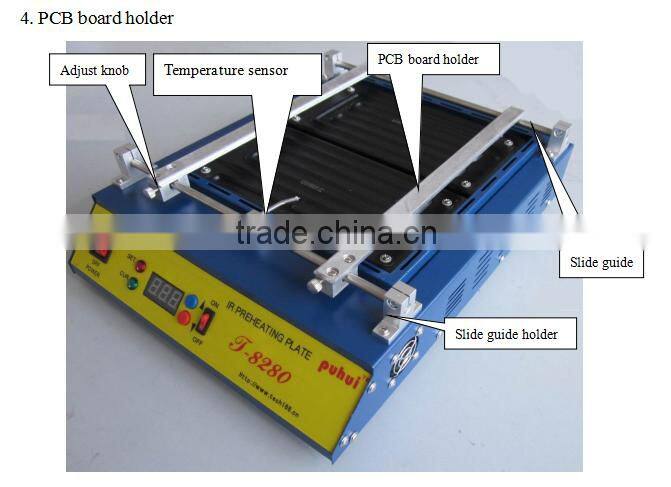

PCB board holder |
1 |
Power line |
1 |
User manual (compact disc) |
1 |
Features
1. This machine is with infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature, controls temperature precisely.
2. T-8280 can heat PCB board and component which contains lead or not,especially BGA and SMD parts.
3. Use infrared heat, easy to cut through, heat proportion, don’t have sirocco flow. Don’t shift the small components on the PCB board,ensure the welding quality.
4. This machine is with 1500W heating system, heating area 280x270mm. Can use together with the handhold infrared welder T-835.
5. Easy operate, you can operate it after simple training.

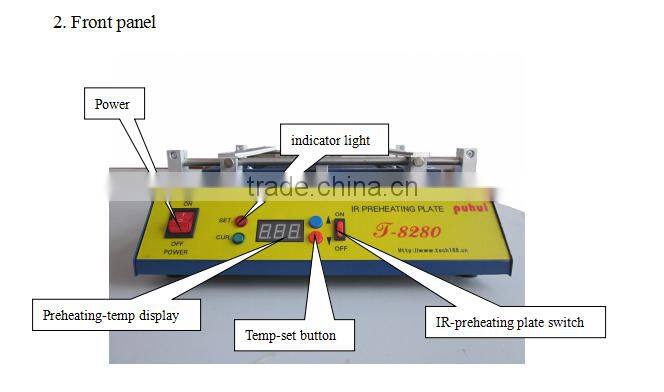

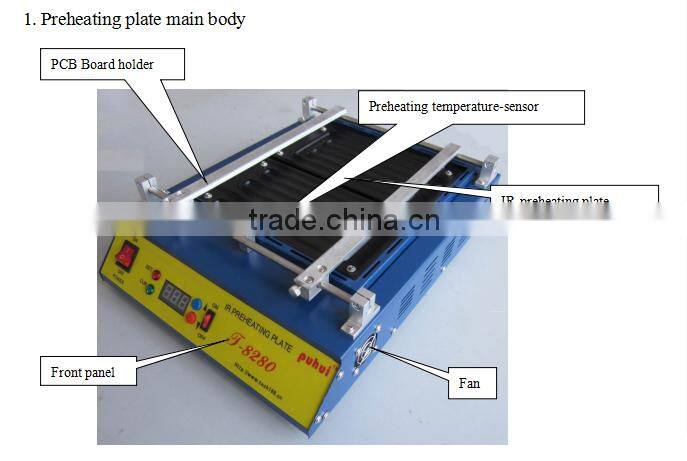

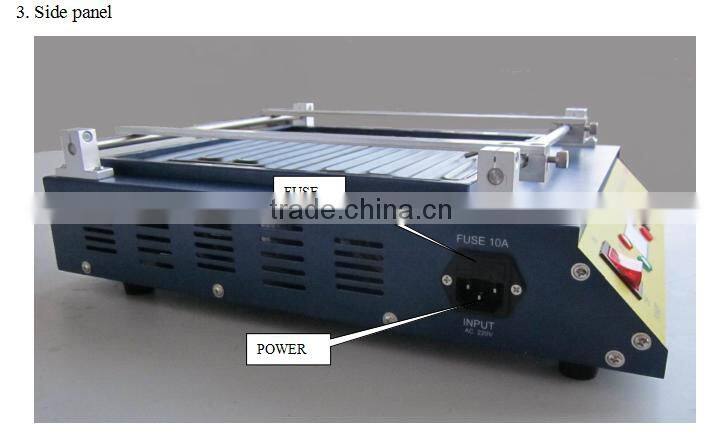

Description of the main parts
Cautions!
1. After finishing, don’t turn off the power immediately; make sure the infrared preheating plate
complete cooling.
2. Keep the ventilation free-flowing, the infrared preheating plate clean, use dehydrated alcohol
clean it regularly!
3. The high temperature operation, pay attention, avoid scalding.
4. If you don’t use the machine for a long time, you’d better pull off the power source plug!
Warranty
The whole machine maintains for one year and the spare parts maintains for three months.
Provides the immediate network online Q/A and the technical advisory work service. Also supply
spare parts as EXW price.
Statement
If there is any difference between users operating manual and actual product, according to the
actual product!
