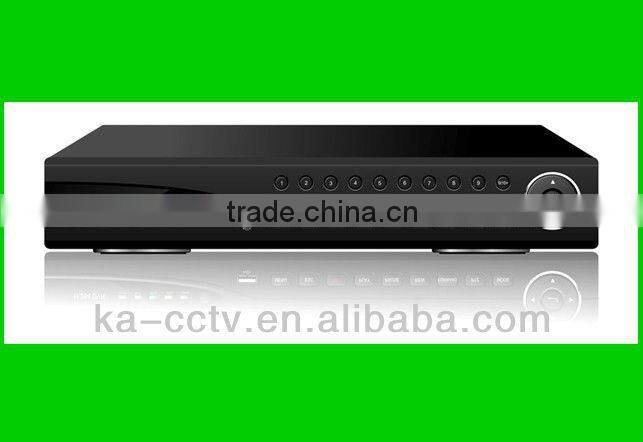

16ch Monitoring System Webcam Alarm System Video Recorder Multi Room -3116

16ch Monitoring System Webcam Alarm System Video Recorder Multi Room -3116 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XKA
Model Number:
3116
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name XKA
Model Number 3116

Specifications

1.High-performance CPU
2.Full channel D1 real-time recording
3.Build-in free DDNS
4.Mobile Surveillance



Functions:
1. Support HDMI,TV,VGA simultaneously output
2. Support Simultaneously 16/8/4ch WD1 full real-time recording and network transmission, 8ch/4ch/2ch WD1 real-time playback,and 16/8/4ch CIF/QCIF sub-code stream
3. Standard H.264 video compresion
4. Zoom function in both preview and playback.
5. Support P2P function and 3G
6. Support UPNP function, built-in Dynamic DNS.
7. System supporting a variety of languages menu.
8. Support multi-code stream technology and mobile surveillance(Iphone, Sybian, Blackberry, Android Windows).
9. System adopt graphical operating interface, support USB mouse,wireless mouse,panel and remote control operation, 2SATA HDD and mobile HDD backup.
10. Support varied PTZ control protocol , and embedded web visiting ,support HTTP, SMTP, FTP, DDNS, DHCP, PPPOE, and NAT traversing .
11. Support SMTP, SSL ,mail alarm, support JPEG capture and post.
Parameters :
Model :3116WD13108WD13104WD1
USD14010779
Operation systemEmbedded LUNIX
System resourceSimultaneously 16/8/4ch WD1 full real time recording and network transmission, CIF/QCIF sub-code stream,1-8/1-8/1-4ch WD1 playback
Operation interfaceGraphical operating interface ,support mouse, panel and remote control operation
Video standardPAL,NTSC
Video compressionH.264
Audio compressionG.711
Record modeManual ,timing , alarm , motion detection record
Video searchTime , event , channel , log
Backup modeNetwork backup , USB backup , SATA backup
Video input16ch BNC8ch   BNC4ch BNC
Video output1ch BNC,1ch VGA,1ch HDMI
Audio input16ch RCA8ch RCA4ch RCA
Audio output1ch RCA
Monitoring qualityPAL:960x576(WD1);NTSC:960x480(WD1)
Playback qualityPAL:960x576(WD1);NTSC:960x480(WD1)
Motion detectionEach channel can set up single detection zones , and multistage sensitivity
Image display1,4,9,16 images1,4,9 images1,4 images
Video speedPAL:25 frames/second (adjustable )NTSC:30 frames/second (adjustable )
Video storageLocal HDD and network
Local playback8ch WD1 (real time)4ch WD1 (real time) 2ch WD1(real time)
Alarm input16ch8ch8ch
Alarm output3ch
PTZ controlRS485
HDD interface2 SATA
Network interface1 RJ45(10M/100M/1000M adjust-automatically Ethernet interface)
USB interface2 USB2.0 high-speed interface
Power supplyDC12V
Ax dimension360X260X60mm





                                                                                                                                                                                                                               Pictures For Your Reference:





16ch monitoring system webcam alarm system video recorder multi room -311616ch monitoring system webcam alarm system video recorder multi room -311616ch monitoring system webcam alarm system video recorder multi room -311616ch monitoring system webcam alarm system video recorder multi room -3116
