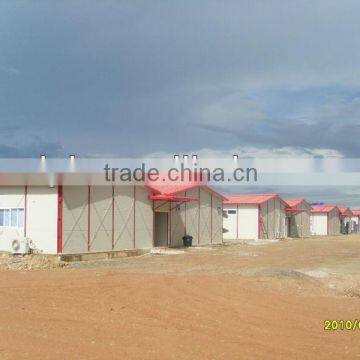

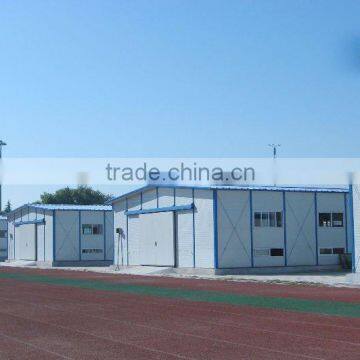

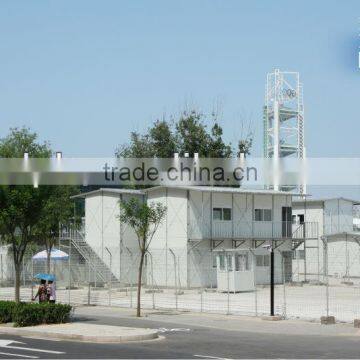

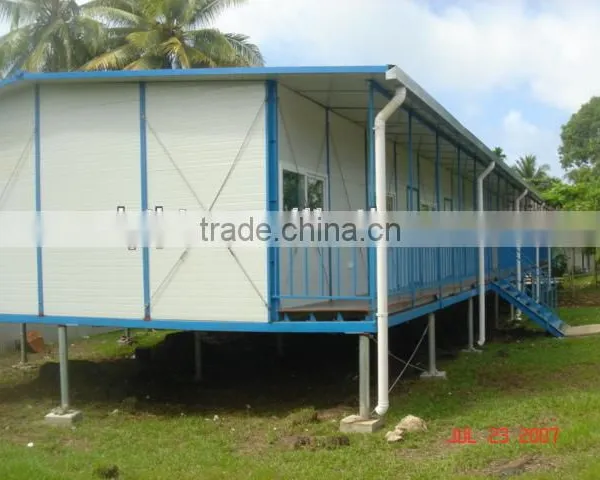

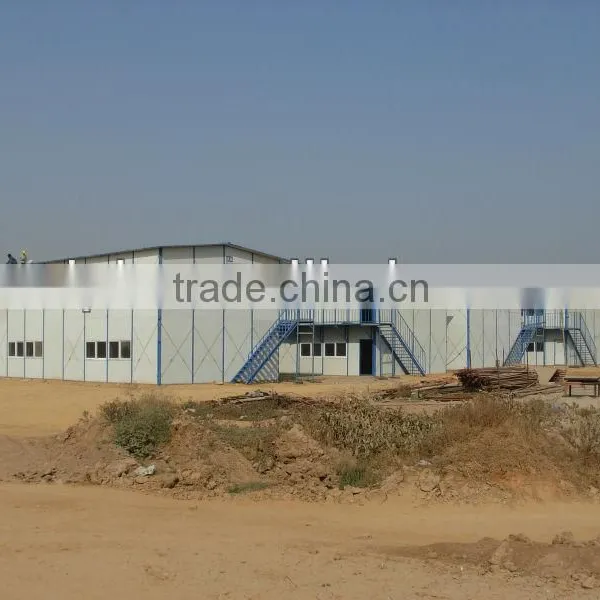

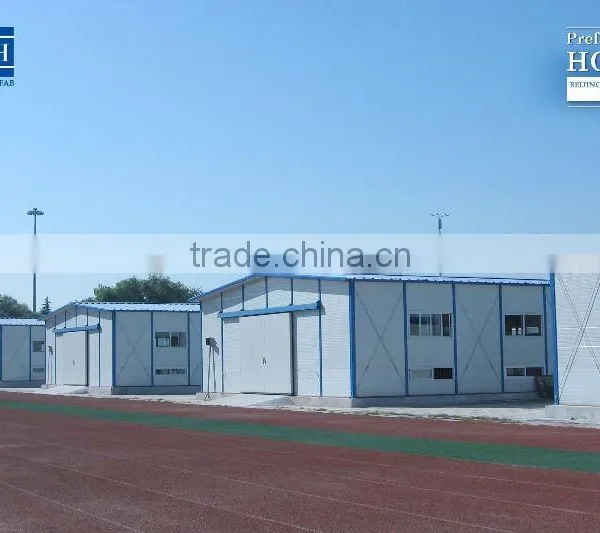

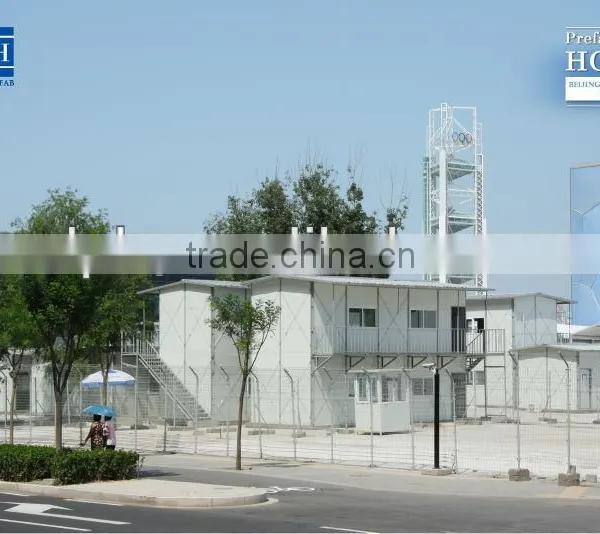

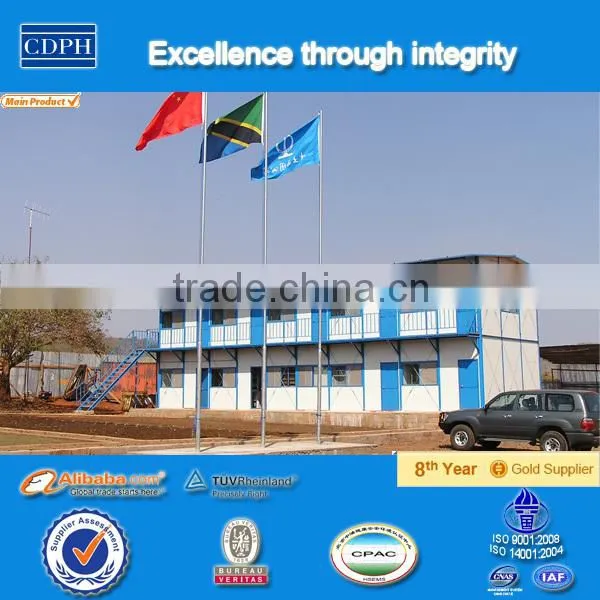

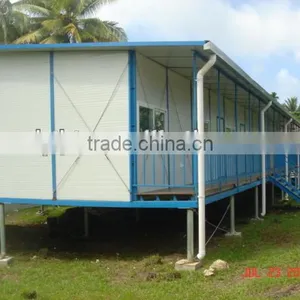

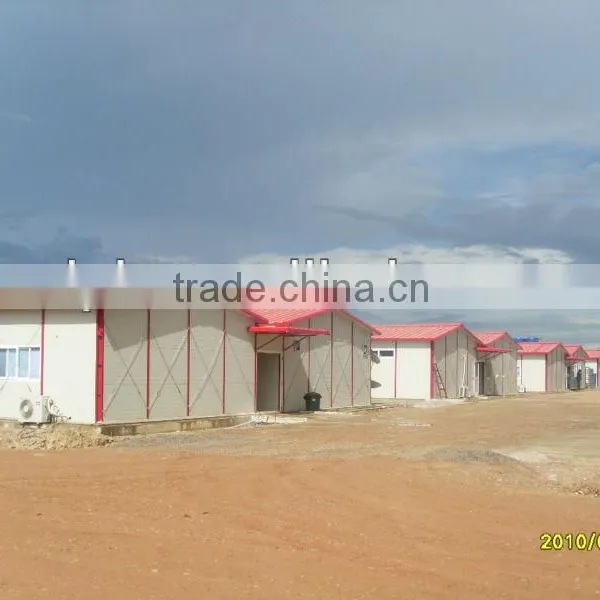

Site office (K type) is a standard mobile house model which can be designed as single storey or multistory. The inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 100m2 in 8 hours according to instruction and CD.
The detailed information as follows:
No. | Sort | Name | Specification | |
1 | Specification | length | NM+160(N=4,5,6... M is modular, 1M=1820mm) | |
2 | Width | NM+160(N=3,4,5... M is modular, 1M=1820mm) | ||
3 | Wall height | 5715mm | 8565mm | |
4 | Clear height | Ground floor :2425mm First floor :2685mm | Ground floor :2425mm First floor :2425mm Three floor:2685mm | |
6 | Standard accessory | Wall board | 50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/m².k. | |
7 | Roof board | 50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/m².k. | ||
8 | Door | SIP with steel frame, single door with dimensions of 955*2024mm, furnished with a cylinder lock with 3keys. Doorframe is made of 1.5mm steel, 50mm thick EPS insulation foam. | ||
9 | Window | PVC , white color, with dimensions of 1750*950mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. | ||
10 | Base beam | C style steel. material:Q235.Painted | ||
11 | Column | Double C style steel. material:Q235. modular pace: 1830mm. Painted | ||
12 | Floor beam | Parallel truss(C style steel). material:Q235 Painted | ||
13 | Floor purline | Gable truss(C style steel). material:Q235. Painted | ||
14 | Roof beam | Gable truss(C style steel). material:Q235.Painted | ||
15 | Roof purline | Gable truss(C style steel). material:Q235.Painted | ||
16 | Inclined brace | round steel, material:Q235. Galvanized and Painted | ||
17 | Stair | Steel stair, material: Q235. material:Q235.Painted | ||
18 | Tread | press steel board | ||
19 | Floor stab | 14mm plywood | ||
20 | Option | Elevated ceiling | Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel | |
22 | Decorative floor | PVC, laminated or ceramic tile | ||
23 | Drainage system | Provided plan, design and construction | ||
24 | Electric system | Provided plan, design and construction | ||
25 | Technical parameter | Bearing load | 50kg/m2 | |
26 | Wind pressure: | 0.6KN/M2 | 0.45KN/M2 | |
27 | Fire proof | B2 grade | ||
28 | Resistant temperature | -20ºC to 50ºC | ||
29 | The resistant earthquake grade | 7 fission activate. | ||
Production Capacity:
Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
Modular House | 100,000 m2 / Month | 620,000 m2 |
Export Market Distribution:
Market | Revenue(Previous Year) | Total Revenue (%) |
South America | confidential | 8.0 |
Southeast Asia | confidential | 12.0 |
Africa | confidential | 42.0 |
Oceania | confidential | 5.0 |
Mid East | confidential | 1.0 |
Eastern Asia | confidential | 3.0 |
Central America | confidential | 4.0 |
South Asia | confidential | 7.0 |
Domestic Market | confidential | 18.0 |
Production Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
Punching Machine | JB23-63A | 4 | 7.0 | Acceptable |
Sawing Machine | No Information | 4 | 7.0 | Acceptable |
Drilling Machine | ZQ4-16 | 13 | 3.0 | Acceptable |
Bending Machine | WC67Y, SCFHB-001 | 4 | 7.0 | Acceptable |
Shearing Machine | QC12Y-4*4000 | 2 | 7.0 | Acceptable |
Coreboard Production Line | No Information | 3 | 7.0 |
