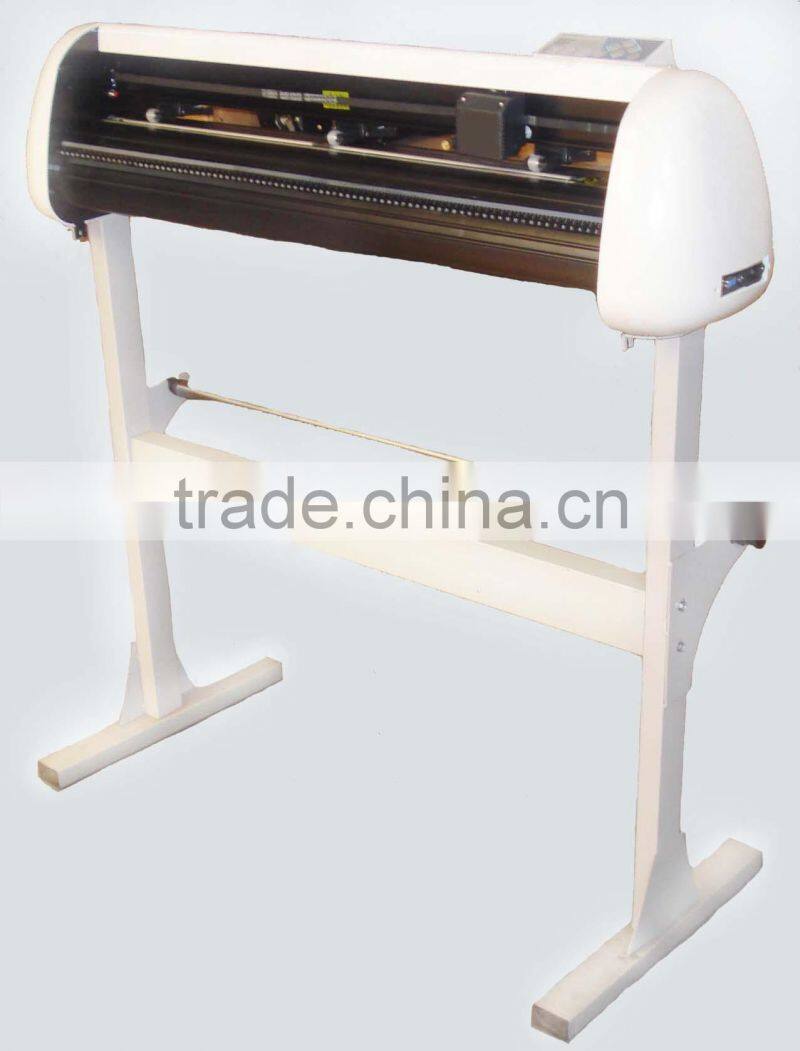

VINYL CUTTING PLOTTER XYZ-B-1120

Specifications

1adopts CPU of 16 bits
2advanced special electric circuit design
3main board more stable
4perfect output without saw tooth







XYZ Vinyl Cutting Plotter

1 More effective work: adopts CPU of 16 bits and advanced digital motor to support a high cutting speed of 720mm/s, strang cutting adjustable pressure and real cutter soft fall enable the machine to cut ultra thin and thick material.

2 Advanced system adopts CPU of 16 bits and special electric circuit design to make main board more stable, and can work at voltage 100-250 at any circumstances.

3 The perfect structure: advanced digital motor and linear path together with alloy paper feeding stalk system.

4 Easy operation: Big LCD screen and restoring cutting function which can save the file for repeating cutting and plotting later.

5 Software: cutting language: support dictate format to transmit directly from international software of Corldraw, AutoCAD and so on.



Features:

1) Forward direction and reverse direction paper feed
2) Emergency stop and free setting original point
3) Maximum speed of 500mm/s
4) Cutter speed and cutter pressure memory and storage
5) Double photoelectric reset and without any collision
6) Perfect output and without any saw tooth at high speed
7) Using the most advance subdivision circuit and having low noise
8) Using switching power supply and its operation that isn’t influenced by voltage change
9) Circuit uses low power consumption and doesn’t need fan for heat radiation so as to ensure long and reliable operation



Specification:

Type	B-720	B-800	B-960	B-1120	B-1360
Maximum paper feed width	28.4" 720mm	31.5" 800mm	37.8" 960mm	44.1" 1120mm	53.6" 1360mm
Real cutting range	24.8"(630mm)*limitless length	27.6" (720mm)*limitless length	33.9" (860mm)* limitless length	39.8"(1010mm)*limitless length	49.2"(1250mm)*limitless length
Cutting speed	0.98"/s-19.7"/s(25mm/s-500mm/s)
Cutter pressure	25-500g Grade 16~32
English LCD	With
Mechanical Resolution	0.001"/step(0.0254 mm/step)
Blade Type	Swivel Standard blade (Compatible with Roland blade)
Interfaces	USB 2.0 and RS232 serial interface
Commands/Language	HP-GL / DMPL compatible
Bracket	With
