Help CenterHeavy-duty Granite/stone Engraving Machine XYZ-1224
Related Products
-
Wood CNC Router XYZ-1224US$ 3,000 - 6,000MOQ: 1 Set -
Woodworking Cnc Router Table XYZ-1218US$ 3,000 - 6,000MOQ: 1 Set
-
Wood Milling Machine XYZ-1224US$ 3,000 - 6,000MOQ: 1 Set
-
Samll CNC Milling Machine XYZ-6090US$ 3,000 - 6,000MOQ: 1 Set
-
CNC Router for Metal XYZ6090US$ 3,000 - 6,000MOQ: 1 Set
Specifications
stone engraving machine1.CE,FDA,Gost-R,ISO
2.resume working after breaker or power off
3.spacial for hard materials

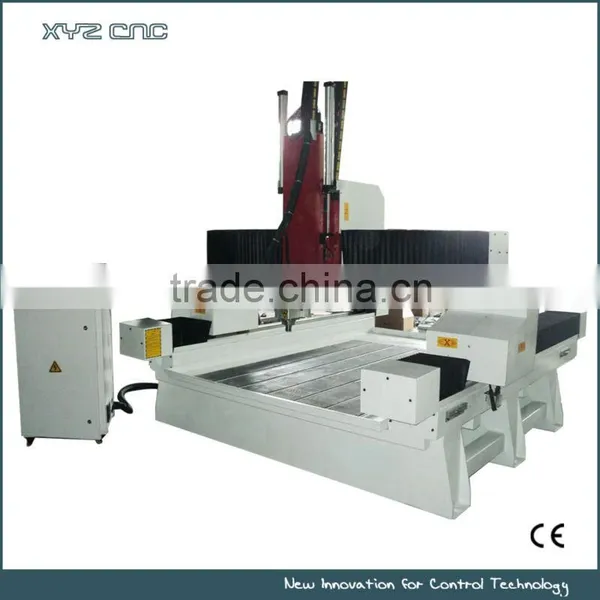

Heavy-duty Stone/Granite Engraving Machine XYZ-1224
Features:
Stone engraving machine
1.Strong welded tubular steel frame and gantry moving mode, suitably strengthened the rigidity that keeps stable and longtime work.
2. Y axis of CNC Router is equipped with double motors to keep stable moving.3. Powerful, cost-effective solutions for a wide variety of large-area applications including milling, drilling, contouring, and routing.
3. Gear transmission. Provide Positive Drive without slip, with high speed, high torque & high power.
4. Taiwan Hiwin square linear guide way with four-point contact design, enable to bear various direction loading, which can ensure better load handling, together with steady movement to provide better mechanical precision.
5. Original Imported Italian HSD spindle, original bearings. Air-cooling the motor, forceful, with high concentricity and verticality . Long service life, stable operation .
6. Taiwan Delta inverter, adjustable V/F curve and simple vector control, 16 big microprocessor controlled PWM output, automatic torque boost& slip compensation... low noise, highly ensure the spindle working ability.
7. Taiwan Delta/Japanese Panasonic/Yaskawa AC servo driving system for you to choose.Closed-loop circuitry . Efficient. Capable of accelerating loads. Little noise. Change to Stepper driving is also available .
8. DSP offline control system with advance USB interface which can ensure convenient and long-distance operating machine-off of computer.
Parameters:
stone engraving machine
No. |
Description |
Parameter |
1 |
X, Y, Z working area |
1200 X 2400 X 120 mm |
2 |
Table Size |
1380×2750mm |
3 |
Machine Bed Structure |
Welded Steel tube frame |
4 |
Bed type / Work Holding |
Heavy-duty bed |
5 |
X, Y ,Z Structure |
Ball screw transmission &Linear guide rail |
6 |
Resolution Working Accuracy |
±0.1mm |
7 |
Reposition Accuracy |
±0.01mm |
8 |
Spindle Type |
Chinese water cooling 3.0KW/4.5KW/6.0KW or |
9 |
Spindle Speed |
24000rpm |
10 |
Inverter |
Taiwan Delta inverter/Chinese Fuling |
11 |
Drive Motors |
Stepper /Servo system |
12 |
Max. Power (without spindle) |
2.0KW |
13 |
Max. Working Speed |
7000 mm/min |
14 |
Max. idling speed |
10000 mm/min |
15 |
Working Voltage |
AC220/50Hz |
16 |
Interface |
Windows PC with PCI-card |
17 |
Operating System |
NC-Studio PCI control |
18 |
Command Language |
G code, *.u00, *.mmg, *.plt/HPGL/NC |
19 |
Software |
Type3/Artcam |
20 |
Working Environment |
Temperature: 0-45°C, Humidity30% - 75% |
21 |
Packing Size |
3100x1900x1700mm |
22 |
N.W. |
1200kg |
23 |
G.W. |
1400kg |

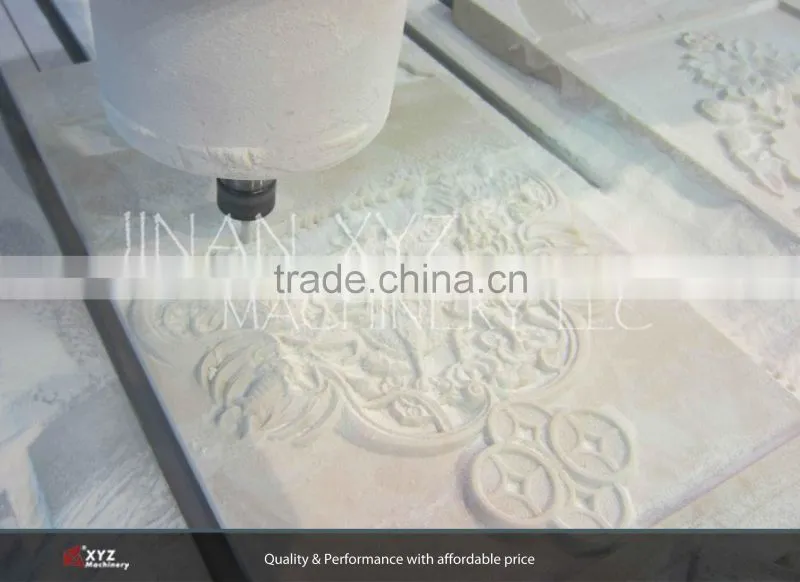

Stone engraving

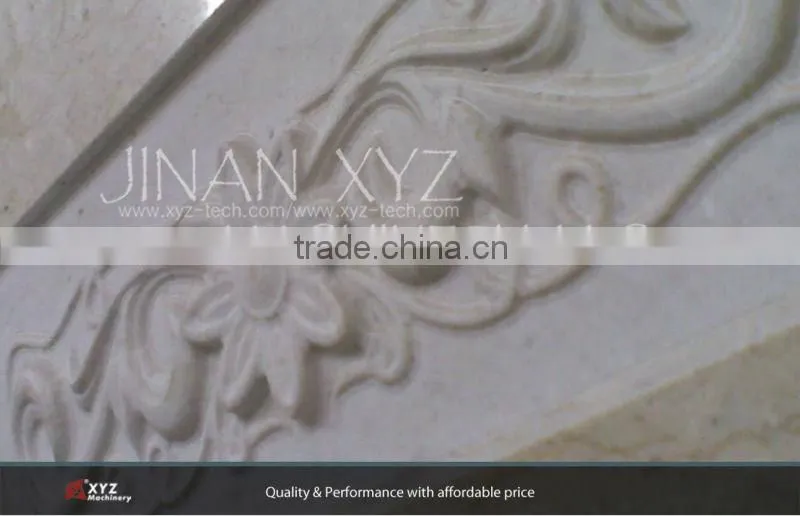

Marble engraving

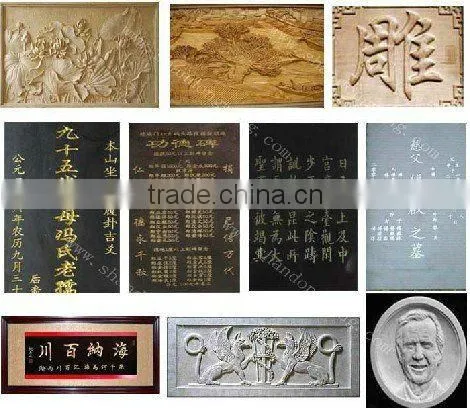

Stone Engraving Machine Applications:
Granite, marble, artificial stone, tombstone, milestone, ceramic tile, bluestone, sandstone and other stone carvings.
Granite and other hard stone carvings can be layered to 5mm
Marble, bluestone, etc. can be a sculpture to 5mm
Guarantee&Aftersales Service:
1 years guarantee from the date of commissioning
18 hour technical supports by email or calling
User-friendly English manual and Video CD for machine using and maintaining
Support on-site installation/training...
