Specifications
1ECONOMIC Machine,2High-efficiency, precision
3Competitive price but top quality
4Taiwan Syntec system
5Excellent service

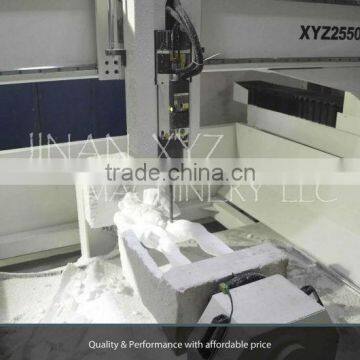

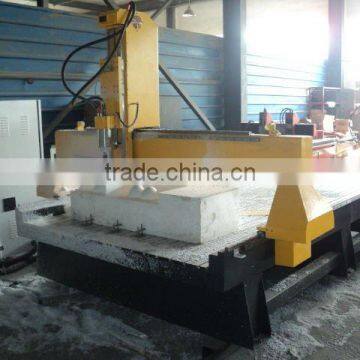

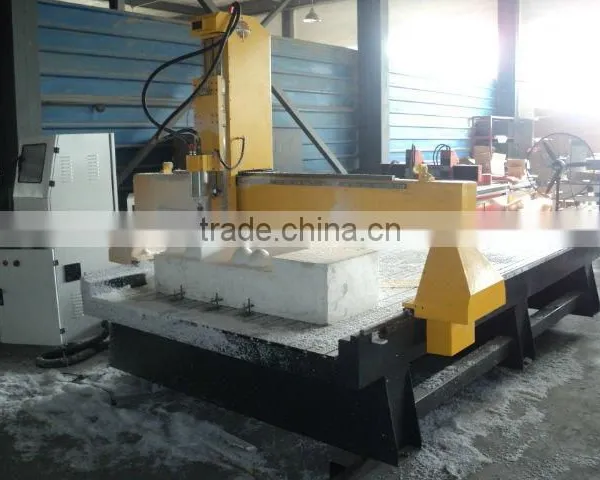

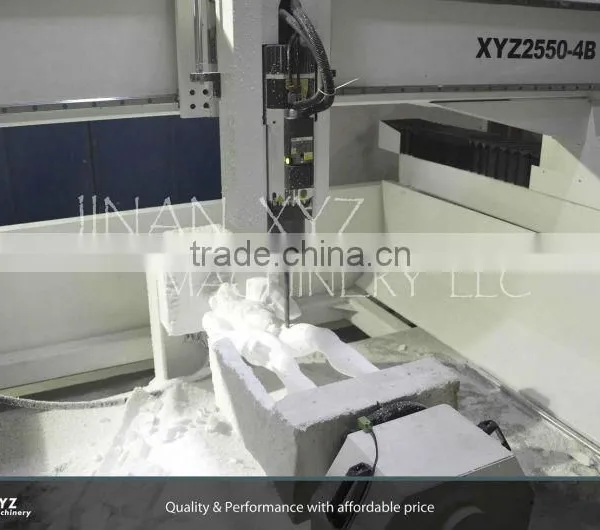

POLYFOAM CNC ROUTER XYZ-T-1325
Technical Parameter:
No. | Description | Parameter |
1 | X, Y and Z axis effective processing travel | 2500x4000x1100mm |
2 | Table size | 3100×4500mm |
3 | Distance from spindle nose to work table | 1150mm |
4 | taper hole of spindle | BT40 |
5 | Spindle Speed: | 0-24000RPM |
6 | Spindle motor | 9.0 kw Italian ATC Spindle |
7 | X axis Yaskawa servo motor(Japan) | 1.3kw |
8 | Y axis Yaskawa servo motor(Japan) | 1.3kw |
9 | Z axis Yaskawa servo motor(Japan) | 1.3kw |
10 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
11 | X,Y,Z repositioning Accuracy: | ±0.01mm |
12 | Table Surface | Milling steel table (T-slot) |
13 | Frame | Welded structure (cast iron) |
14 | X, Y Structure | Rack and Pinion Drive Taiwan Hiwin Rail Linear Bearings |
15 | Z Structure | Hiwin Rail Linear Bearings ,Ball Screw |
16 | Max. Rapid Travel Rate | 40000mm/min |
17 | Working Voltage: | AC380V/50/60Hz,3PH (Option: 220V)) |
18 | Operating System | SYNTEC control system(Taiwan) (Option: OSAI system made in UK) |
19 | Computer Interface | Ethernet |
20 | Flash Memory | 256 M(with CF card) |
21 | Collet |
|
22 | Software Compatibility | Type3, UcancameV9, ArtCAM software |
23 | Running Environment Temperature | 0degree - 45 degree |
24 | Packing Size | 2300X4800X1900mm (in parts) |
25 | Net weight | 6800KG |
26 | Gross weight | 7500KG |
27 | Guarantee | One year from the date of commission |
28 | Optional Parts | Dust collector Rotary system Mist-cooling system |
Applicable Industry:
1) Advertising industry
Suitable to process different various colorful plates and moulds, such as: advertisement plate, construction model, wooden handicraft, Display Board, aluminum product drilling and cutting, furniture decoration and etc.
2) Woodworking industry
Suitable to process various cabinet doors, solid wood doors, panel furniture, archaized furniture, it can also be used for engraving and cutting woody board in large volume, together with 3D embossment, shadow carving, and so on.
Applicable Material:
Wood, EPS and non-metallic carbon hybrid materials.
Our Advantage:
1) Scientific and sound business management
2) Strict quality control system and assurance measures
3) Professional research and development team and experienced workers

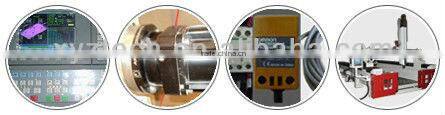

Machine Performance and Feature:
1) Imported Italian 9.0kw ATC HSD spindle, with fast processing speed
2) Yaskawa servo motor and drive(made in Japan), speed is fast, big torque
3) Use top-quality Taiwan Hinwin four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
4) The route of Z axis can be heightened to 700mm, so it is suitable for processing large-scale and super-thick material.
5) Taiwan Delta 11kw inverter, anti-interference ability is strong, big torque output, ensure smooth spindle motor, stable, high speed and safety operation.
6) Japan OMROM Limit Switch, repeat Location accuracy is high.
7) France Schneider Ac Contactor, Rated current big, ensure machine normal operation
8) Taiwan TBI high precison ball screw
9) The whole by oil lubrication, to make the machine maintenance simpler.
10) Table thickening electricity board vacuum adsorption, materials can be fixed more firmly.
11) Whole structure steel plate welding, gantry after eight hours aging tempering treatment, high strength, good stability, durable, can use for a long time without deformation
