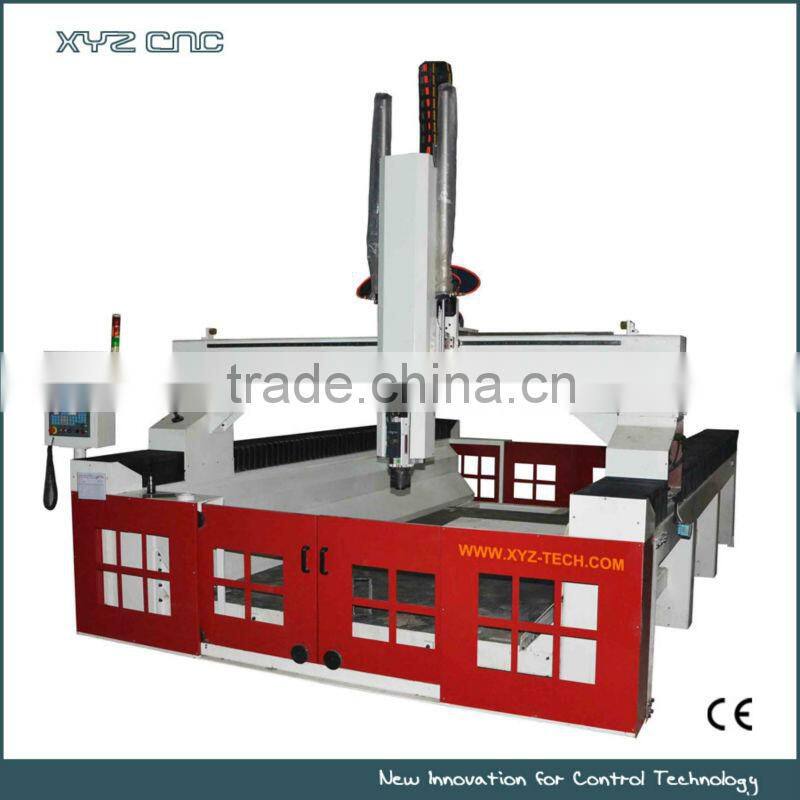

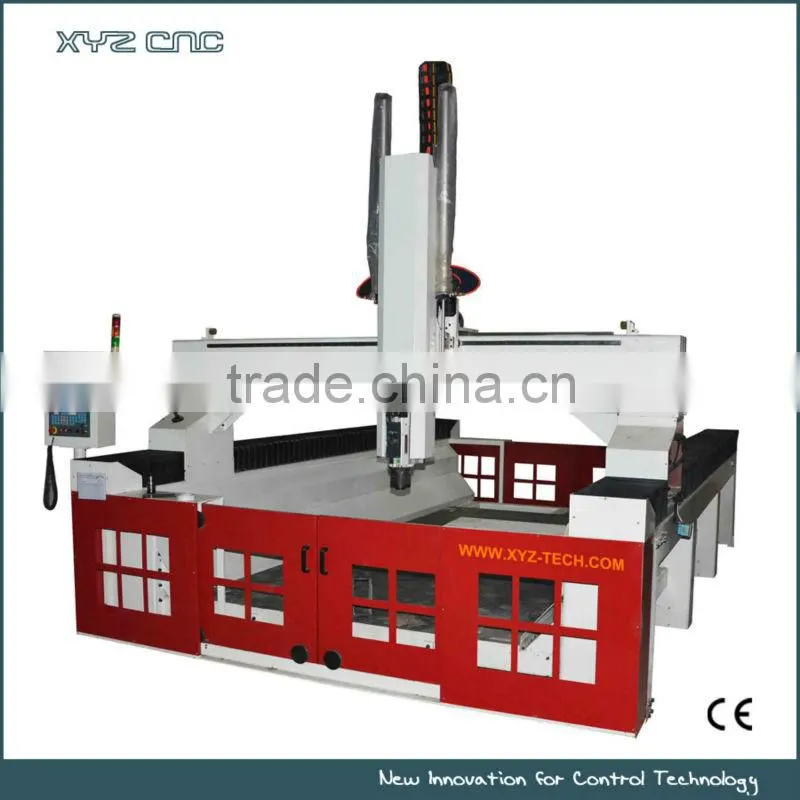

Foam/Wood/Plastic Mould Sculpture CNC Machining Center XYZ-2040
Features:
CNC Machining Center, both Heavy and light duty for client to choose, thicker welded tubular steel frame and high Z travel can be 1000mm. Especially for large-scale sculpture and non-metallic materials, such as wood, EPS, foam, carbon hybrid materials.
1.Control system Taiwan SYNTEC
2. Spindles Original Imported Italian HSD spindle, original bearings,Air-cooling.
3.Motor and drive Original Imported Japanese Yaskawa servo driven system (Panasonic/Delta servo as option).
4.Speed reducer Taiwan APEX speed reducer or Apacs reducers.
5.Transmission Taiwan Hiwin four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine.Germany Helical rack and pinion Transmission.
6. Electrical components France Schneider AC Contactor, Rated current big, ensures machine normal operation. /Japan OMRON Limit Switch. /High soft shielding twisted-pair cable is adopted to avoid breaking, and also to reduce the failure rate .
7.A powerful option! The 4th Axis (Rotary device 360°rotation) will offer a wonderful capability for creating full 3D carvings in a single piece instead of the part to part combining. SYNTEC EZ4 control system will be use to achieve the 4-axis linkage.
Parameters:
No. |
Description |
Parameter |
1 |
X, Y, Z working area |
2000x4000x1000mm |
2 |
Table Size |
2100×4500mm |
3 |
Machine Bed Structure |
Thick welded steel structure |
4 |
Bed type / Work Holding |
Milling steel table |
5 |
X, Y Structure |
Rack gear & Linear guide rail (Taiwan Hiwin) |
6 |
Z Structure |
Linear guide rail (Taiwan Hiwin )& Ball Screw |
7 |
Resolution Working Accuracy |
±0.4mm |
8 |
Reposition Accuracy |
±0.02mm |
9 |
Spindle Type |
9.0KW Italian HSD Spindle |
10 |
Spindle Speed |
24000rpm |
11 |
Inverter |
Taiwan Delta inverter |
12 |
Drive Motors |
Japanese YASKAWA servo system |
13 |
Max. Power (without spindle) |
6.0KW |
14 |
Max. Working Speed |
45,000 mm/min |
15 |
Max. idling speed |
25,000mm/min |
16 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
17 |
Interface |
USB port |
18 |
Operating System |
Taiwan SYNTEC control system |
19 |
Command Language |
G code, *.u00, *.mmg, *.plt/HPGL/NC |
20 |
Software |
Type3 /ArtCam/UcancameV9 |
21 |
Working Environment |
Temperature: 0-45°C, Humidity30% - 75% |
22 |
Packing Size |
2200X4800X1900mm (in parts) |
23 |
N.W. |
6500kg |
24 |
G.W. |
7200kg |
Application
Advertising industry
Is suitable to process different various colorful plates and mould, such as: advertisement plates, construction model, wooden handicraft, Display Boards, aluminum product drilling and cutting, furniture decoration and etc.
Woodworking industry
Is suitable to process various cabinet doors, solid wood doors, panel furniture, archaized furniture, it can also be used for engraving and cutting of woody boards in large volume, together with 3D embossment, shadow carving, and so on.
Wood, EPS and non-metallic carbon hybrid materials.

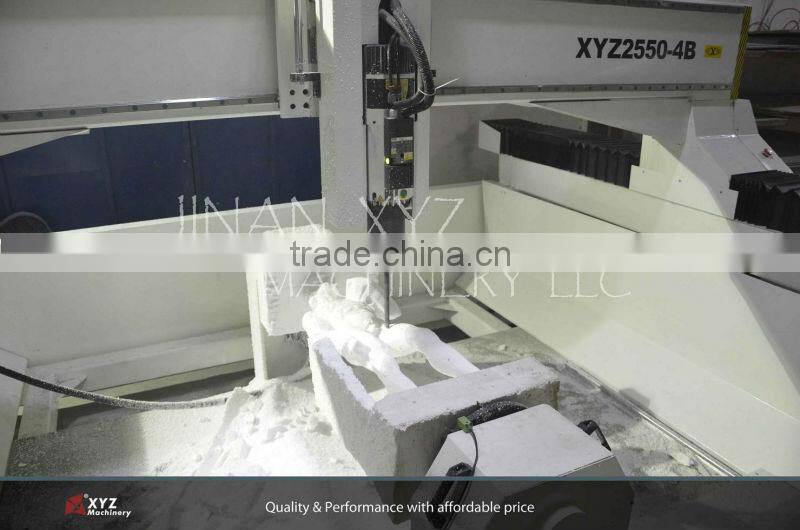

Show of CNC Machining center:
