3D Works 4 Axis Single Table Gantry Moving CNC Router Machining Center XYZ-CAM P4-1530

Specifications

4 Axis CNC Router
1. Angle head+C aixs
2. Horizontal machining
3. True 3D work/side milling/drilling.
4. Customize machine

3D Works 4 Axis Single Table Gantry Moving CNC Router Machine Center XYZ-CAM P4-1530

(Certificate: ISO,CE,GOST-R)





Product Description

4 Axis CNC Router for 3D Mould/Model industry:

1) Italian-made spindle & Angle head + Axis

2) Auto tool changing with Carousel Magazine

3) Advanced 4 Axis controller system

4) 1.3KW YASKAWA SERVO with planetary reduction gears





Standard Models of   3D Works 4 Axis Single Table Gantry Moving CNC Router Machine Center XYZ-CAM P4-1530



Belief Introduction of  3D Works 4 Axis Single Table Gantry Moving CNC Router Machine Center XYZ-CAM P4-1530

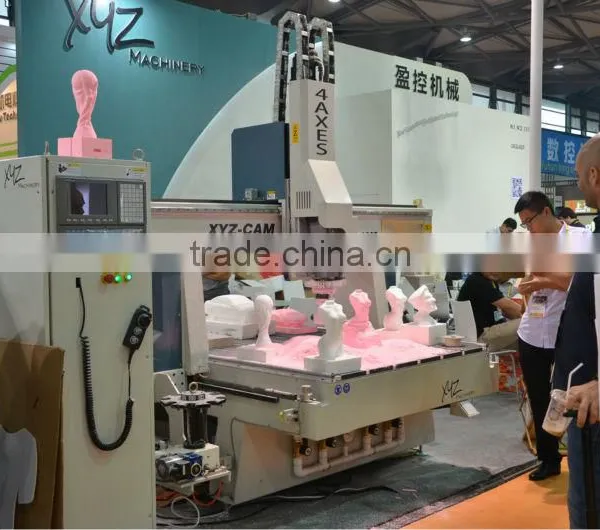

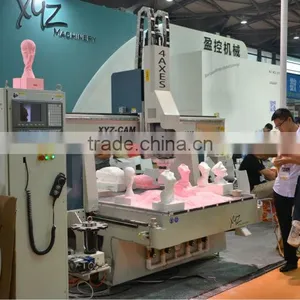

1.XYZ-CAM-P4-1325 CNC router , incorporate with a 9.5kw Italian-made ATC spindle and 90° angle head with C Axis, it is a combination for both three axis vertical machining and the horizontal machining by C Axis (4th Axis). The machine is capable to finish a true 3D structure in a single setup. The ideal material for this machine including foam, wood, plastics, composite resin….



2. With Precision machined & heavy duty frame, stress relieved in a rigorous thermal treatment, hence, the P4 4 Axis CNC is allows a 500-1000mm large Z travel, and offers accurate and smooth machining effect without vibration.

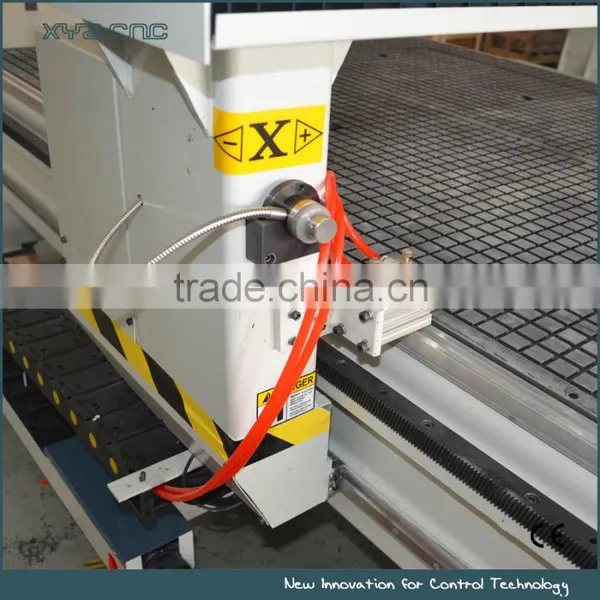

3. Motion by helical rack and gear on X and Y, imported high-precision ball screw on Z Axis, which moving smoothly, to ensure the machine’s high precision.



4. High-performance Japanese Yaskawa servo system with planetary gear reducers to ensure the machine’s high speed and accuracy.



5. Advance 4 Axis control system, auto-complete multilevel 3D processing, carving or cutting. Meanwhile, offline operation can be realized.



6. Original industrial standard HSK tool holders, Taiwan made Carousel tool magazine with 8 positions plus T9 the angle head position.



7. Standard configuring with auto lubrication system, automatic tool setting system.



8. Top quality accessories, to minimize the machine’s failure rate,Well-known electrical parts Schneider, Omron, Honeywell, etc., Pneumatic components Taiwan AirTAC.





Applicable Industries of 3D Works 4 Axis Single Table Gantry Moving CNC Router Machine Center XYZ-CAM P4-1530



The machine is capable to finish a true 3D structure in a single setup. The ideal material for this machine including foam, wood, plastics, composite resin…. 3D models, moulds, animated advertising and decorative elements, theme parks, Arcade Games

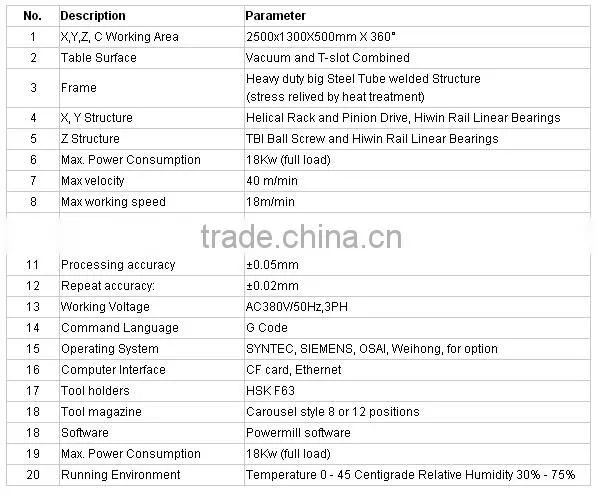

Technical Parameters of 3D 3D Works 4 Axis Single Table Gantry Moving CNC Router Machine Center XYZ-CAM P4-1530



Packaging & Shipping



Long Term Cooperated shipping forwarder to offer shipment.

Standard export package, custom suffocating free.



Our Services



Engineers available to service machinery overseas…

Remote assistance, support online, by call, by video, by e-mail...



Company Information



Jinan XYZ Machinery LLC has been manufacturing CNC Router and laser machines over 10 years.With the constant technical innovation, we have developed CNC machines- the XYZ series CNC Router under XYZ-CAM, XYZ-S, XYZ-V brands, and Laser cutting/engraving machines under YKL, EXLAS, and XYZL brands.

We are proud to be supplying now over 100 countries worldwide and many other regions around the globe. Customers purchase with confidence due to our unique and innovative designs. Each machine is produced in house by qualified technicians and a well trained staff to serve your needs, all delivered on a timely basis with pride.
