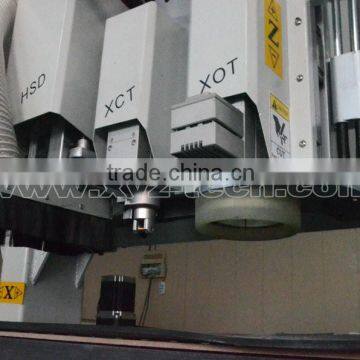

CNC Fabric Cutting Machine CNC Router Oscillating Tangential Knife (XOT) XYZ-CAM-P3-1325

XYZ-CAM-P3 CNC KNIFE Oscillating Tangential Knife (XOT) for soft material, semi rigid materials, such as sealing material, corrugated/cardboard, rigid foam panels, carpet, and cork...heavier, thicker and harder material processing, like rubber, mat board, aluminium composite material ,duct liner, PVC...

CNC combination for both hard and soft material, XYZ-CAM dual processing with spindle plus Oscillating Tangential Knife (XOT)!

Standard models of  CNC Fabric Cutting Machine CNC Router Oscillating Tangential Knife (XOT)

 We can also customize many kinds of CNC machines as customer's special requirements, such as large-size CNC machines, multi-axis CNC machines, multi-gantry CNC machines, high Z clearance CNC machines, automatic feeding functions, etc.

Belief introduction of CNC Fabric Cutting Machine CNC Router CNC KNIFE Oscillating Tangential Knife (XOT)

1. The XYZ-CAM-P3 Oscillating Tangential Knife XOT is designed for cutting various materials. While a powerful oscillation being delivered, the blade is cycling in an up and down motion at high speeds, not just a fixed blade knife cutting action. And combing with a robust tangential cutting motion which will lift and rotate on all sharp corners automatically, resulting as a fully straight cut.

Thus, the cutting blade delivers a precise and fine cutting quickly even stronger and thicker materials...A wide range of cutting blades can be fitted, with specialized shaped to accomplish different tasks, including creasing, drag, kiss cut, spear and many more.

2. CNC combination for both hard and soft material, XYZ-CAM dual processing with Italian-made air cooling spindle plus Germany – made Oscillating Tangential Knife (XOT)

3. With Precision machined & heavy duty frame, stress relieved in a rigorous thermal treatment, heavy duty steel gantry and rigid guidance design.

4. Motion by helical rack and gear on X and Y, imported high-precision ball screw on Z Axis, which moving smoothly, to ensure the machine’s high precision.

5. High-performance Japanese Yaskawa servo system with planetary gear reducers to ensure the machine’s high speed and accuracy. Stepper motor + planetary gear reducers for option.

6. Advance PC-based control system, highly efficient interpolation algorithm, hand-held MPG pulse generator.

7. Standard configuring with auto lubrication system, automatic tool setting system.

8. Top quality accessories, to minimize the machine’s failure rate, Well-known electrical parts Schneider, Omron, Honeywell, etc., Pneumatic components Taiwan AirTAC.

Applicable Industry of  CNC Fabric Cutting Machine CNC Router CNC KNIFE Oscillating Tangential Knife (XOT)

This kind of CNC knife provides a great many of application, including semi rigid materials in multiple layers, such as sealing material, corrugated/cardboard, rigid foam panels, carpet, and cork...heavier, thicker and harder material processing, like rubber, mat board, aluminium composite material ,duct liner, PVC...

Technical Parameters of  CNC Fabric Cutting Machine CNC Router CNC KNIFE Oscillating Tangential Knife (XOT)

Packing& Shipment

Long Term Cooperated shipping forwarder to offer shipment.

Standard export package, custom suffocating free.

Service

Engineers available to service machinery overseas…

Remote assistance, support online, by call, by video, by e-mail…

About US

Jinan XYZ Machinery LLC has been manufacturing CNC Router and laser machines over 10 years.

With the constant technical innovation, we have developed CNC machines- the XYZ series CNC Router under XYZ-CAM, XYZ-S, XYZ-V brands, and Laser cutting/engraving machines under YKL, EXLAS, and XYZL brands.

We are proud to be supplying now over 100 countries worldwide and many other regions around the globe. Customers purchase with confidence due to our unique and innovative designs. Each machine is produced in house by qualified technicians and a well trained staff to serve your needs, all delivered on a timely basis with pride.
