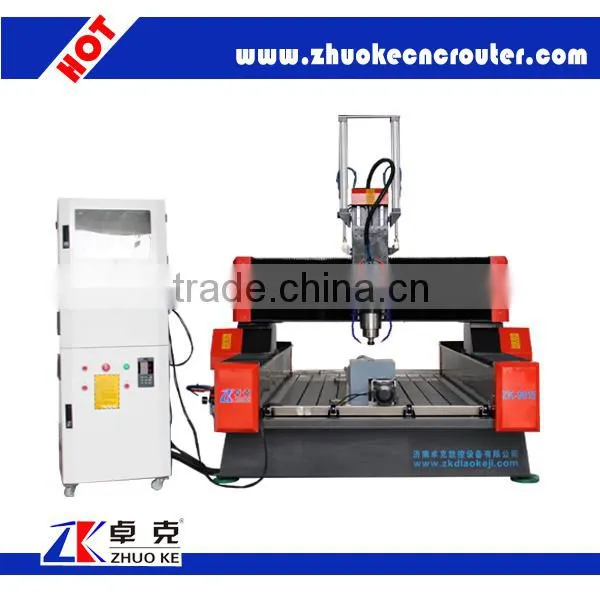

High Accuracy 4 Axis CNC Engraver For Marble Crystal Sand Stone ZK-9015 With PCI NcStudio Control System
Technical Data:
Effective working area |
900(X)mm*1500(Y)mm*300(Z)mm |
Max.thickness of the materials |
≤300mm(the distance between Z-axis and the bottom of the working station) |
Materials |
Cast iron machine bed, cast transom and vertical shafts. |
Waterproof/dustproof system |
For X Y Z-axis |
Water cooling system |
Stainless steel water slot |
Guide rail |
Linear square guide rail |
Transmission |
Rack and pinion for X Z-axis, ball screw for Z-axis |
Driving mode |
Hybird servo motor |
Spindle motor |
5.5kw water cooling |
Spindle speed |
0-24000rpm/min |
Empty traveling speed |
0-18000mm/min |
Engraving speed |
0-9000mm/min |
Machine accuracy |
0.03mm |
Control system |
PCI NcStudio |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
Software environment |
Windows 2000 / XP/7 |
Applicable Industries:
Suitable for stone materials, tombstone proessing, artistic relief, advertising & decoration, artware industry,etc
Applicable Materials:
Marble, granite, blue stone, sand stone, tile, glass, crystal, artificial stone, tombstone, mile stone, jade, etc, also can for the woodworking materials, metal, adveritising materials processing.

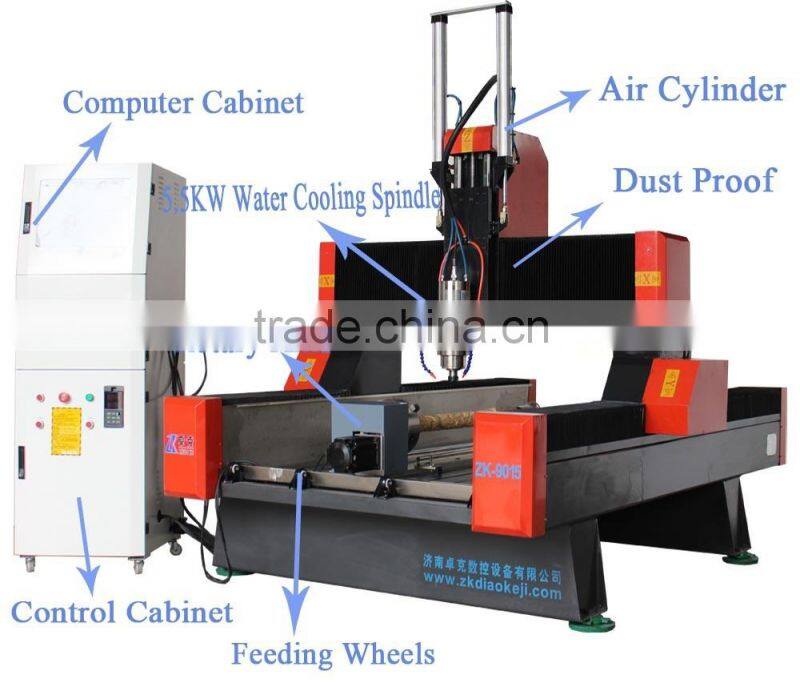

Machine Characters:
1.Seamless square steel tube welding for the whole machine, good rigidity, not easy to deformation, T type heavy duty machine structure, good weight bearing capacity, high stability, can bearting the more than 1000kg materials.
2. Adpoting the Taiwan linear square guide rail, double row four columns, large loading capacity, sable operation, higher precision.
3. Hybird servo motor and driver for XYZ-axis, more powerful, good performance, high precision, low noise.
4. Big power 5.5kw water cooling spindle, greating cutting indensity, high efficiency, lowe noise.
5.The special designed Zaxis structure, increasing the stone relief precision effectively, making the ball screw broken of Z-axis failure rate to the lowest.
6. Using the high precision rack and pinion transmission, higher precision, fast speed and powerful.
7.Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.
8.Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time, getting the more better engraving effect.
9.Continuing working after the break point/power failure, lower the rejection rate.
10.Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software 2D/3D processing, more convenient to using.
11. Optional control system: NcStudio or DSP or Mach3....
12. Feeding wheel helping to load the heavy maerials, more convenient.

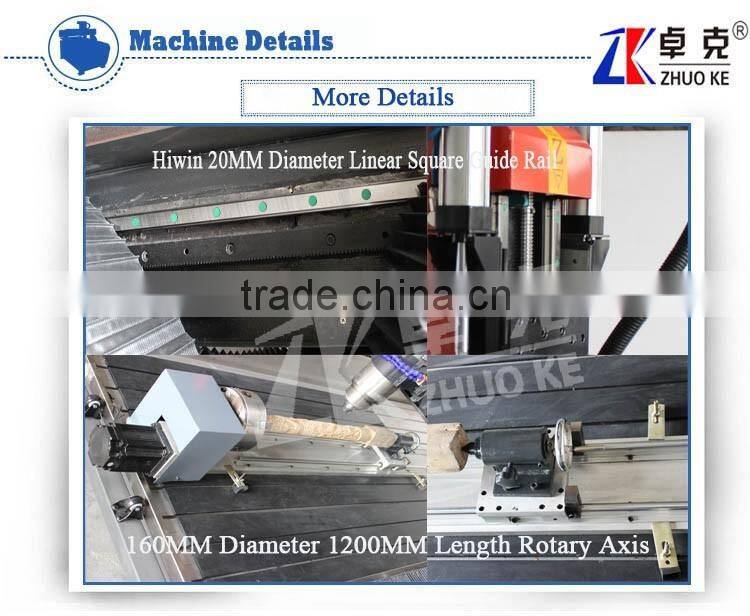

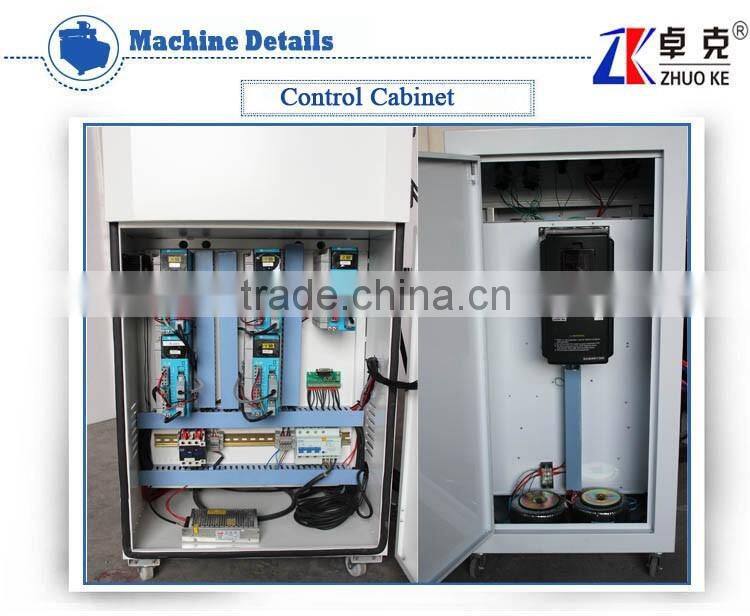

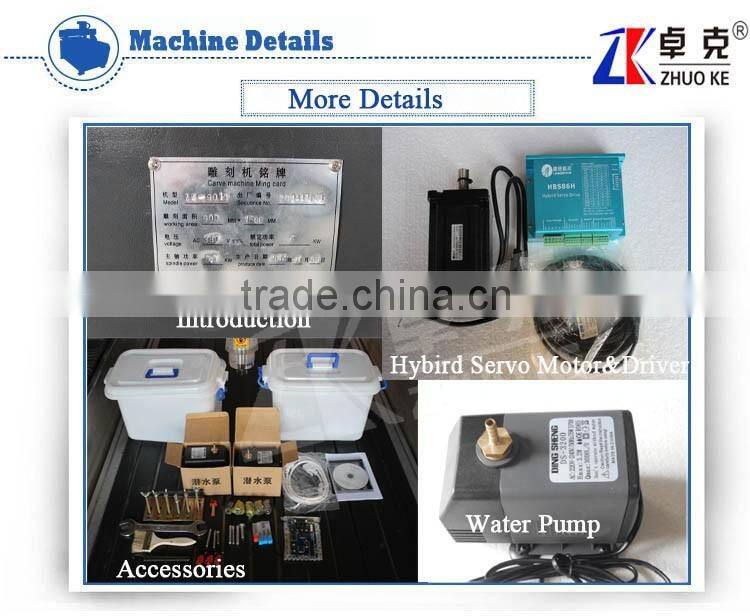

Machine Details:
Working Samples:
