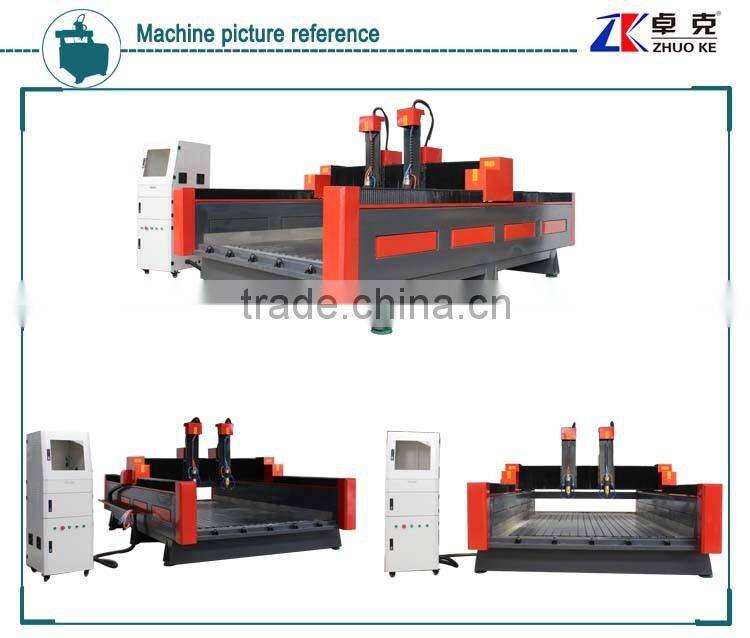

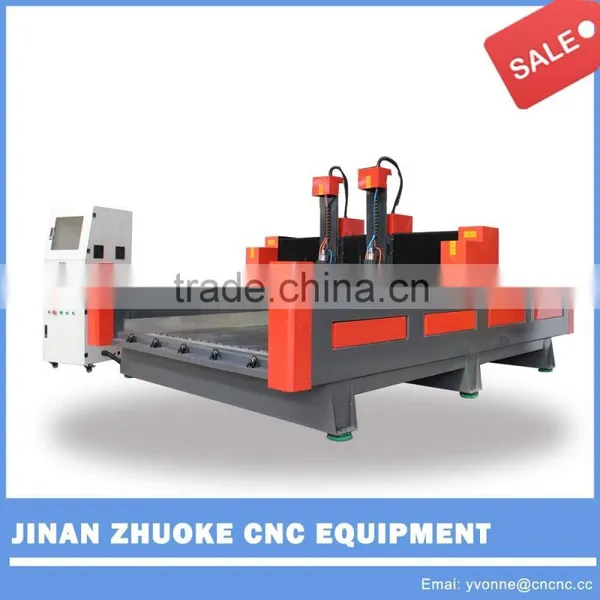

Z 500mm two heads cnc router stone cutter for marble granite ZK-1530 1500*3000mm
|

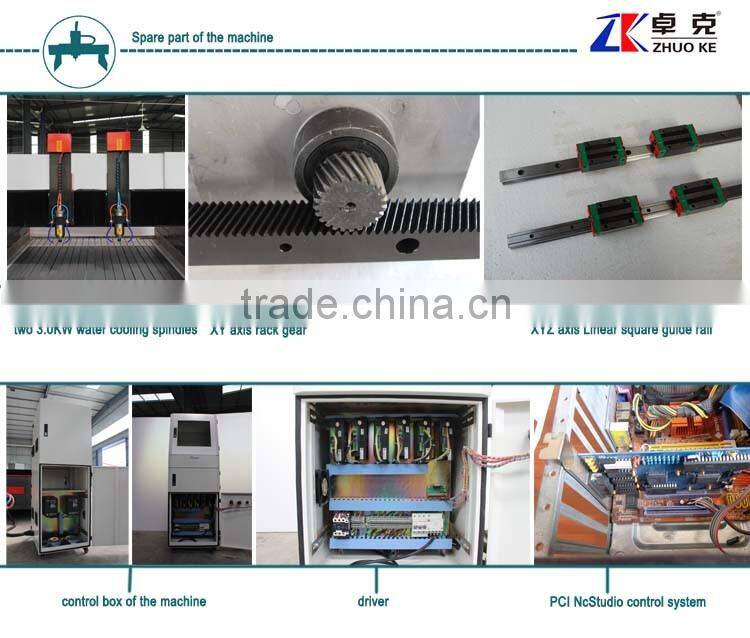

1. Linear square guide rail for X Y Z-axis and rack transmission, high precision and long life time.
Optional items: 1.Control system: NCStudio control system: more stable, working proceed visionble, suitable for desktop computer with PCI slot DSP offline control system.
2.Air cylinder on Z axis to hold the heavy spindle. Make machine accuracy higher.
3.air cooling spindle |
Machine parameter
Items |
Basic configuration |
Certificate |
CE |
XY-axis working area |
1500*3000mm |
Material |
Welded steel pipe machine holder and machine bed, cast iron vertical shafts and transom |
Moving way |
Gantry moving |
Working table |
Aircraft aluminum with T slot |
Guide way |
XYZ-axis linear square guide rail |
Driving mode |
XY rack gear, Z ballscrew |
Z-axis working area |
500mm |
Max traveling speed |
24000mm/min |
Engraving speed |
18000mm/min |
Mechanical precision |
0.05mm |
Driving method |
Stepper motor(XYZ:86BYGH450A) |
Water cooling system |
Stainless steel water slot |
Spindle |
2 pcs 3.2KW water cooling spindle |
Spindle speed |
0-24000rpm |
Collet type |
ER25 |
Tools diameter |
3.175mm, 4mm, 6mm,8mm,10mm,12.7mm |
Control system |
NCStudio control system |
Design software when delivery |
Artcam |
Compatible design software |
Artcam, Type3, Ucancam, JDPaint, MasterCAM |
Command |
G code ,U00, mmg nc,etc |
Running ambient temperature |
0-45℃ |
Relative humidity |
30%-75% |
Voltage |
AC 380V,50/60Hz, three single phase |
Auto tool calibration |
For Z-axis |
Tools |
12 pcs for stone |
