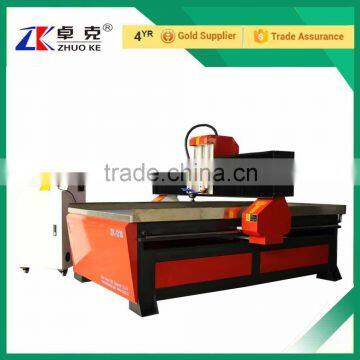

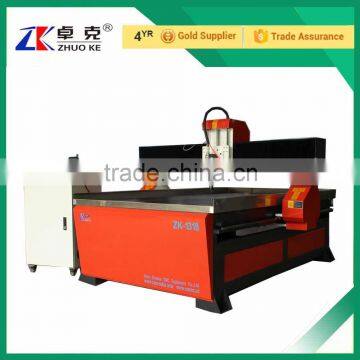

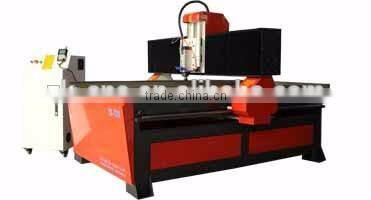

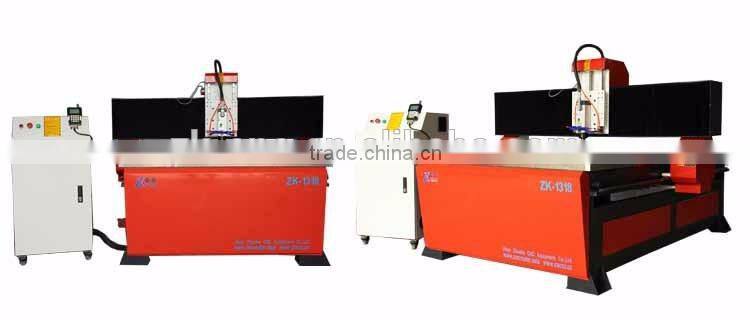

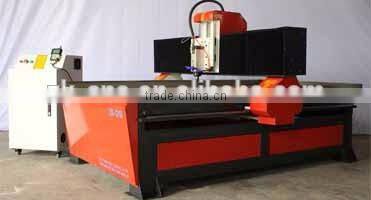

Ball Screw Transmission Stone CNC Engraving Machine ZK-1318 With 300MM Z-Axis YASKAWA Servo Motor DSP Offline Controller

Jinan Zhuoke CNC Equipment Co., Ltd.
Ball Screw Transmission Stone CNC Engraving Machine ZK-1318 With 300MM Z-Axis YASKAWA Servo Motor DSP Offline Controller thumbnail-1
Ball Screw Transmission Stone CNC Engraving Machine ZK-1318 With 300MM Z-Axis YASKAWA Servo Motor DSP Offline Controller thumbnail-2
Ball Screw Transmission Stone CNC Engraving Machine ZK-1318 With 300MM Z-Axis YASKAWA Servo Motor DSP Offline Controller thumbnail-3
Ball Screw Transmission Stone CNC Engraving Machine ZK-1318 With 300MM Z-Axis YASKAWA Servo Motor DSP Offline Controller photo-1
Ball Screw Transmission Stone CNC Engraving Machine ZK-1318 With 300MM Z-Axis YASKAWA Servo Motor DSP Offline Controller photo-2
Ball Screw Transmission Stone CNC Engraving Machine ZK-1318 With 300MM Z-Axis YASKAWA Servo Motor DSP Offline Controller photo-3
US$ 4,500 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
CNC Router
Use:
Marble
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Guangzhou or according to your need
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type CNC Router
Use Marble
Production Capacity High
Place of Origin Shandong, China
Brand Name Zhuoke
Model Number ZK-1318
Voltage 220/380V or according to your need, AC 380v 50/60Hz three phase
Power(W) 3KW air cooling
Dimension(L*W*H) 270*205*140cm
Weight 1400KG
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Applicable Industries:
Suitable for stone materials, tombstone proessing, artistic relief, advertising & decoration, artware industry,etc
Applicable Materials:
Marble, granite, blue stone, sand stone, tile, glass, crystal, artificial stone, tombstone, mile stone, jade, etc, also can for the woodworking materials, metal, adveritising materials processing.

Model
ZK-1318
Working size
1300*1800*300mm
Materials
Cast iron
Working table
Aircraft aluminum T slot
Water cooling system
Stainless steel water slot
Moving type
Gantry moving
Guide way
Linear square gudie rail(Hiwin, Taiwan)
Transmission
Ball screw for XYZ-axis
Driving mode
YASKAWA servo motor
Spindle motor
3KW air cooling
Collet type
ER25
Suitable tools diameter
3.175/4/6/8/10/12.7mm
Voltage
380V ,50/60Hz ,three phase
Spindle speed
0-18000rpm/min
Empty traveling speed
0-18000mm/min
Engraving speed
0-9000mm/min
Machine accuracy
0.03mm
Resetting accuracy
0.05mm
Diagonal error
0.5mm
Control system
DSP Offline
Carving Instructions
G code *U00*mmg *plt HPGL
Design software
Artcam 2008
Running environment temperature
0-45
Relative humidity
30%-75%

Main Features

1.Seamless square steel tube welding for the whole machine, good rigidity, not easy to deformation, T type heavy duty machine structure, good weight bearing capacity, high stability, can bearting the more than 1000kg materials.
2. Adpoting the Taiwan linear square guide rail, double row four columns, large loading capacity, sable operation, higher precision.
3. Servo motor and driver for XYZ-axis, more powerful, good performance, high precision, low noise.
4. Big power spindle, greating cutting indensity, high efficiency, lowe noise.

5.The special designed Zaxis structure, increasing the stone relief precision effectively, making the ball screw broken of Z-axis failure rate to the lowest.
6. Using the high precision rack and pinion transmission, higher precision, fast speed and powerful.
7.Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.
8.Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time, getting the more better engraving effect.
9.Continuing working after the break point/power failure, lower the rejection rate.
10.Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software 2D/3D processing, more convenient to using.
11.Optional control system, NcStudio/DSP/Mach3, high efficiency, easy to learn.

Certifications
Detailed Images

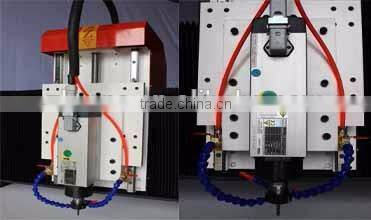

Spindle

3KW Italy HSD air cooling spindle, high quality and high accuracy, suitable price, low noise, low mistake rate.

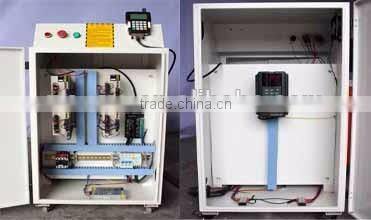

Control cabinet

YAKAWA servo motor and driver, best quality,high accuracy,fast speed.
DSP offline: when working no need computer, more convenient and easy to operate

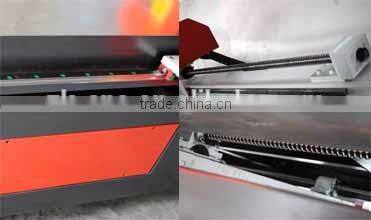

Guide way&Transmission

Taiwan Hiwin linear square guide rail, large loading capacity, sable operation, higher precision
Ball screw transmission for XYZ-Axis, precision segmentation, to achieve the high precision engraving.

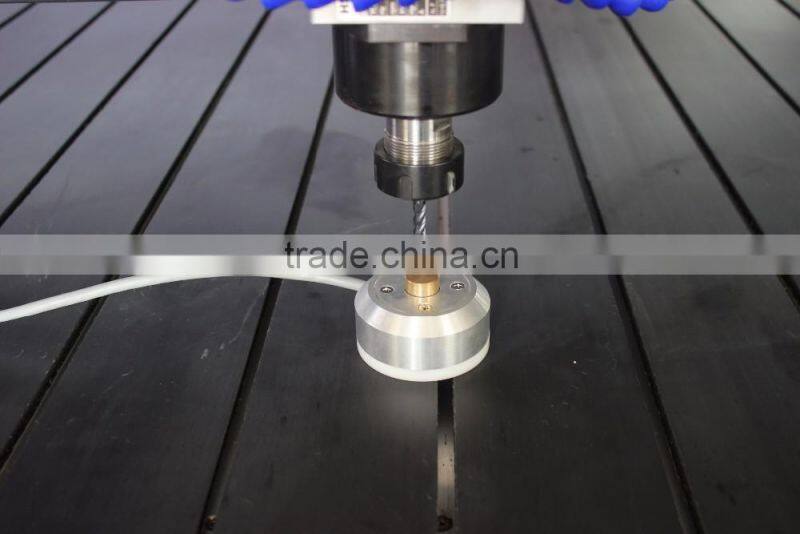

Auto tool calibration

For Z-axis, help you set the tools, not break the tool nose, ensuring the workpiece high precision processing

.

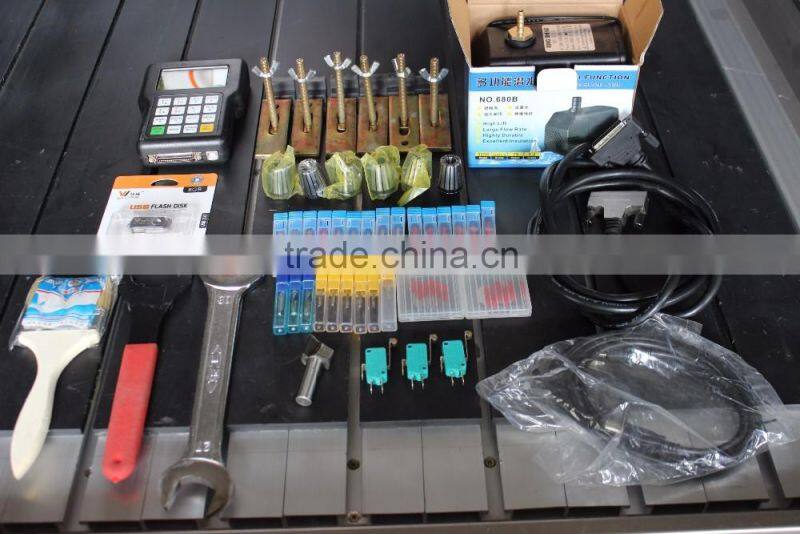

Accessories

Water pump
Data line
DSP hand shake
Spanner
Brush
Tools
Jigs
Collet
Limited switch


Our Service

Pre-Sales Service:

1.Offer us a call, even cooperate with us or not, you may get unexpected harvest.


2.We could discuss the future development of this line together accroding to many years' experience in selling and producing which could help to enlarge the profits and improvement for both of us.Studying customers' requirement carefully.


3.we could help clients to choose the best suitable machine andalso will offer you the relative samples and suggestions promptly and consinderately to customer's production scale and technical requirement.


After-Sales Service:

1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.

2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.

3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free

4, We will offer software upfrades for free.

5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.

6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.

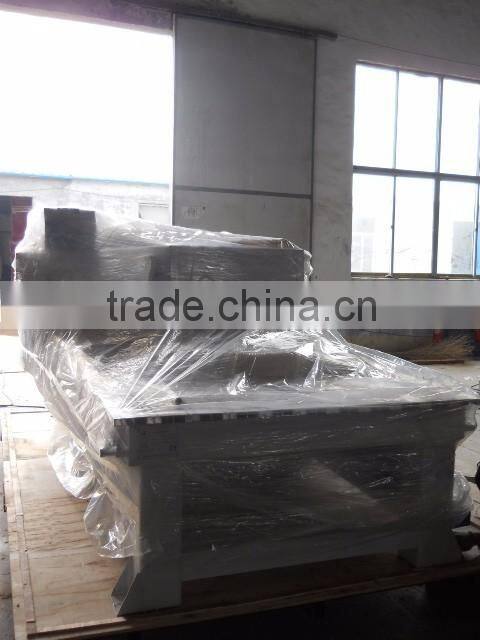

Packing & Delivery

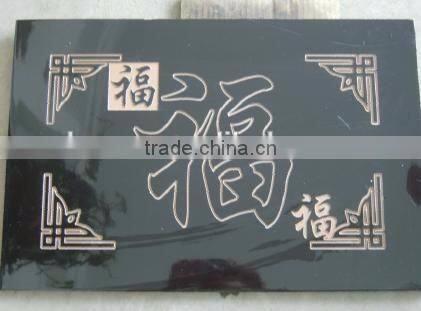

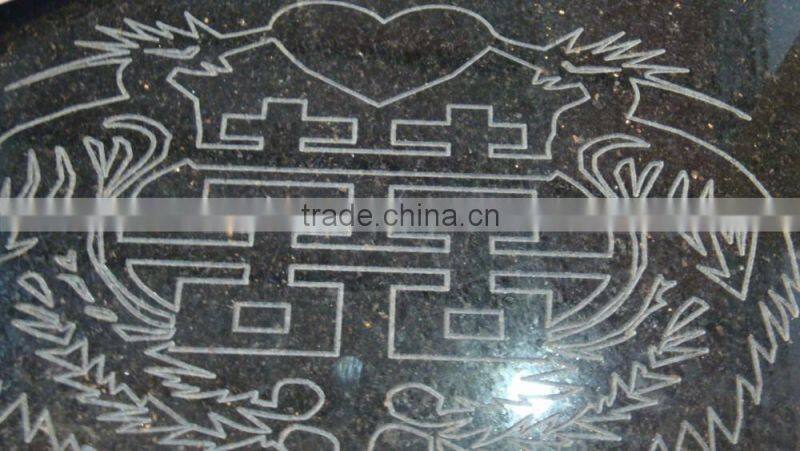

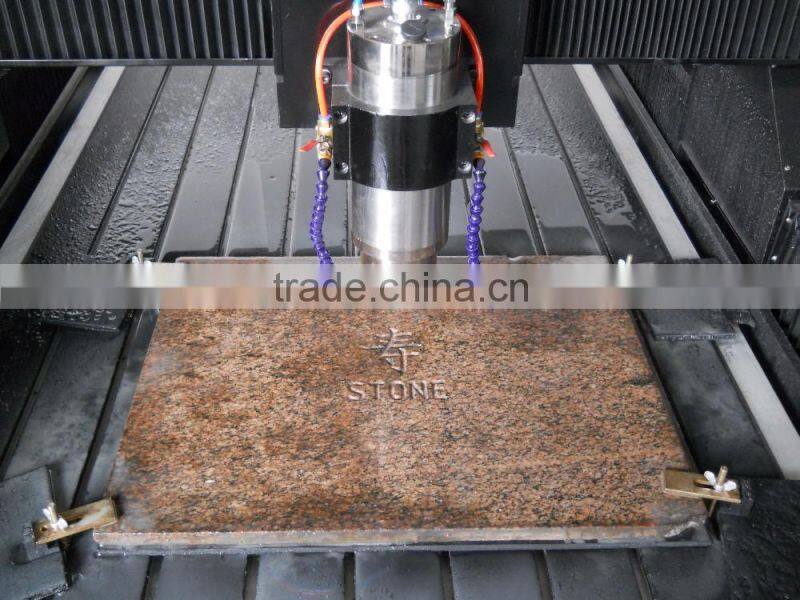

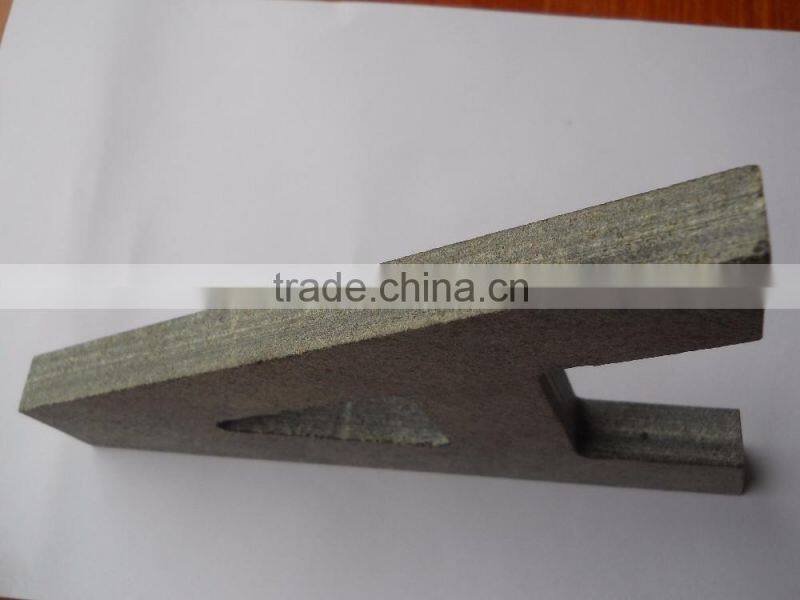

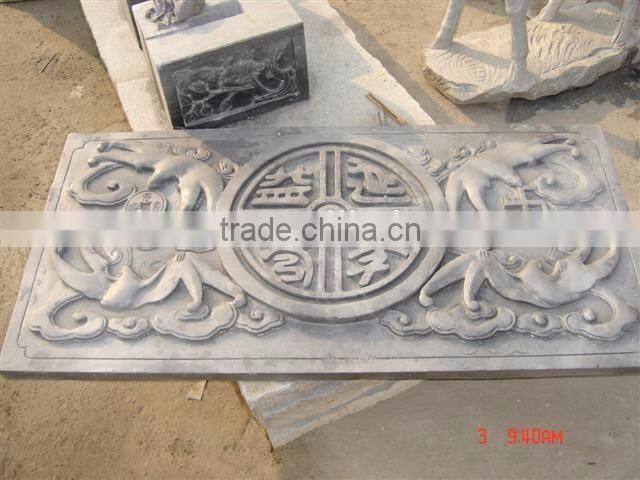

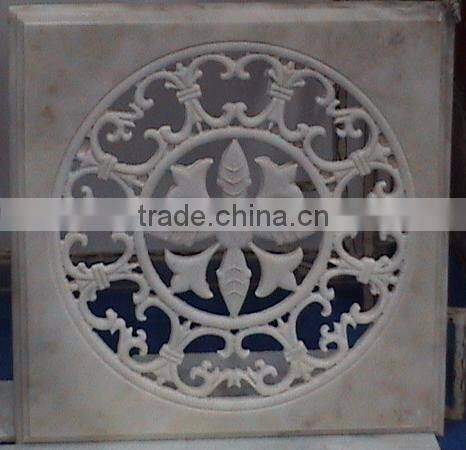

Working samples
