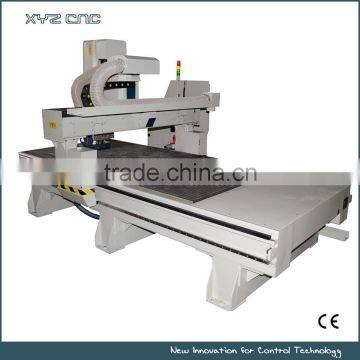

High Accuracy Wood Engraving and Cutting CNC Router XYZ-CAM

Premium rigidity framework for industrial heavy-duty routing

Intelligent servo drives throughout with planetary gearboxes

Integrated CNC control system, highly-efficient interpolation algorithm

Impressive cutting speeds of up to 50m/min (depending on cutting bit and material)

Industrial heavy routing CNC woodworking machine/CNC Router XYZ-CAM-P1

Professional series Three Axis CNC Machine is positioned as the most flexible and reliable XYZ machine series, designed for offering superior cut precision under fast movement, it is capable to meet any demanding application requirements in the follow industries - woodworking, plastics, composites and non-ferrous metals industries. Incorporating the latest workmanship from North America in both electronics and machine construction. It is manufactured using heavy-duty, full stress relieved and welded steel framework and superior quality components include precision helical rack and pinion gears, THK Linear guidance rails, top of the line AC servo motors and high precision high speed planetary gearboxes…

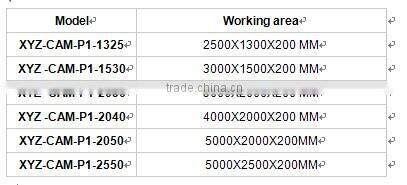

Standard models of Industrial heavy routing CNC woodworking machine/CNC Router XYZ-CAM-P1

We can also customize many kinds of CNC machines as customer's special requirements, such as large-size CNC machines, multi-axis CNC machines, multi-gantry CNC machines, high Z clearance CNC machines, automatic feeding functions, etc.

Belief introduction of Industrial heavy routing CNC woodworking machine/CNC Router XYZ-CAM-P1

1. With Precision machined & heavy duty frame, stress relieved in a rigorous thermal treatment, heavy duty steel gantry and rigid guidance design.

2. Motion by helical rack and gear on X and Y, imported high-precision ball screw on Z Axis, which moving smoothly, to ensure the machine’s high precision.

3. Japanese THK Linear guidance rails, self-lubrication, longer-term maintenance-free operation, and delivering a high-speed machines with a longer service live.

4. Top of line Japanese YASKAWA servo system with planetary gear reducers to ensure the machine’s high speed and accuracy.

5. Advance PC-based control system, highly efficient interpolation algorithm, hand-held MPG pulse generator.

6. Standard configuring with auto lubrication system, automatic tool setting system.

7. Top quality accessories, to minimize the machine’s failure rate, Well-known electrical parts Schneider, Omron, Honeywell, etc., Pneumatic components Taiwan AirTAC.

Applicable Industry of Industrial heavy routing CNC woodworking machine/CNC Router XYZ-CAM-P1

1, woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.

2, the advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.

3, die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4, other industries: A variety of large-scale relief sculpture, video carving, widely used in gift processing industry.

Technical Parameters of Industrial heavy routing CNC woodworking machine/CNC Router XYZ-CAM-P1
