Specifications
1.CNC Router for wood metal stone acrylic2.small size 600*600*mm
3.Linear round guide rail
4.Ncstudio control
5.Artcam

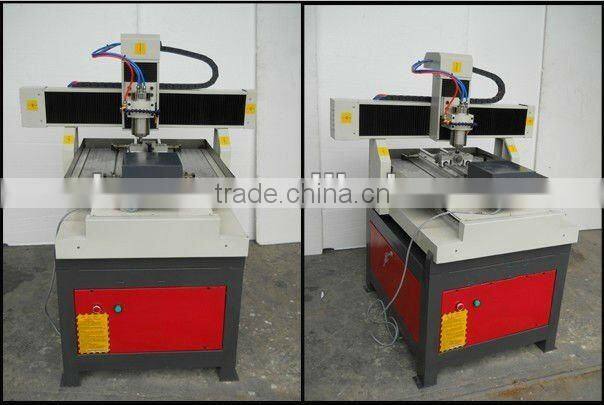

CNC Router/CNC Metal Engraving Machine for Stainless Steel
ZK-6060 (600*600*120MM)
Main characters
1.Imported the ball screw and linear round guide way for X Y Z-axis, stable operation, high precision
and low vibration.
2.Optional control system according to your need, we are providing the PCI NcStudio, DSP offline, March 3...
3.Cooling system for the metal, hard materials, avoiding breaking the cutters and workpiece.
4.Auto tool setting, helping to set the cutters, and not break the cutters.
5.Power off and break point, continuing processing.
6.Good software compatibility: Type3, Artcam, Ucancam V9... All kinds of CAD/CAM software.
7.Good at small workpiece precision processing, mainly used for metal, such as aluminium, copper, stainless steel, steel, alloy, etc..Also can for wood, MDF, acrylic, organic glass, PVC, double color board,stone, jade processing.
Technical data
Items | Description | Optional |
Effective working area | 600(X)mm*600(Y)mm*120(Z)mm | |
Max. thickness of the materials | ≤120mm(the distance between Z-axis and the bottom of the working station) | Or higher |
Materials | Whole cast aluminum | or whole cast iron |
Water cooling system | Stainless steel water slot | |
Working table | Aircraft aluminum T slot | |
Guide rail | Linear round guide rail | Or linear square guide rail |
Transmission | Ball screw for X Y Z-axis | |
Driving mode | Stepper motor | Or servo motor |
Spindle motor | 1.5kw water cooling | 2.2/3.0 kw or air cooling |
Spindle speed | 0-24000rpm/min | |
Empty traveling speed | 0-8000mm/min | |
Engraving speed | 0-6000mm/min | |
Resetting accuracy | 0.05mm | |
Control system | NcStudio | DSP offline or MACH3 |
Carving Instructions | G code *Uoo *mmg *plt HPGL | |
Packing size | 1150*1050*1600mm | |
Gross weight | 175kg |

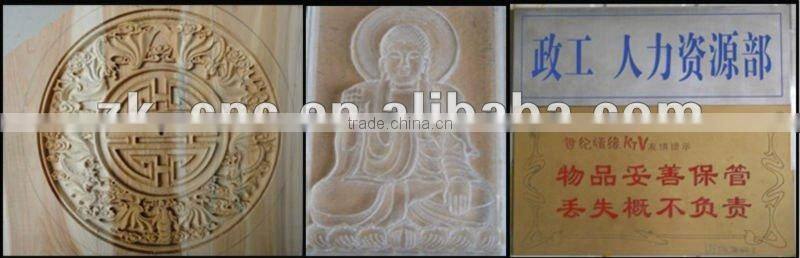

Applications
1.For Steel , copper ,stainless steel ,aluminum ,brass ,Cu
2. Also for Wood ,acrylic,double-colour board ,organic glass ,mdf , pvc , ,plastics etc .
Other types of ZK-6060 available

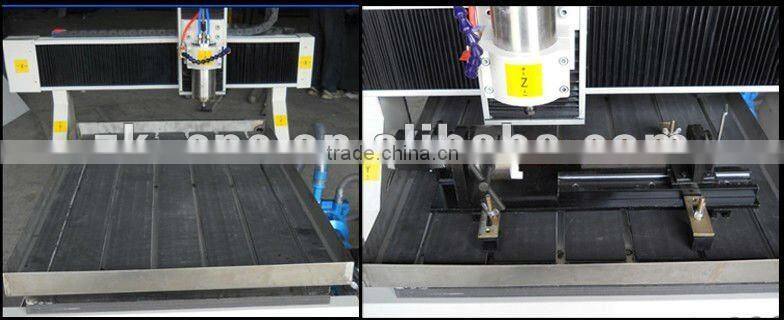

Machine with Rotary axis which mainly for cylinder material engraving and cutting
