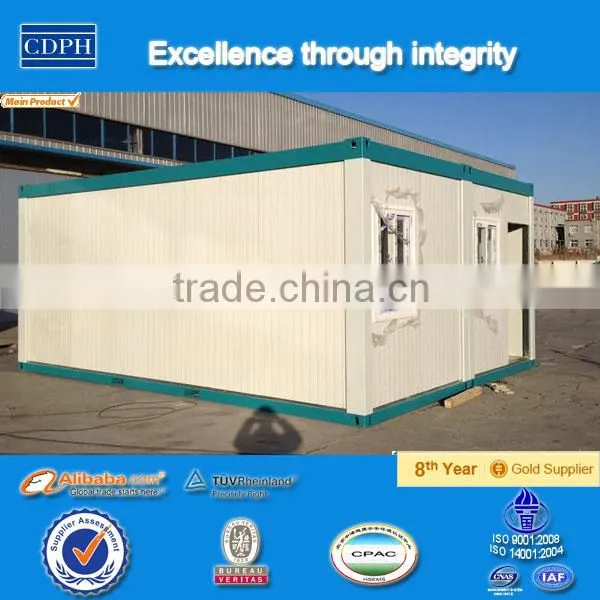

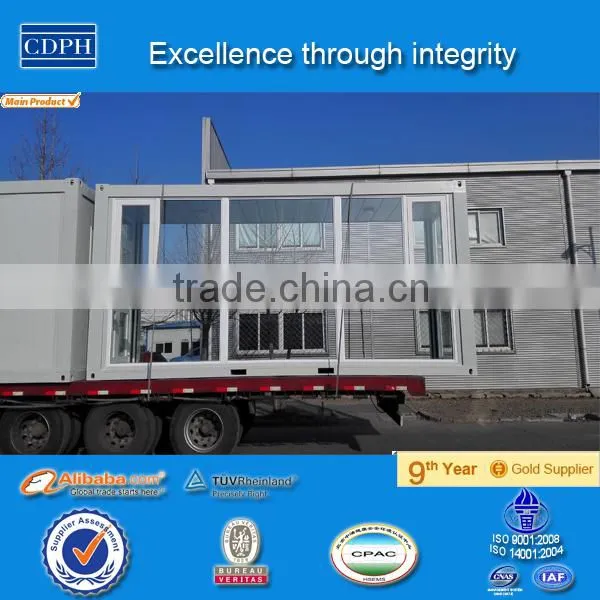

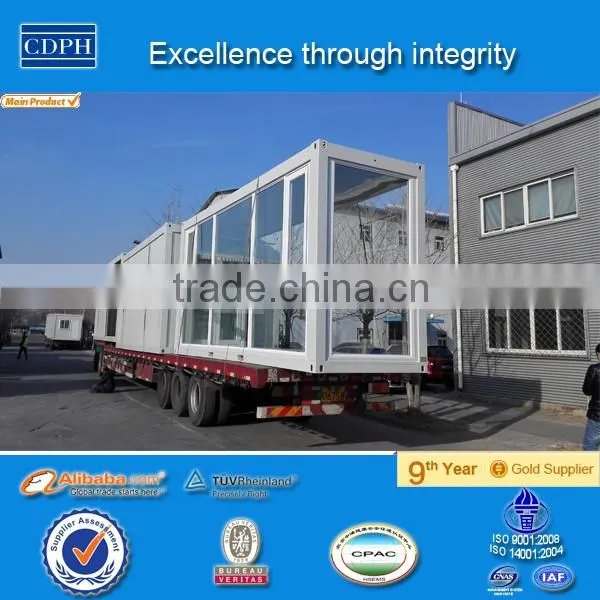

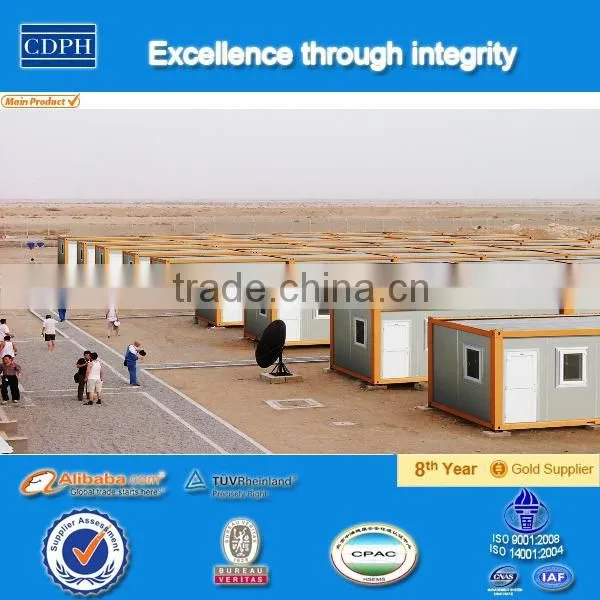

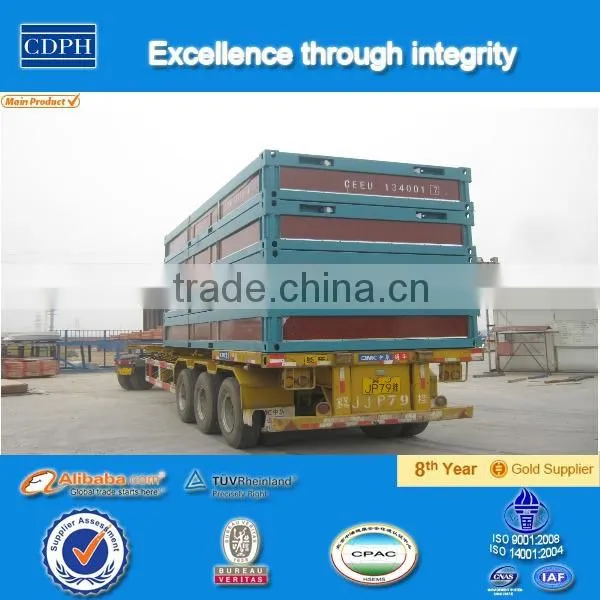

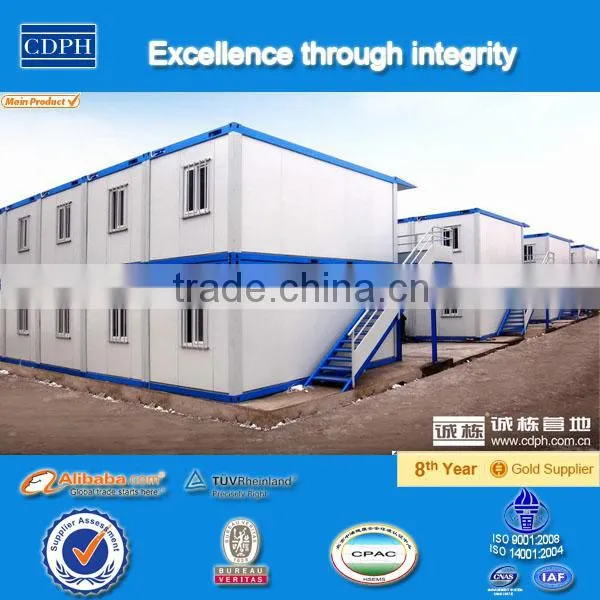

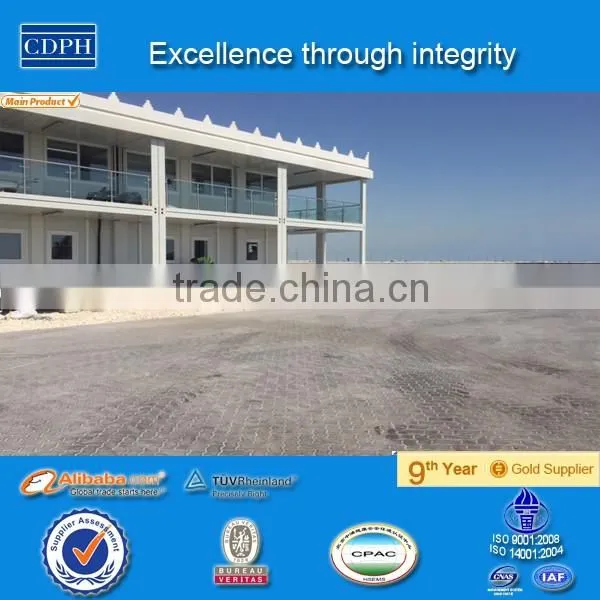

Portable homes is a ISO standard 20ft container house. Solid structure makes this house resist up to 120KM/H wind speed. Flat packing and loading into 40 foot containers when shipping makes goods safe and easy to transport and lay in at local site. With the character of free moving and fast installation, the container house is highly favorite by construction companies, mining companies, road & bridge companies all over the world.
The detailed information as follows:
No. |
Sort |
Name |
Specification |
||
1 |
Specification |
length |
6055mm |
||
2 |
Width |
2435mm |
|||
3 |
Wall height |
2896mm |
|||
4 |
weight |
2000KGS |
|||
6 |
Standard accessory |
Wall |
75mm or 100mm EPS sandwich panel( Glasswool panel ), 0.5mm color steel sheet and 15kg/m3 polystyrene foam density inside. Permitted loading is 0.6KN/m2 and Coefficient of thermal conductivity is K=0.442W/m2k. |
||
7 |
Roof |
Girder use 16a channel, outside is 0.5mm color steel as the surface and inside is 0.5mm color steel sheet as the ceiling. Between them is 100mm glasswool insulation. Permitted loading:1.6KN/m² and Coefficient of thermal conductivity: K=0.55W/ m²K |
|||
8 |
Base |

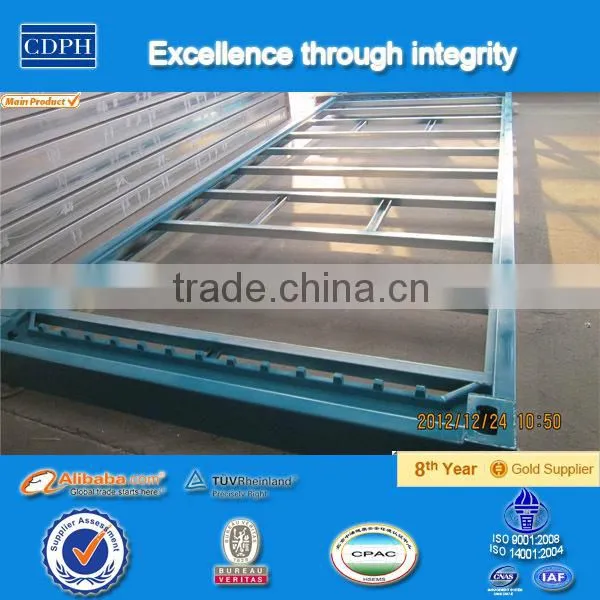

Girder use 14a channel and The purlines of the floor are welded by two sides. External wainscot is 0.4mm flat galvanized steel sheet metal, and insulation is 30mm EPS. The supporting material is 11mm plywood and the decoration is 8mm laminated flooring. openings for a fork-lift truck in the base framework, dim 88*250mm in a distance of 1200mm Permitted loading: 3.5KN/m2 and Coefficient of thermal conductivity: K=1.1W/ m²K |
|||
9 |
Door |
Steel door ,SIP door , single door with dimension of 800*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|||
10 |
Window |
PVC, white color, with dimensions of 700*1000mm, glazed with glass in a thickness of 5mm, aluminium decorative part, casement, supplied with fly screen. |
|||
11 |
Post |
Galvanized , material: Q235, 4mm thickness. PVC rainwater pipe in the framework fixed by 2pc reinforced corner fittings which plate thickness is 8mm. |
|||
12 |
Option |
Decorative floor |
Water -ProofRubber plastic floor or laminated flooring in living area and aluminium panel in bathroom and kitchen |
||
13 |
Drainage system |
Provided plan, design and construction |
|||
14 |
Electric system |
Provided plan, design and construction |
|||
15 |
Technical parameter |
Resistant temperature |
-20°C to 50°C |
|
|
16 |
Fire proof |
B2 grade (Can Reach B1) |
|
||
17 |
The resistant earthquake grade |
7 fission activate. |
|
||
