New EXLAS-X4-6090 Co2 Laser Cutting and Engraving Machine for Highly Controllable, Repeatable and Accurate Process

General Description of New EXLAS-X4-6090 Co2 laser cutting and engraving machine for highly controllable, repeatable and accurate process

Medium sizes, removable cabinet construction design

High-quality laser tubes with powers including 80W, 100W, 150W, 180W.

Rigid welded steel tube frame plus heat treatment.

Simi-sealed guide rail &ball screw motorized up-down table & Auto focus…

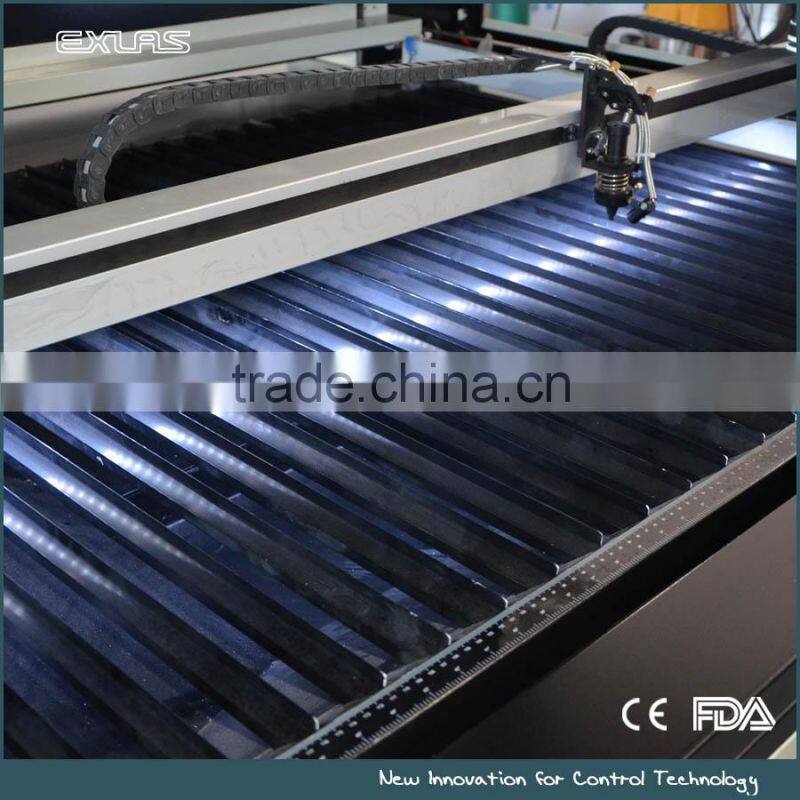

EXALS-X4 is the medium sized series, powerful, versatile cutting-engraving machine with standard working areas from 600X400mm to 1600X1300mm. Cabinet construction design with wheels for convenient use. This series integrates un-limited material pass through door, down draft vacuum table for fume & dust extraction, precision polyurethane belts transmission & linear guides with semi-sealed dust cover… With laser power choices to up to 180 watts the machine is the ideal for both cutting and engraving. The laser machine allows a range of optional parts to upgrade the working performance and suit the user’s special needs, such as servo motors, US-made RF metal tube, CCD recognition system, rotary device, red dot pointer, smoke purifiers...

Standard features of New EXLAS-X4-6090 Co2 laser cutting and engraving machine for highly controllable, repeatable and accurate process

1. Reliable Cabinet Construction

Rigid welded steel tube frame plus heat treatment to maximize strength and long-lasting, precision machined stamping parts and stainless steel hardware, abrasion/ corrosion resistant.

2. High-quality Laser Tubes

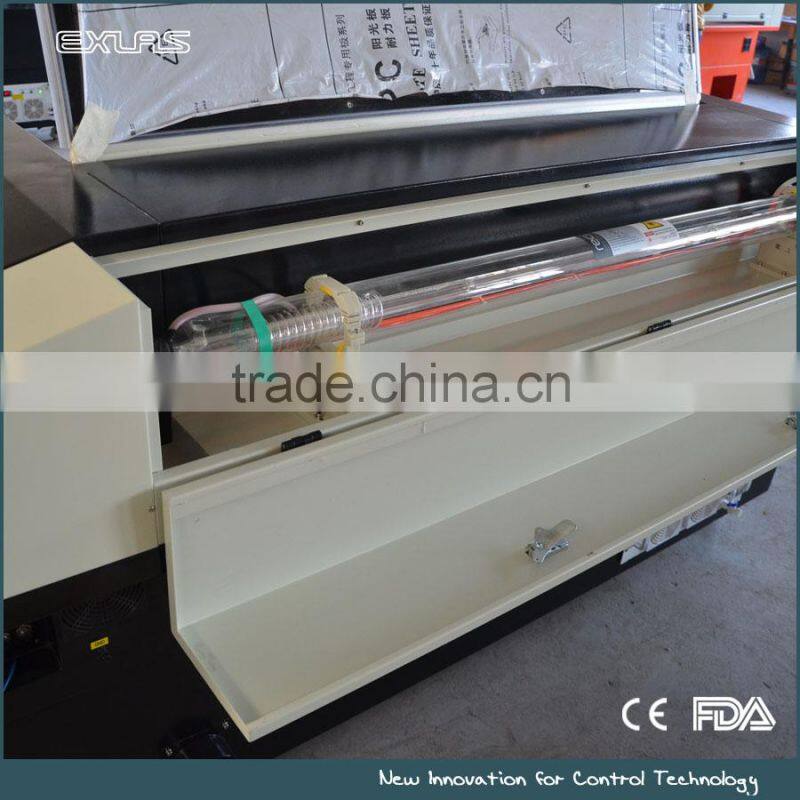

Hermetic and detached CO2 glass laser tube, power choice from 80W, 100W, 150W, 180W. High-quality and reliable laser tubes provide outstanding beam characteristics with long lifetime. Adopt Retractable rear cover of the laser tube allows a space extension, so that it can be easier to change the tube and adjust laser path… (US-made RF metal tube for option)

3. Patented Laser Head

XYZ is proud to present the patented auto focusing laser head, thanks to the unique design magnetic induction sensor, the laser head fulfills speedy auto focusing within 3s. This unique assembly also allows use of a gas assist delivery nozzle and various choices of focal length optics.

4. Motorized Table Height Adjustment 220mm

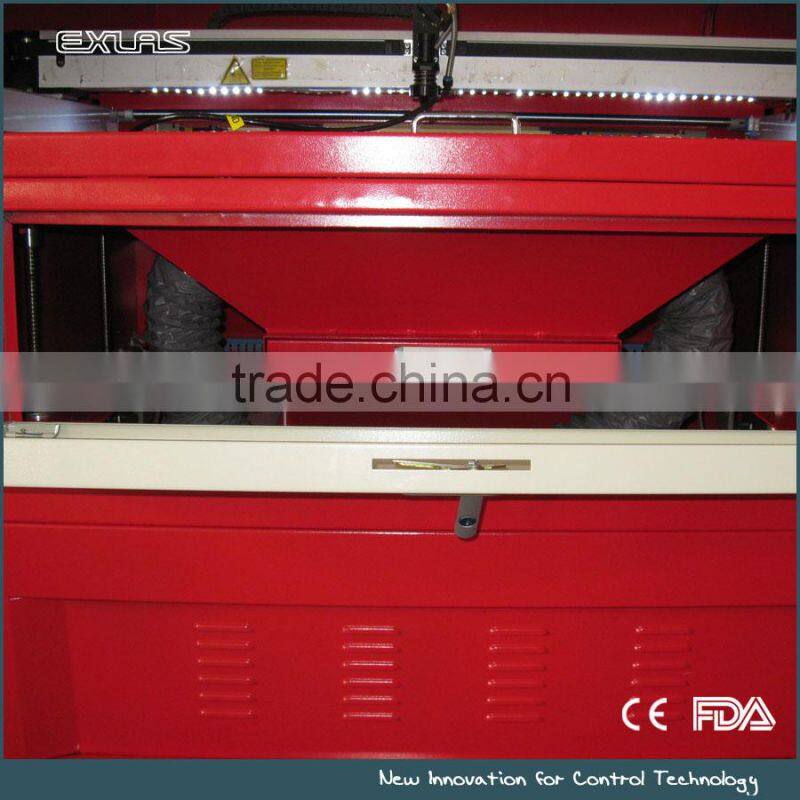

The motorized table is leading by high quality ball screws and precision stepper motor, allows an easily adjustment of table up or down to fit larger engraving objects (up to 220 mm height).

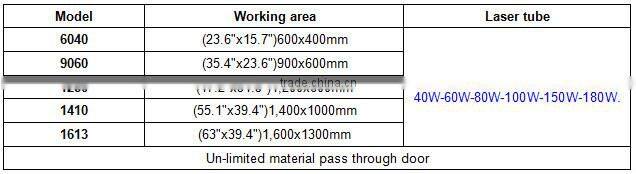

Standard Models of New EXLAS-X4-6090 Co2 laser cutting and engraving machine for highly controllable, repeatable and accurate process

Laser Cutting Feature:
1. Clean cut edges without burr for more efficient material utilization
    and reduced secondary operations.
2. Cutting of various material thicknesses and combinations in one operation
3. No material deformation due to contactless material processing
4. Highly controllable, repeatable and accurate processing.
Etc.

Applicable Industry of New EXLAS-X4-6090 Co2 laser cutting and engraving machine for highly controllable, repeatable and accurate process:
• Architectural Models
• Handicraft industry
• POP displays, advertising signs, LGP
• Awards & Trophies
• Signage, door plates, nameplates & plaques
Etc.

Optimized Materials of New EXLAS-X4-6090 Co2 laser cutting and engraving machine for highly controllable, repeatable and accurate process:
• Plastics (Acrylic, Nylon, Melamine, PCB…)
• Synthetic resins (PE/PVC/PS/PP/ABS…)
• NOTE: we suggest choosing the professional Air Extraction System to
  avoid chemical risks during cutting PVC)
• Wood and by-products (Plywood/MDF/Veneer/Delrin/Laminate...)
• Paper (Pressboard, Cardboard)
• Leather
• Fabric
Etc.

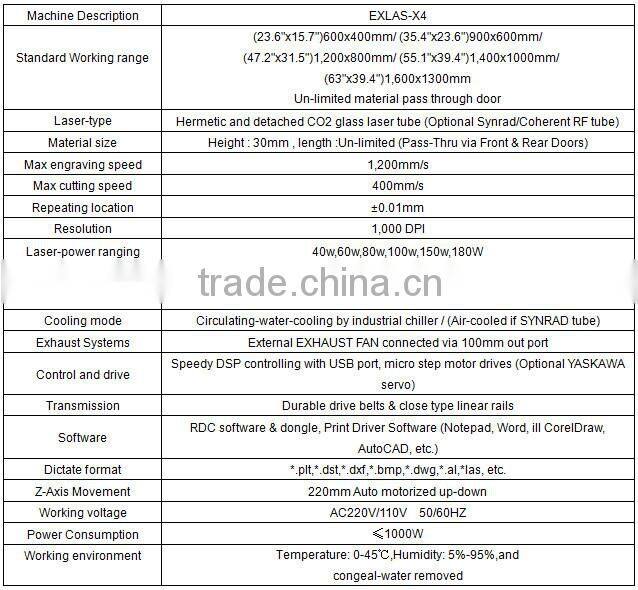

Technical Parameters of New EXLAS-X4-6090 Co2 laser cutting and engraving machine for highly controllable, repeatable and accurate process:

Warranty of New EXLAS-X4-6090 Co2 laser cutting and engraving machine for highly controllable, repeatable and accurate process

Laser tube 8000-10000 hours' working time

Comprehensive guarantee for one year (12 months)

24-hour technical support by email or calling

User-friendly English manual for machine using and maintaining

Packing & Shipment

Long Term Cooperated shipping forwarder to offer shipment.

Standard export package, custom suffocating free.

About US

Jinan XYZ Machinery LLC has been manufacturing CNC Router and laser machines over 10 years.

With the constant technical innovation, we have developed CNC machines- the XYZ series CNC Router under XYZ-CAM, XYZ-S, XYZ-V brands, and Laser cutting/engraving machines under YKL, EXLAS, and XYZL brands.

We are proud to be supplying now over 100 countries worldwide and many other regions around the globe. Customers purchase with confidence due to our unique and innovative designs. Each machine is produced in house by qualified technicians and a well trained staff to serve your needs, all delivered on a timely basis with pride.
