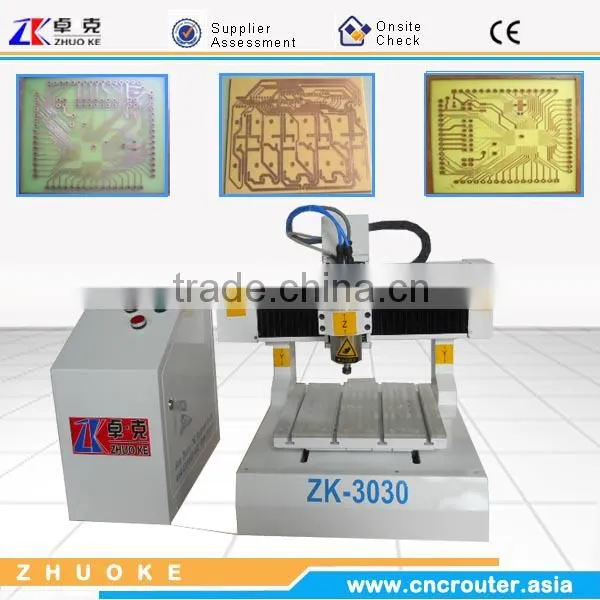

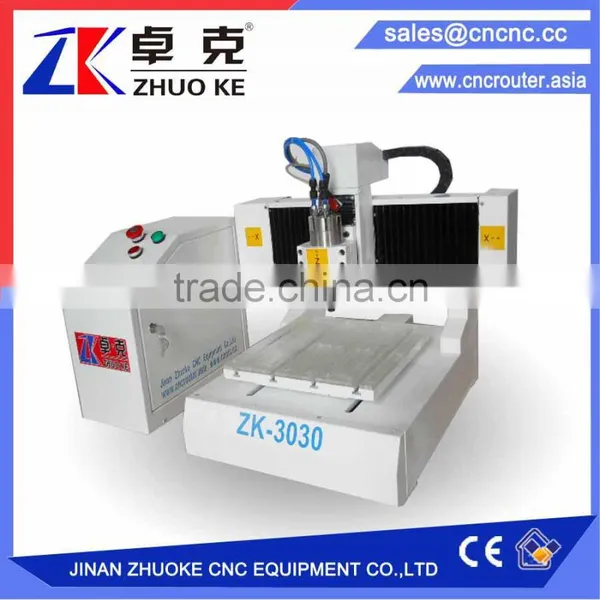

China 1.5KW Spindle Small PCB CNC Router Milling And Driling Machine With Linear Square Guide Rail ZK-3030 300*300mm
Technical Data:
Certificate |
CE |
|
Effective working area |
300(X)mm*300(Y)mm*80(Z)mm |
|
Moving method |
Platform moving |
|
Material |
Whole cast aluminum |
|
Working table |
Aircraft aluminium T slot with PVC layer |
|
Guide rail |
Linear square guide rail(Hiwin, Taiwan, diameter 20mm) |
|
Transmission |
Ball screw for X Y Z-axis (X Y Z-axis: #1605, TBI) |
|
Driving mode |
Stepper motor ( XYZ-axis: 57BYG-311) |
|

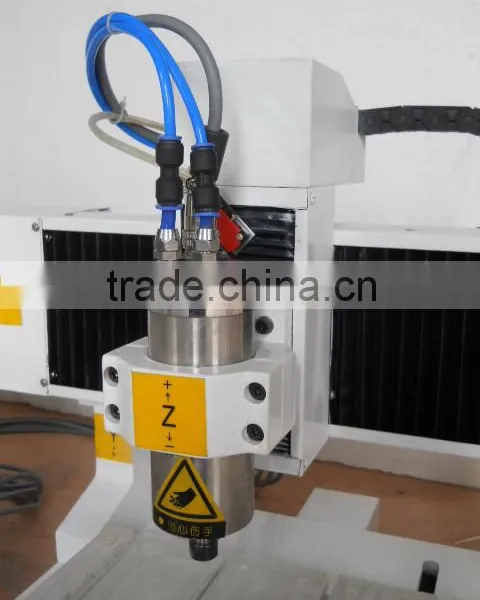

Spindle motor |
1.5KW water cooling |
|
Spindle collet type |
ER 11 |
|
Suitable cutter tools diameter |
3.175mm, 4mm, 6mm |
|
Voltage |
AC 220V 50/60Hz, single phase |
|
Spindle speed |
0-24000rpm/min |
|
Empty travelling speed |
0-8000mm/min |
|
Engraving speed |
0-6000mm/min |
|
Machine accuracy |
0.03mm |
|
Resetting accuracy |
0.05mm |
|
Diagonal error |
1mm |
|
Resolution ratio |
0.005mm |
|
Control system |
PCI NcStudio or DSP or Mach3 |
|
Designing software |
Protel 99, Copper CAM |
|
Minimum line diameter |
6-8mil |
|
Minimum line spacing |
8mil |
|
Minimum step distance |
0.003125mm |
|
Motor wire |
High soft specially for Numerical Control( 4*0.75) |
|
Spindle wire |
Shielding high soft (3*1.5) |
|
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Running environment temperature |
0-45 °C |
|
Relative humidity |
30%-75% |
|
Tools |
24 pieces, 10 pieces drilling tools, 10 pieces engraving tools, 3 pieces corn milling tools, 1 piece bottom clearance tools |
|

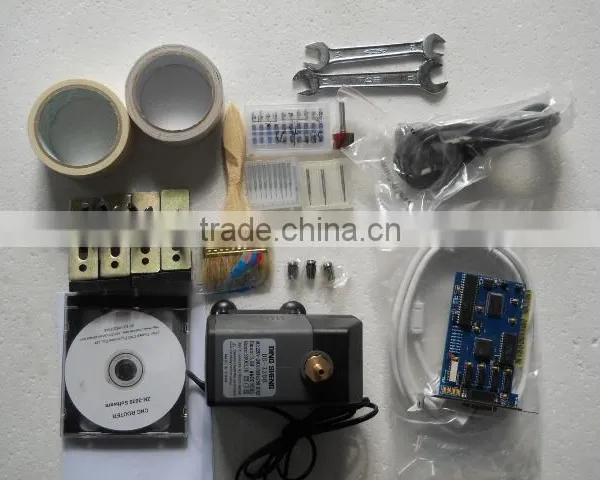

Accessories |

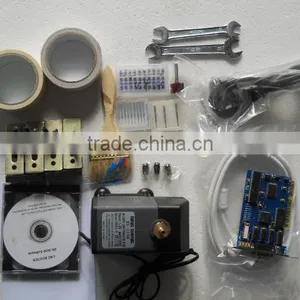

Water pump(1), tools (24), power line, USB line, fixtures(4), user manual, software CDs, Ncstudio card(1), spanners(2), brush,collets(3), double faced adhesive tapes (2), water tank(1),etc. |
|
Applicable Industries :
To complete the production of single and double panel, to help students master the system board processes(cutting boards,carving,drilling,overhole plating). Provide a reliable platform for the training of the new technical personnel according to factory.
Meet students’ electronic design, EDA practice, electronic design contest, course design, graduation design, innovative practices, such as integrated design, innovative experimental requirements.
Provide the necessary conditions for students independent learning, cooperative learning, research study. Strengthen students’ practical and creative ability. To culture from students to train engineers via electronic products from the principles of design,process design, prototype production of the whole process,while learning and master the mechanical process plate process.
Technical advantages :
In order to shorten the research and design time and see results as soon as possible, research institutions, universities, electronics companies can adopt Zhuoke series PCB engraving machine.The time of product design developed is very long if sent to the printed version of plant production, small trial is high cost and temporary modification of the printed version is also very troublesome.The printed version of the production of other methods are very cumbersome and the printed version is not standardized.
Zhuoke series highprecision circuit board engraving machine with drilling, carving, line isolation, width setting, the whole map and designated areas engraving, milling and shaped holes and other functions, you can also use multiple combination of carving knives way to prevent a board spending a few hours, it has high performance. It takes just 12 minutes to make a simple circuit board and also just about 20 minutes to produce a very complex circuit board. With environmental performance, using physical engraving, free corrosion, avoid environment pollution, it is the most powerful, costeffective CNC engraving machine in the PCB engraving machine industry.

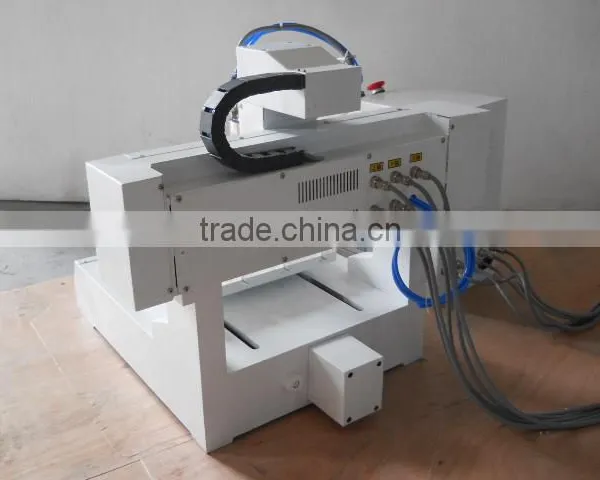

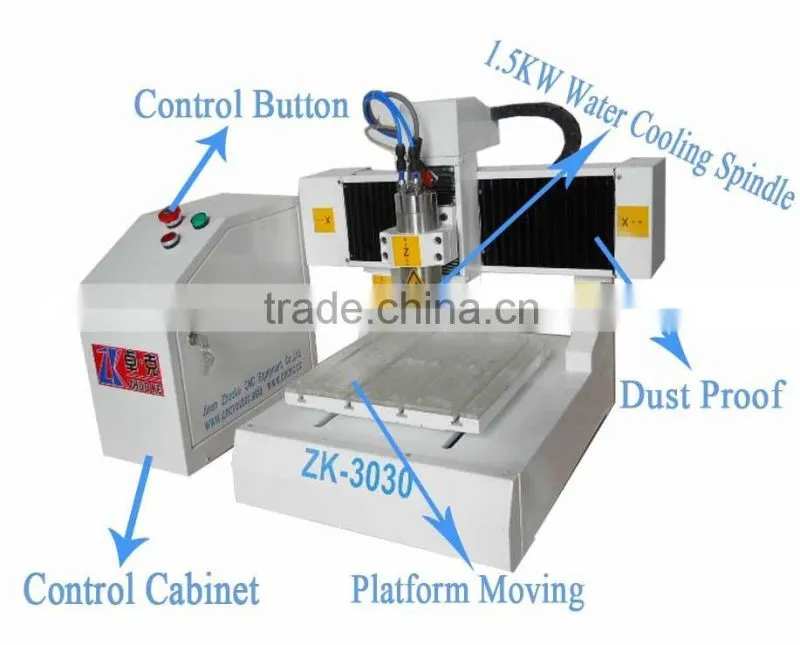

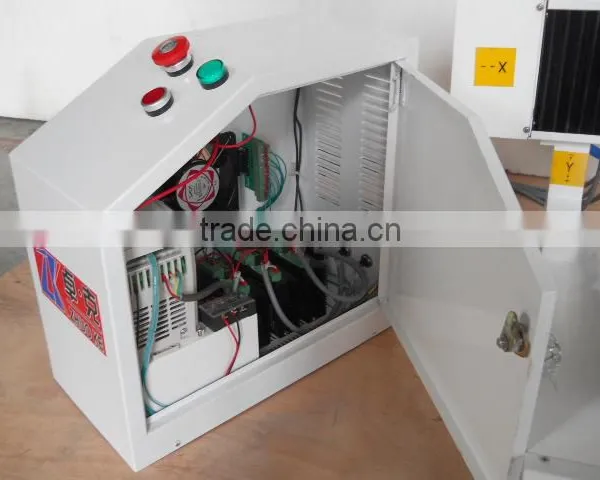

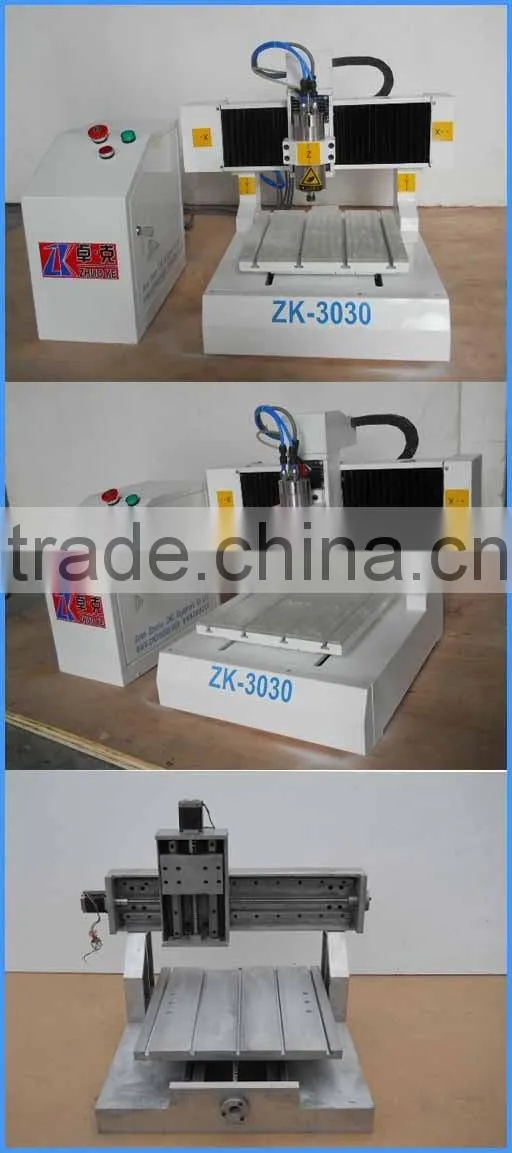

Machine Details:
Working Sample:
Other models you may be interested in:
PRE-SERVICE
Offer us a call, even cooperate with us or not, you may get unexpected harvest. We could discuss the future development of this line together accroding to many years' experience in selling and producing which could help to enlarge the profits and improvement for both of us.Studying customers' requirement carefully, we could help clients to choose the best suitable machine andalso will offer you the relative samples and suggestions promptly and consinderately to customer's production scale and technical requirement.
SELLING SERVICE
Promptly and patiently answer customer's questions. Put our heart and soul into service for customer, including supply some suggestion on choosing the place, play maximum value of Jinan Zhuoke CNC.
AFTER-SALE SERVICE
1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free.
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.
Jinan Zhuoke CNC Equipment Co.,Ltd is a modern enterprise integrating reach and development, manufacturing, sale and after sale service, located in Jinan City, Shandong Province, China.
Our company mainly focuses on manufacturing CNC Routers and Laser Engraving Cutting machine, with high quality and top sales and after sales-service, we have won the customers trust and support from all over the world. Also, our machine can be specially customized according to your requirement.
Our technical and sales teams which are professional and unitive, can give the best service of consulting, installation, operation, maintenance, etc.
We follow in with our best products and sincere service, touched your hearts, so pls feel free to contact us!
If you are interested in our machine,please feel free to contact me any time!
