Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Engraving Machinery > Desktop Small PCB Engraving Drilling And Milling Machine CNC Router 600*600mm With CE OEM Available ZK-6060

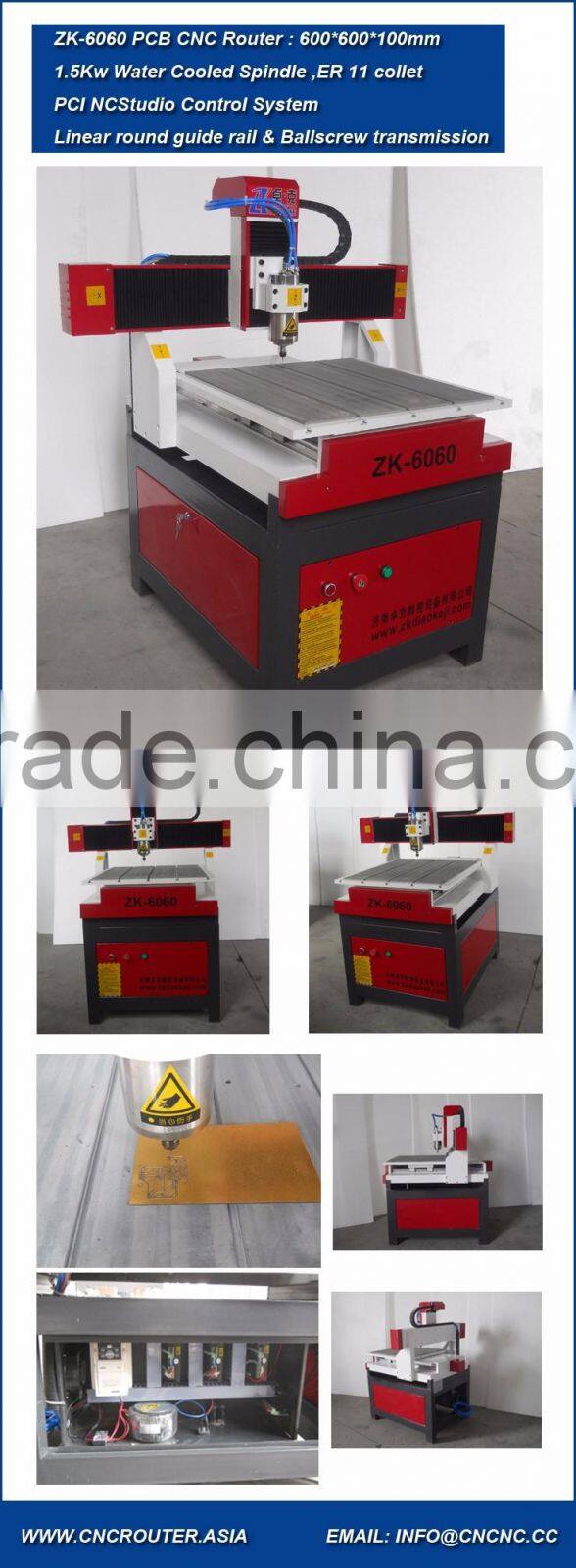

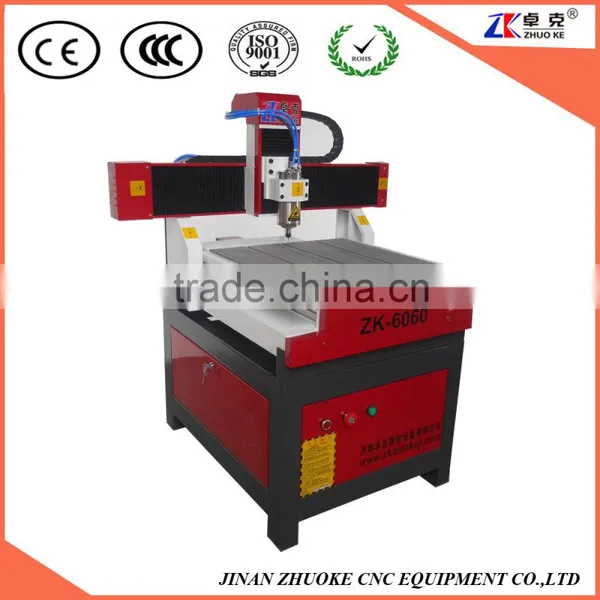

Desktop Small PCB Engraving Drilling And Milling Machine CNC Router 600*600mm With CE OEM Available ZK-6060

Name: Desktop Small PCB Engraving Drilling And Milling Machine CNC Router 600*600mm With CE OEM Available ZK-6060
Brand: ZhuoKe, ZhuoKe
SKU: 123087017
Availability: InStock

Jinan Zhuoke CNC Equipment Co., Ltd.

Desktop Small PCB Engraving Drilling And Milling Machine CNC Router 600*600mm With CE OEM Available ZK-6060 thumbnail-1

Desktop Small PCB Engraving Drilling And Milling Machine CNC Router 600*600mm With CE OEM Available ZK-6060 photo-1

US$ 2,000 - 2,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

ZhuoKe, ZhuoKe

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port /Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name ZhuoKe, ZhuoKe

Model Number ZK-6060

Rated Power 1500W(Spindle)

Engraving Speed 6000mm/min

Main Axle Rotational Speed 0-24000rpm

Feeding Height 100mm

Milling Cutter Diameter 3.175,4,6,8,10,12.7mm

Application Small Printed Circuit Board Drilling & Metal Engraving

Dimensions 105*108*140cm

Weight 140Kg

Certification CE,SGS,FDA ,ISO,OEM

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Free Shipping High Precision Small PCB CNC Router For Drilling And Milling 600*600mm With 1.5Kw Spindle OEM Available ZK-6060

Product Description

Machine Feature

1. Body small, tight, machine body and gantry whole cast iron or aluminum, stable, no deformation, little shock,moving stability.

2. Imported high quality ball screw, precision segmentation, to achieve the high precision engraving.

3. Low noise 1.5kw/2.2kw water cooling spindle, high rotated speed (24000rpm), can realize only diameter 1mm toolsengraving on the hardness materials.

4. Auto tool calibration help you to set the tools, not break the tool nose, ensuring the workpiece high precisionprocessing.

5. NcStudio control system, connect with the computer, showing the processing path, , more conveient and easy to operate.

6. Continuing working after the break point/power failure, lower the rejection rate.

7. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.

Application

1.Drilling on the copper-clad laminates.

2.Stripping off the no need copper foil, forming wire welding plate.

3.Milling cutter line along the appearance, make the circuit board and plank separation.

4.Directly setting the original point, and resetting function.

5.Software virtual machining, can preview the processing path.

6.Real-time the processing path and time showing.

7.Power off, break point continue working.

8.Combination engraving, available setting 2 cutters processing, shorting the processing time.

9. Can setting any region processing.

Technical Data

Certificate	CE
Effective working area	600(X)mm600(Y)mm100(Z)mm
Max.thickness of the materials	≤100mm(the distance between Z-axis and the bottom of the working station)
Moving method	Platform moving
Material	Whole cast aluminum
Working table	Cast iron with T slot
Guide rail	Linear round guide rail
Transmission	Ball screw for X Y Z-axis (X Y Z-axis: #1605, TBI)
Driving mode	Stepper motor ( XYZ-axis: 57BYG-311)
Spindle motor	1.5KW water cooling
Spindle collet type	ER 11
Suitable cutter tools diameter	3.175mm, 4mm, 6mm
Voltage	AC 220V 50/60Hz, single phase
Spindle speed	0-24000rpm/min
Empty travelling speed	0-8000mm/min
Engraving speed	0-6000mm/min
Machine accuracy	0.03mm
Resetting accuracy	0.03mm
Diagonal error	0.3mm
Resolution ratio	0.005mm
Control system	NcStudio
Designing software	Protel 99, Copper CAM
Minimum line diameter	6-8mil
Minimum line spacing	8mil
Minimum step distance	0.003125mm
Motor wire	High soft specially for Numerical Control( 4*0.75)
Spindle wire	Shielding high soft (3*1.5)
Carving Instructions	G code Uoo mmg *plt HPGL
Running environment temperature	0-45 °C
Relative humidity	30%-75%
Tools	24 pieces, 10 pieces drilling tools, 10 pieces engraving tools, 3 pieces corn milling tools, 1 piece bottom clearance tools
Accessories	Water pump(1), tools (24), power line, USB line, fixtures(4), user manual, software CDs, DSP(1), spanners(2), brush,collets(3), double faced adhesive tapes (2), water tank(
