Protel99&copperCAM design software mini circuit board board making machine 6060

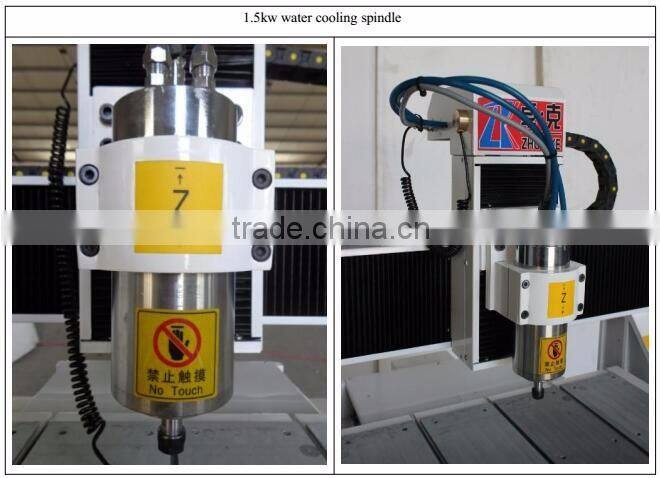

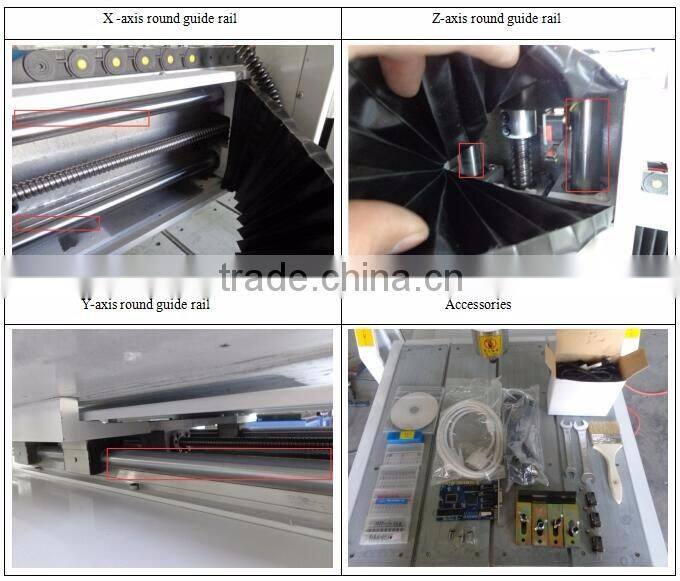

1.5kw water cooling spindle ;whole cast iron ;platfrom moving ;ball screw transmission ;stepper motor ;Round guide rail ; PCI NcStudio control system; Protel99&CopperCAM
Technical Parameters :
Model |
ZK4040 |
ZK6060 |
ZK-3030 |
Processing area |
400*400(mm) |
600*600*120(mm) |
300*300(mm) |
Engraving speed |
0-8000mm/min |
0-8000mm/min |
0-8000mm/min |
Engraving command |
G code |
G code |
G code |
X, Y, Z movement location precision |
0.03/100mm |
0.03/100mm |
0.03/100mm |
X, Y, Z repeat location precision |
0.01mm |
0.01mm |
0.01mm |
Main spindle power |
1.5kw |
1.5kw-3.0kw |
1.5kw |
Main spindle rotating speed |
8000-24000r/min |
8000-24000r/min |
8000-24000r/min |
Z movement distance |
120mm |
120mm |
120mm |
Feed hight |
150mm-200mm |
150mm-200mm |
150mm-200mm |
Processing precision |
0.01mm |
0.01mm |
0.01mm |
Knife |
& 3.175/& 4/& 6 |
& 3.175/& 4/& 6 |
& 3.175/& 4/& 6 |
Working power |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
Features :
1. Simple operation and installation, when delivery we will provide the videos for training.
2.Mini portable desktop hobby machine type.
3. Can be controlled by computer, showing the processing path and estimated processing time.
4. Water cooling system, ensuring the processing for the metal/stone/glass cooling.
5. Function of re-carving after break point and power off, reducing the materials wasting.
6. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
7. Optional items: rotary axis for cylindrical materials, DSP offline control system, when working no need the computer...
Applications :
The Computerized Mini CNC Machine is suitable for various materials, such as WOOD, PMMA or other plastic, MDF board, PVC, acrylic, composite board plywood, and metal, stone, glass, etc.
It can be used widely to process or make adverstising signs, PCB, nameplates, badges, bronzing plate, aluminium alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.

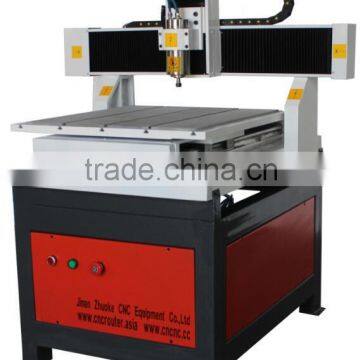

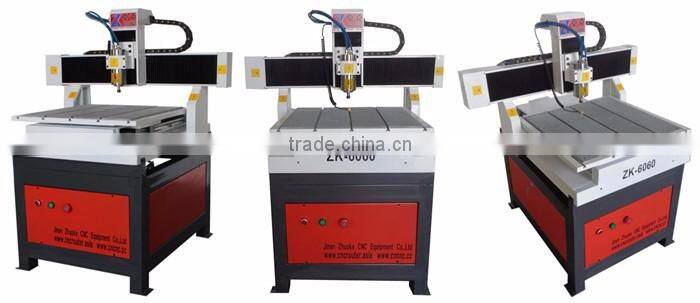

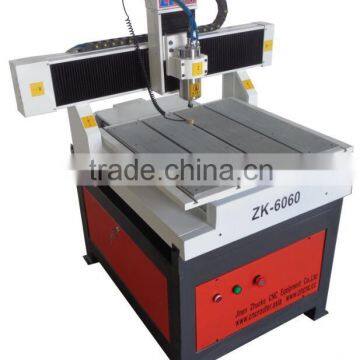

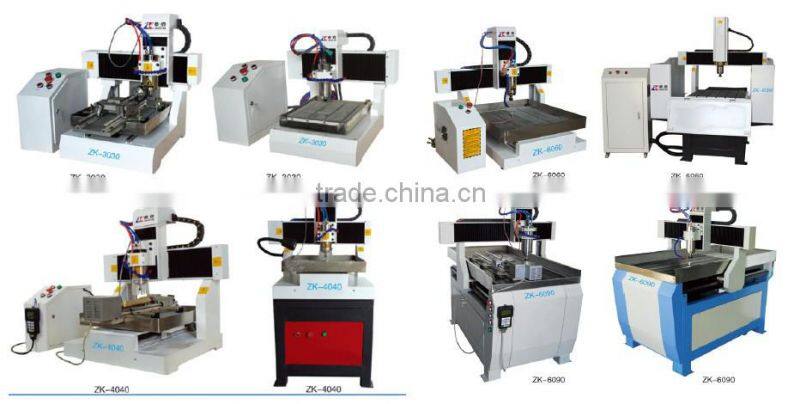

Referrence Machine Pictures :
1.Outside Package:Standard export wooden cases
2.Inner package:strech film
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.
Jinan ZHUOKE CNC equipment Co.,Ltd is a modern export -oriented enterprise It located in the Jinan city ,SHANDONG province.
Our products are woodworking CNC router,PCB CNC router ,and laser engraving cutting machine ZHUOKE series products are widely used in the woodworking advertising ,stone architectural models ,electronics
clothing ,and other industries.
Our CNC machine are not only sold to the domestic,but also the Southeast Asia,Africa and so on.
The important thing is our products are excellent in quality and reasonable in price.
Jinan ZHUOKE CNC Equipment Co.Ltd | |
Contact person |
Amanda kong |
Skype |
Sunnywang78 |
Tel |
008615165028297 |
+8615165028297 |
|
