Specifications

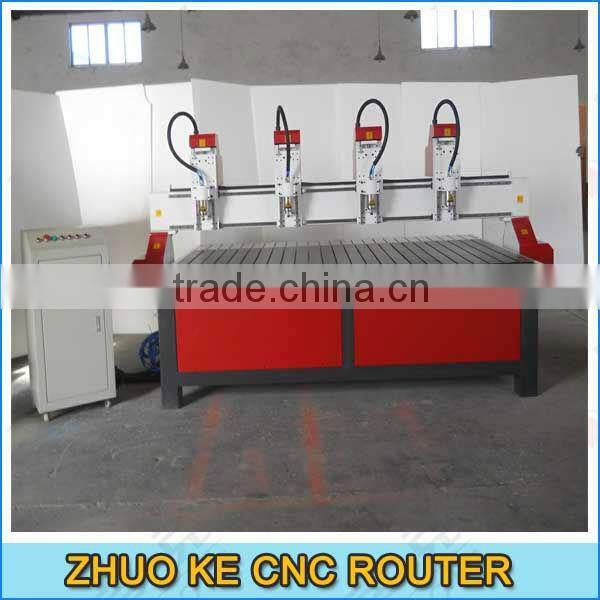

Multy-spindle CNC Router 2513 four spindle4 spindle heads, each one is 2.2kw
T type gantry
T tylpe square steel tube machine
Multy-spindle CNC Router
Technical parameters:
Items |
Description |
Optional items |
Effective working area |
1500(X)mm*3000(Y)mm*200(Z)mm |
|
Max.thickness of the materials |
≤200mm (the distance between Z-axis and the bottom of the working station) |
|
Materials |
Square steel tube machine bed, cast iron gantry |
|
Guide rail |
Linear square guide rail |
Linear round guide rail |
Transmission |
Rack and pinion transmission |
|
Driving mode |
Stepper motor |
|
Spindle head |
4 |
|
Spindle motor |
2.2kw*4 |
Or water cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-60000mm/min |
|
Engraving speed |
0-25000mm/min |
|
Resetting accuracy |
0.05mm |
|
Control system |
NcStudio |
Or DSP offlineor MACH 3 |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Compatible software |
Artcam, Type 3, Ucancam,etc |
|
Packing size |
3700*2250*1800mm |
|
Gross weight |
1300kg |
|
Features:
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped with T type gantry and T type square steel tube machine bed.
3. Equipped with 4 spindle heads, more poweful, good perfomance, can processing several work pieces by one time, saving time and improving the efficiency.
4.The spindle heads distance is adjustable according to the work piece processing size.
5. It can also just open any one spindle head when working.
6.Linear square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8. (optional item)Vacuum system, vacuum table+5.5kw vacuum pump, better to suck the different size materials.

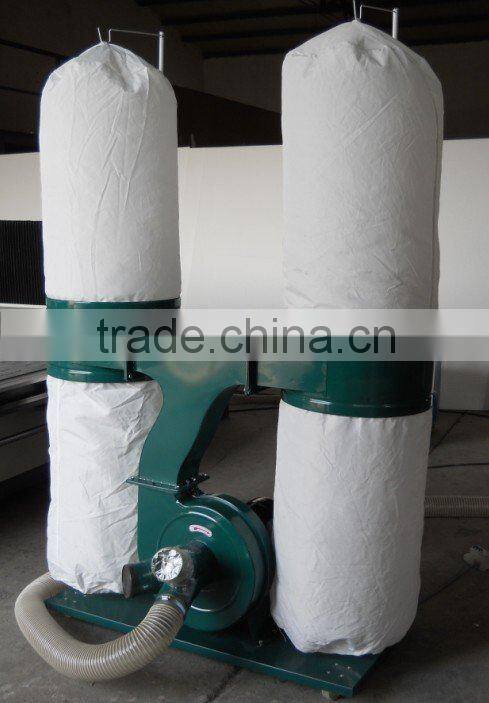

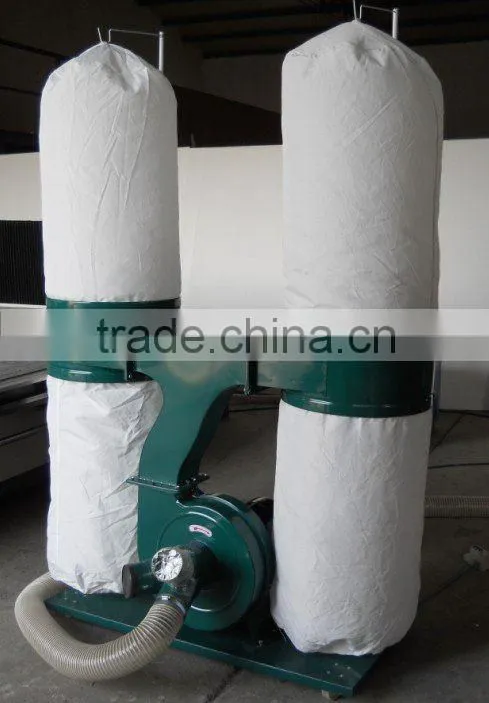

9. (optional item)Dust collector, with double bags, more powerful, helping to suck the dust, milling dust, keeping the machine clean.
10.Function of re-carving after break point and power off, reducing the materials wasting.

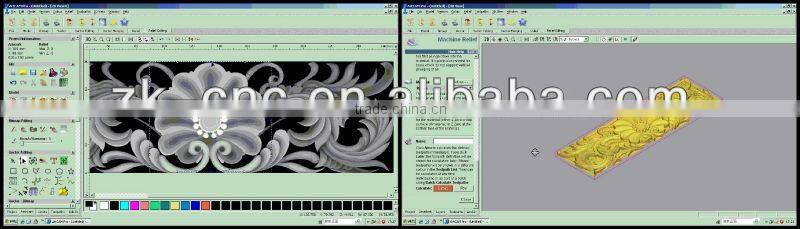

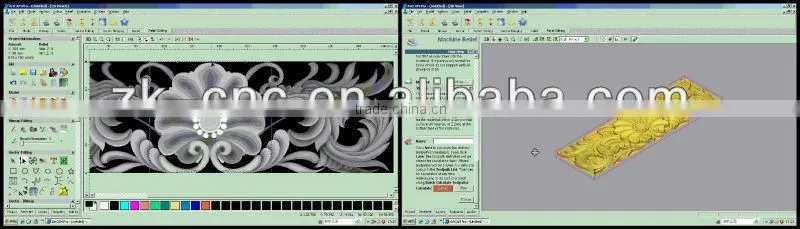

11. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam,
Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Machine instruction:
Mainly used for relief processing, wood door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving, screen, calligraphy tablet design, wood furniture, computer tables, and so on.
Samples as follow:

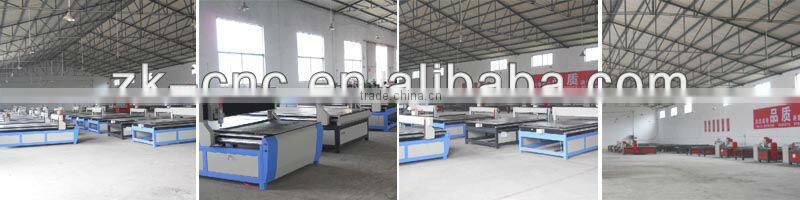

Welcome to visit our factory!
Quality control:
In the whole manufacturing process, we will keep the quality of the parts of the machine. And when the machines are completed, we will test them to confirm they can work very well.
Guarantee and After Sales Service
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.
For further details, please feel free to contact us!
