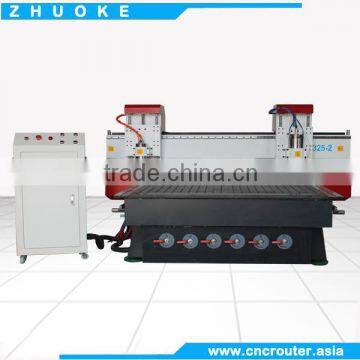

ZK-1325-2 Dual Heads Wood Engraver Machine With Vacuum Bed
Applicable Industries
Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo wave
board processing, panel furniture, painting door, paintfree door, screen, craft windows working, furniture milling and
engraving, wooden musical instrument 3D engraving
Applicable Materials
MDF, wood, plywood, solid wood, PVC, acrylic, doublecolor board, plastic plate, luminous panel, organic glass, aluminum,
copper, sliver, gold, iron, stainless steel and other materials.
Machine characters
1. The machine body structure adopt high quality steel pipe welding, with geometry frame structure, strong bearing
strength, processing jitter low.
2. Machine 3 axis adopt Taiwan linear square guide rail, double class four row ball slider, operating smoothly, high
accuracy, durable.
3. XY axis adopt supermodulus rack pinion transmission with high speed and accuracy. At the same time, Z axis use imported ball screw,
high precision, lower knives accurately
4. Adopt highspeed step motor and drivers. Two motors for Y axis make machine operating more sable and higher accuracy.
5. 2 spindle heads, working at the same same, increasing the efficiency, one is 3.0KW, another is 5.5KW water cooling spindle match with domestic well-known brand of high power water-cooled frequency conversion brushless motors, small noise, strong and free maintenance, continuous working,
6. Vacuum working table, with 5.5kw vacuum system, better to fix the different size materials.
7. Tshape dragon gate makes 3 axis working stable, high speed and accuracy. Dragon gate moving, customer can work
on any area of the material.
8. Optional control system, NcStudio/DSP/Mach3, high stability, high efficiency, easy to learn.
9. Continuing working after the break point/power failure, lower the rejection rate.
10. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software,
2D/3D processing, more convenient to using.
Tehnical parameters
Certificate |
CE |
Effective working area |
1300(X)mm*2500(Y)mm*200(Z)mm |
Max.thickness of the materials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
Materials |
Steel pipe welded machine bed, cast iron gantry |
Vacuum system |
Vacuum table with 5.5kw vacuum pump |
Working table |
Aircraft aluminium T slot |
Guide rail |
Linear square guide rail ( Hiwin, Taiwan, diameter 20mm) |
Transmission |
Rack for X Y -axis, ball screw for Z-axis |
Driving mode |
Stepper motor ( XY Z-axis: 86BYGH450A) |
Spindle motor |
3.0kw+5.5kw water cooling |
Cutters diameter |
3.175mm, 4mm, 6mm, 8mm, 10mm, 12.7mm |
Voltage |
AC 380V 50/60Hz ,three phase |
Spindle speed |
0-18000rpm/min |
Empty traveling speed |
0-25000mm/min |
Engraving speed |
0-12000mm/min |
Machine accuracy |
0.03mm |
Resetting accuracy |
0.05mm |
Diagonal error |
1mm |
Control system |
NcStudio |
Motor wire |
High soft specially for Numerical Control( 4*0.75) |
Spindle wire |
Shielding high soft (3*1.5) |
Suitable software |
Artcam, Type3, Ucancam V9,etc |
Software when delivery |
Artcam |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
Other models you may be interested in
ZK-3030 300*300mm ZK-4040 400*400mm ZK-6060 600*600mm
ZK-6090 600*900mm ZK-1212 1200*1200mm ZK-1215 1200*1500mm
ZK-1218 1200*1800mm ZK-1224 1200*2400mm ZK-1530 1500*3000mm
ZK-2030 2000*3000mm
Our CNC Router's Configuration/Working Area/ Color Can Be Changed Just According To Your Need!
