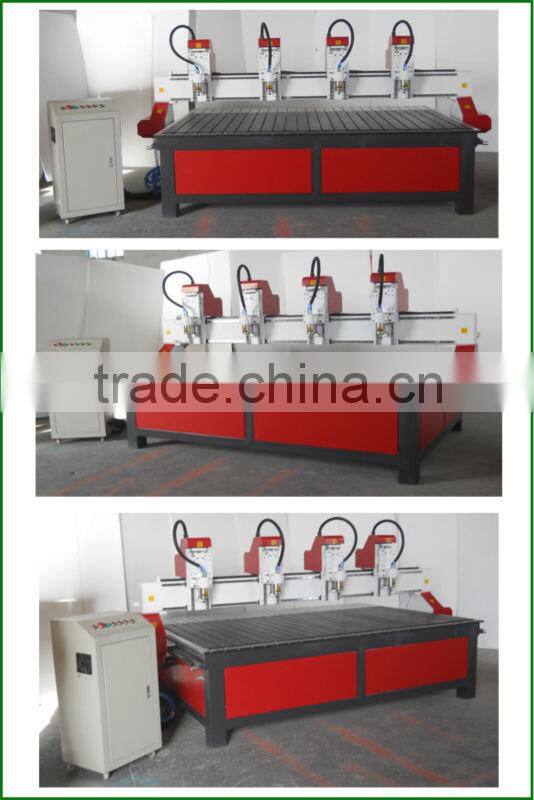

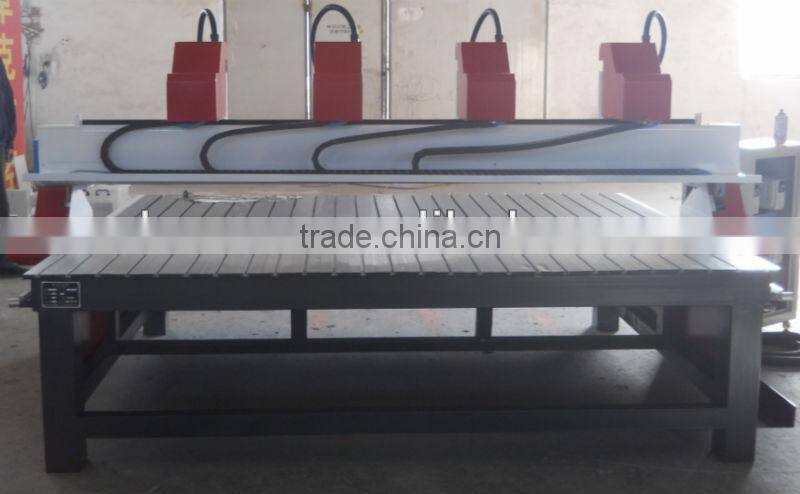

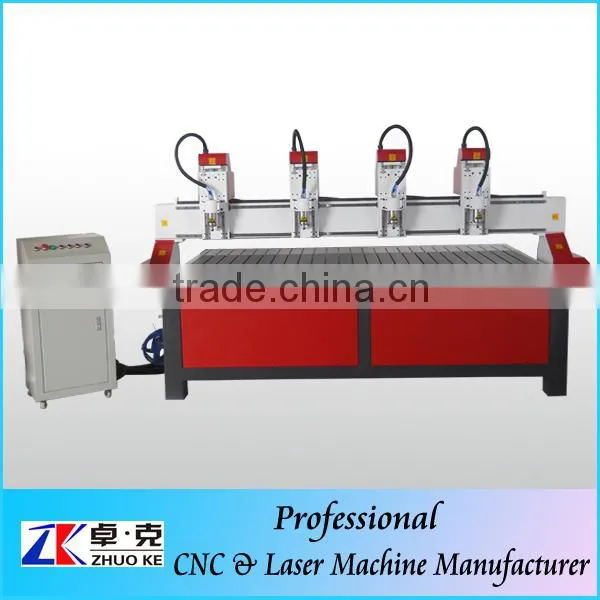

CNC Multi-Head Engraving Machine With 4 Spindles ZK-2514-4
Applicable Industries

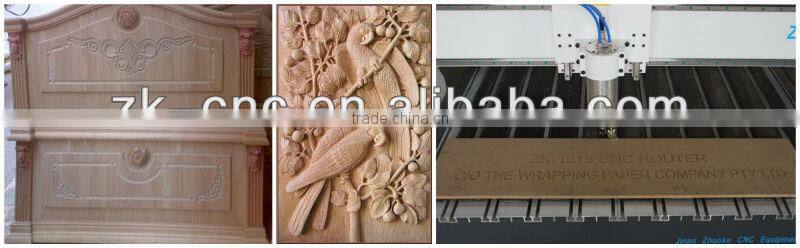

Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo
wave board processing, panel furniture, painting door, paint-free door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving
Other industry
Advertising industry: advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and
decorative products making
Machine features
1. The machine body structure adopt high quality steel pipe welding, with geometry frame structure, strong bearing
strength, processing jitter low.

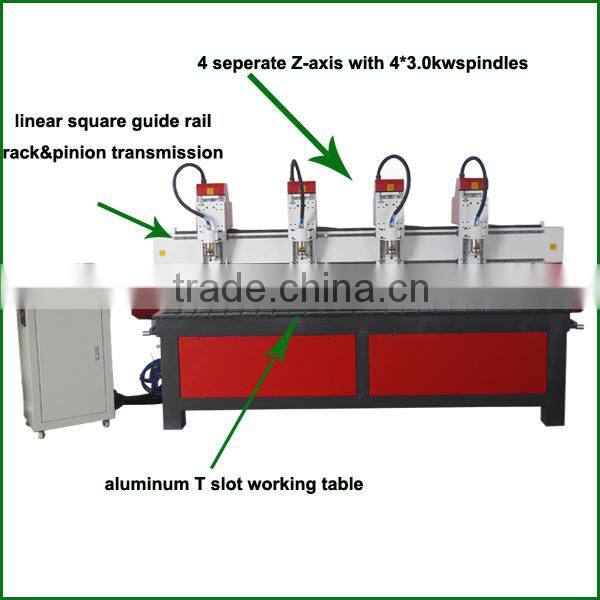

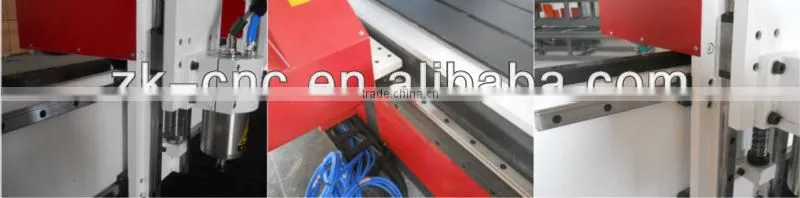

2. Machine 3 axis adopt Taiwan linear square guide rail, double class four row ball slider, operating smoothly, high
accuracy, durable.
3. XY axis adopt super-modulus gear pinion with high speed and accuracy. At the same time, Z axis use imported ball screw, high precision,
lower knives accurately

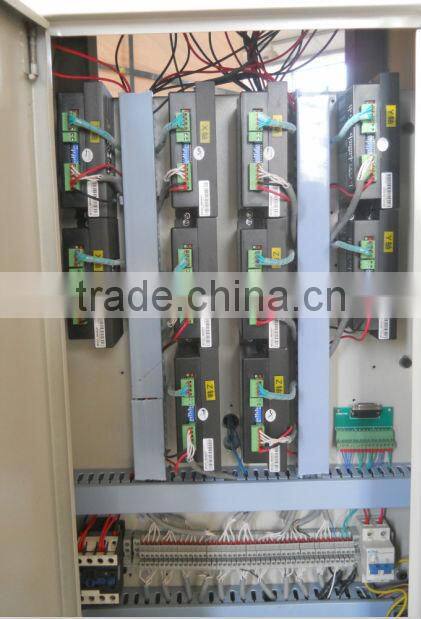

4. Adopt highspeed step motor and drivers. Two motors for Y axis make machine operating more sable and higher accuracy.
5.4* 3.0kw water cooling spindle on 4 Z-axis, improving the processing efficiency
6 Tshape dragon gate makes 3 axis working stable, high speed and accuracy. Dragon gate moving, customer can
work on any area of the material.

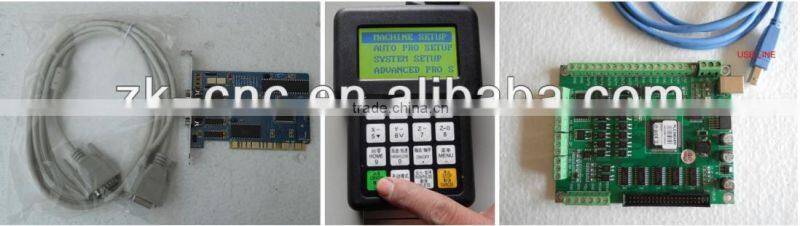

7. Optional control system, NcStudio/DSP/Mach3, high stability, high efficiency, easy to learn.
8. Stainless steel water slot cooling system, ensuring the processing for the hard materials, metal stone...
9. Continuing working after the break point/power failure, lower the rejection rate.
10. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM
software, 2D/3D processing, more convenient to using.
Technical parameters
Items |
Description |
Optional items |
Certificate |
CE |
|
Effective working area |
2500(X)mm*1300(Y)mm*200(Z)mm |
|
Max.thickness of the meterials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
|
Materials |
Square steel tube machine bed, cast iron gantry |
|
Guide rail |
Linear square guide rail |
Linear round guide rail |
Transmission |
Rack and pinion transmission |
|
Driving mode |
Stepper motor |
|
Spindle motor |
3.0kw water cooling |
Or 5.5kw or air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-60000mm/min |
|
Engraving speed |
0-25000mm/min |
|
Diagonal error |
0.5mm |
|
Machine accuracy |
0.03mm |
|
Control system |
NcStudio | Or DSP offlineor MACH 3 |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Compatible software |
Artcam, Type 3, Ucancam,etc |
|

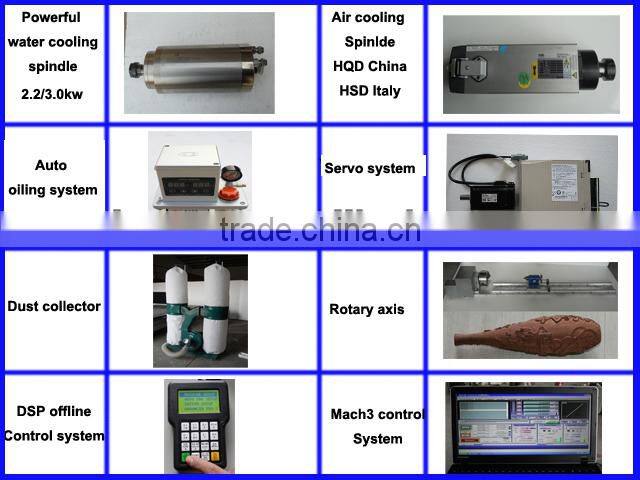

Optional items
Packing: 12CBM, 1300kg
Shipping: EXW/FOB/CIF/DDU/DDP... according to your need
http://zk-cnc.en.china.cn/company_profile.html#top-nav-bar
For a formal quotation, pls let us know:
You will use the cnc router for what kind of materials?
Engraving or cutting?
What size working area you need?
Main procedure for ordering the cnc router
1. Confirm the machine suitable configuration for you
2. We send you the proforma invoice with the final price, our bank information
3.You take the bank slip to bank to make the deposit
4. We start to produce the machine for you, about 3-10 working days, after finished, will send you pictures and videos for checking
5. The ship departure, we send you the copy of bill of lading and other documents, if no problem, you pay us balance, we will send you all the documents.
More discounts on the end of China Lunar Year, just feel free to contact us!
