2 Heads 2 Rotary Axis Flat Cylinder Furniture Engraving Machine CNC Router DSP A18 4 Axis System ZK-1325
- 280 Set / Sets per Month
- Guangzhou/Shanghai/Qingdao or according to your need
- T/T D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | Zhuoke | Model Number: | ZK-1325 | Voltage: | AC 220V/380V or according to your standard |
Power(W): | 3.5kw*2 | Dimension(L*W*H): | 3200*2100*1650(L*W*H) | Weight: | 1300kg |
Certification: | CE | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

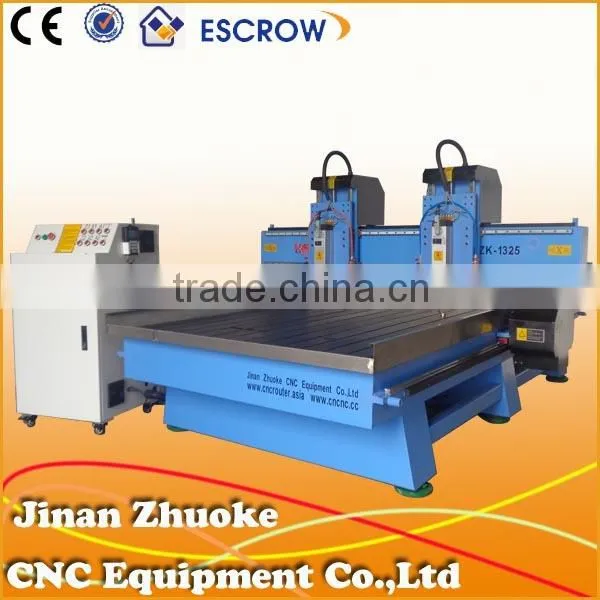

2 Heads 2 Rotary Axis Flat Cylinder Furniture Engraving Machine CNC Router DSP A18 4 Axis System ZK-1325

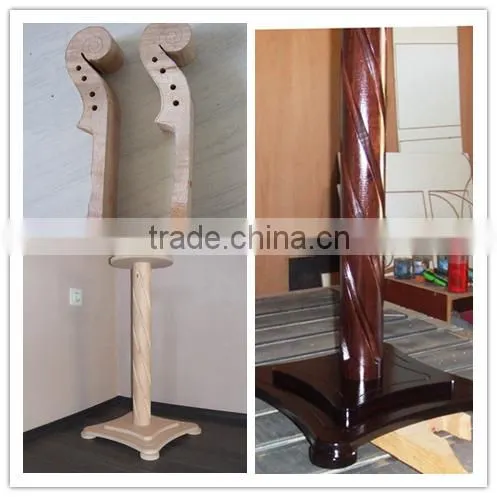

Applicable Industries
Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo
wave board processing, panel furniture, painting door, paint-free door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving
Other industry
Advertising industry: advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and
decorative products making
Applicable Materials
color board, plastic plate, luminous panel, organic glass, aluminum, copper, sliver, gold, iron, stainless steel and
other materials.
Machine features
1. The machine body structure adopt high quality steel pipe welding, with geometry frame structure, strong bearing
strength, processing jitter low.
2. Machine 3 axis adopt Taiwan linear square guide rail, double class four row ball slider, operating smoothly, high
accuracy, durable.
3. XY axis adopt super-modulus gear pinion with high speed and accuracy. At the same time, Z axis use imported ball screw, high precision, lower knives accurately
4. Adopt highspeed step motor and drivers. Two motors for Y axis make machine operating more sable and higher accuracy.
5. Double spindle heads with double 3.5kw China HQD air cooling spindle match with domestic well-known brand of high power watercooled frequency conversion brushless motors, small noise, strong and free maintenance, continuous working,
6 Tshape dragon gate makes 3 axis working stable, high speed and accuracy. Dragon gate moving, customer can
work on any area of the material.
8. DSP A18 4 axis controlsystem supporting XYZA-axis moving together , high stability, high efficiency, easy to learn.
9 Continuing working after the break point/power failure, lower the rejection rate.
10 Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM
software, 2D/3D processing, more convenient to using.
Technical parameters
Items | Description | Optional items |
Certificate | CE |
|
Effective working area | 130(X)mm*2500(Y)mm*250(Z)mm |
|
Max.thickness of the meterials | ≤250mm(the distance between Z-axis and the bottom of the working station) |
|
Materials | Square steel tube machine bed, cast iron gantry |
|
Guide rail | Linear square guide rail, diameter 25mm | Linear round guide rail |
Transmission | Rack and pinion transmission |
|
Driving mode | Stepper motor |
|
Spindle motor | 3.5kw HQD air cooling system | Or 5.5kw or air cooling |
Spindle speed | 0-24000rpm/min |
|
Empty traveling speed | 0-60000mm/min |
|
Engraving speed | 0-25000mm/min |
|
Diagonal error | 0.3mm |
|
Machine accuracy | 0.03mm |
|
Control system | DSP 4 axis, A18 | Or NcStudio or MACH 3 |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
|
Compatible software | Artcam, Type 3, Ucancam,etc |
|
Also have other models
ZK-3030 300*300mm ZK-4040 400*400mm ZK-6060 600*600mm
ZK-6090 600*900mm ZK-9015 900*1500mm ZK-1212 1200*1200mm
ZK-1215 1200*1500mm ZK-1218 1200*1800mm ZK-1224 1200*2400mm
ZK-1530 1500*3000mm ZK-2030 2000*3000mm
Packing: 13CBM, 1300kg
Shipping: EXW/FOB/CIF/DDU/DDP... according to your need
