Model |
Dimension(mm) |
Voltage(v) |
Power(w) |
HS-TC Φ 125×51 |
125×51 |
230 |
500 |
HS-TC Φ 105×66 |
105×66 |
230 |
800 |
HS-TC Φ 185×51 |
185×51 |
230 |
1100 |
HS-TC Φ 190×85 |
190×85 |
230 |
1500 |
HS-TC Φ 220×75 |
220×75 |
230 |
1700 |
HS-TC Φ 180×90 |
180×90 |
230 |
1900 |

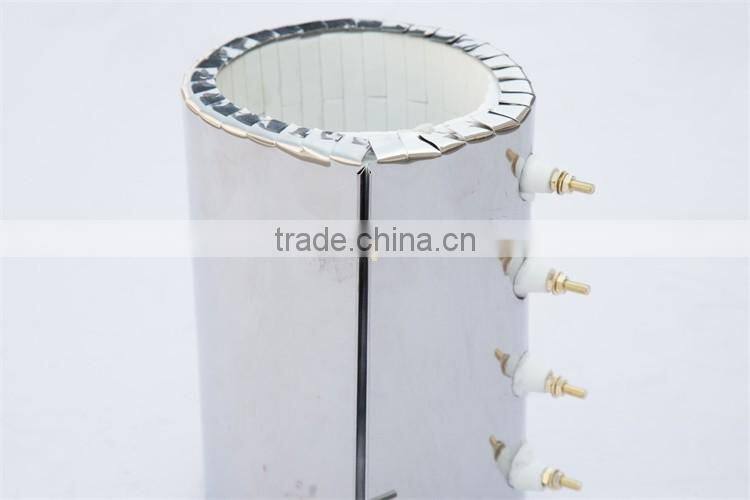

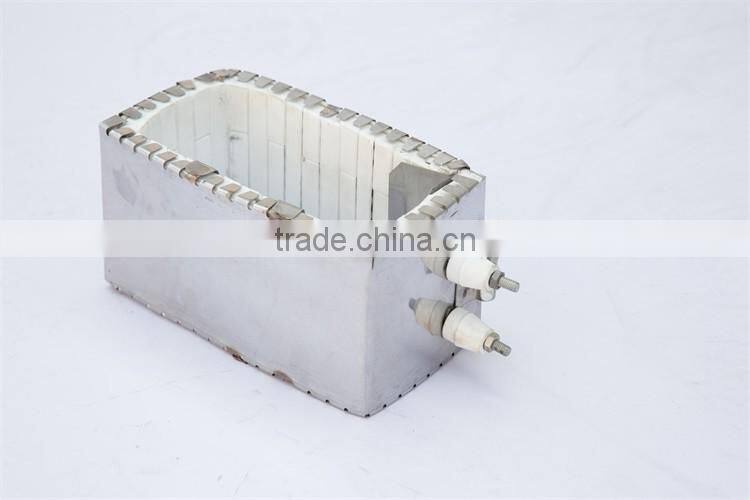

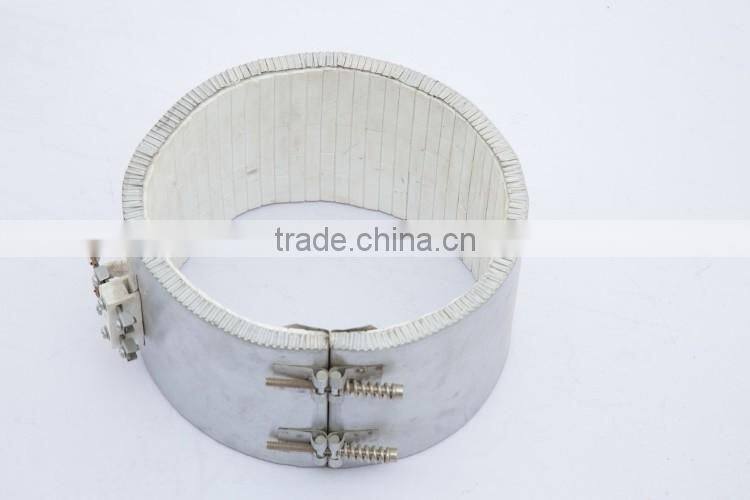

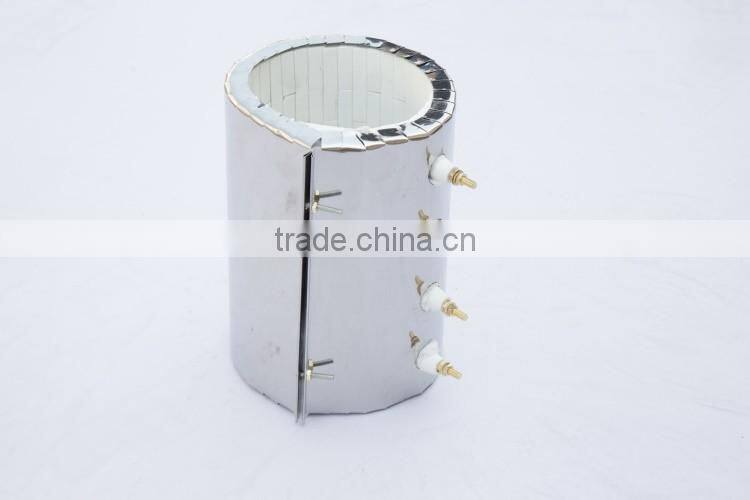

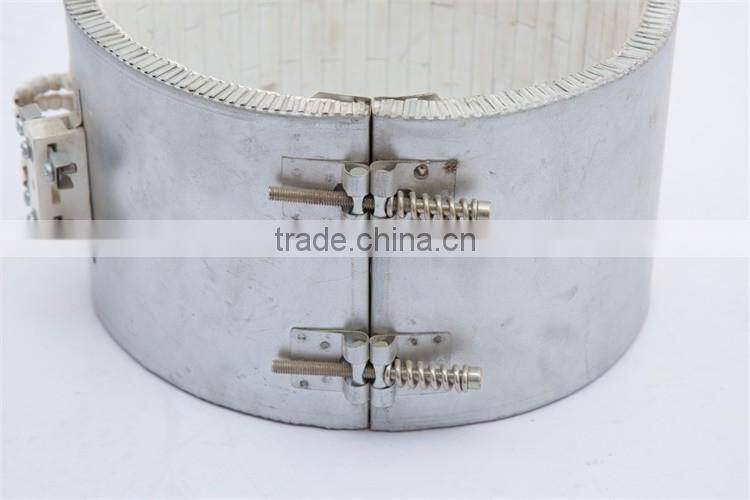

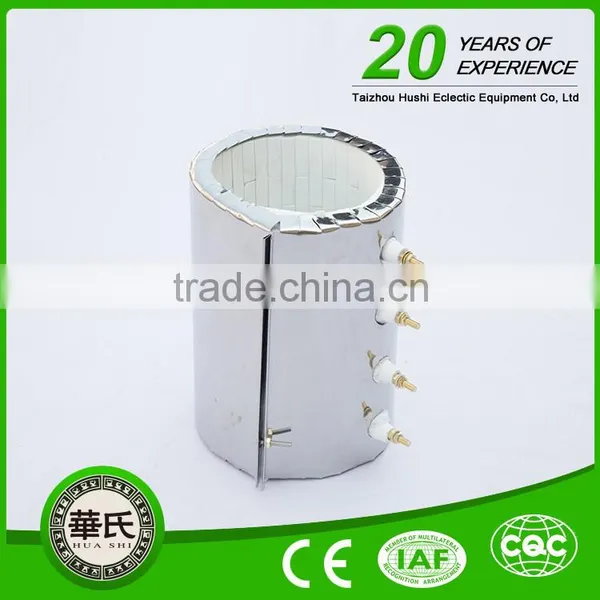

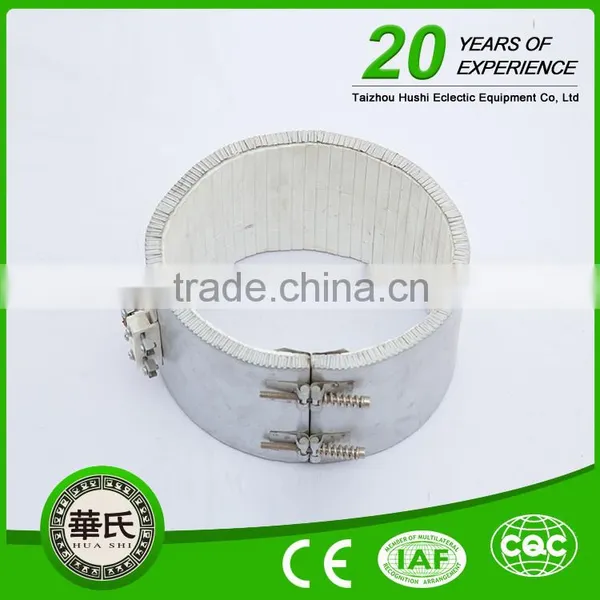

| General Information | Ceramic insulated band heaters are constructed by winding a nichrome ribbon around ceramic insulation and encapsulated in a stainless steel sheath. They are available in an extensive variety of sizes and shapes with options for holes, notches and cut-outs. A number of threaded terminals, wire lead options and terminal boxes offer great flexibility for field wiring. With temperature capabilities of up to 700°C, these band heaters are ideal for plastic extruder processing applications and for anywhere heat is needed on a flat or curved surface. |
| Applications | 1. Plastic injection moulding machine; |
| Characteristics |
1. Sheath Material: Stainless Steel 2. Heating Element: Nichrome Resistance Wire 3. Insulation Material: Ceramic 4. Terminals: Threaded Terminals, Lead Wire & Terminal Box 5. Wattage Density: 5 w/cm2 Max. 6. Working Temperature: up to 700C 7. Shape: Band |
