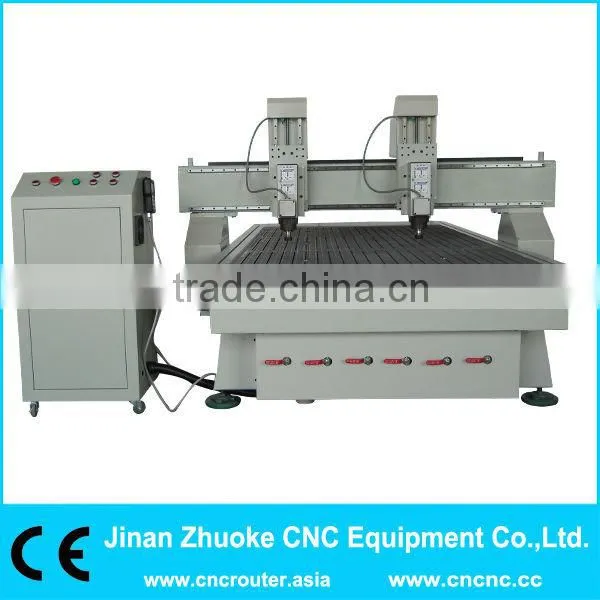

Wood working CNC Router With 2 Air Cooling Spindles/Vacuum Table/DSP Control ZK-1325-2
- 280 Set / Sets per Month
- Qingdao or according to your need
- T/T D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | Zhuoke | Model Number: | ZK-1325-2 | Voltage: | AC 220V/380V |
Power(W): | 5.5kw*2 | Dimension(L*W*H): | 3180*2280*1500mm | Weight: | 1300kg |
Certification: | CE |
Product Description
Wood working CNC Router With 2 Air Cooling Spindles/Vacuum Table/DSP Control ZK-1325-2
Application
Mainly used for relief processing, wood door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving, screen, calligraphy tablet design, wood furniture, computer tables, and so on.
Features
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped with T type gantry and T type square steel tube machine bed.
3. Equipped with 2 spindle heads, each one is 5.5kw, air cooling, Colombo, Italy brand, more poweful, good perfomance, can processing several work pieces by one time, saving time and improving the efficiency.
4.The spindle heads distance is adjustable according to the work piece processing size.
5. It can also just open any one spindle head when working.
6. DSP offline control system, when working no need computer, just using the USB disk to store files, more convenient and easy to operate.
7.Linear square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum system, vacuum table+5.5kw vacuum pump, better to suck the different size materials.
9.Function of re-carving after break point and power off, reducing the materials wasting.
11. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Technical parameters
Items | Description | Optional items |
Effective working area | 1300(X)mm*2500(Y)mm*200(Z)mm |
|
Max.thickness of the meterials | ≤200mm(the distance between Z-axis and the bottom of the working station) |
|
Materials | Square steel tube machine bed, cast iron gantry |
|
Guide rail | Linear square guide rail | Linear round guide rail |
Transmission | Rack and pinion transmission |
|
Driving mode | Stepper motor |
|
Spindle head | 2 |
|
Spindle motor | 5.5kw*2, air cooling, Colombo, Italy | Or water cooling |
Spindle speed | 0-24000rpm/min |
|
Empty traveling speed | 0-60000mm/min |
|
Engraving speed | 0-25000mm/min |
|
Resetting accuracy | 0.05mm |
|
Control system | DSP offline | Or NcStudio or MACH 3 |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
|
Compatible software | Artcam, Type 3, Ucancam,etc |
|
Packing size | 3180*2280*1500mm |
|
Gross weight | 1300kg |
|
Reference machine pictures
Samples
OUR CNC ROUTER CAN BE CUSTOMIZED JUST ACCORDING TO YOUR NEED!
