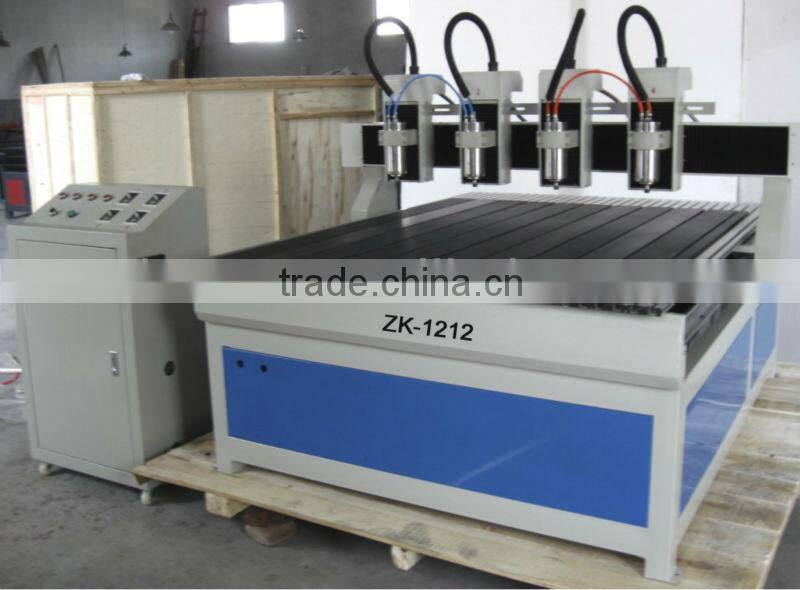

AdvertisingCNC Engraving Machine with 4 spindle heads (ZK-1212-4)
Machine featuers
1.Simple operation and installation, when delivery we will provide the videos for training.
2.Linear round guide rail, high precision and long life time, ball screw for X Y Z-axis, high speed.

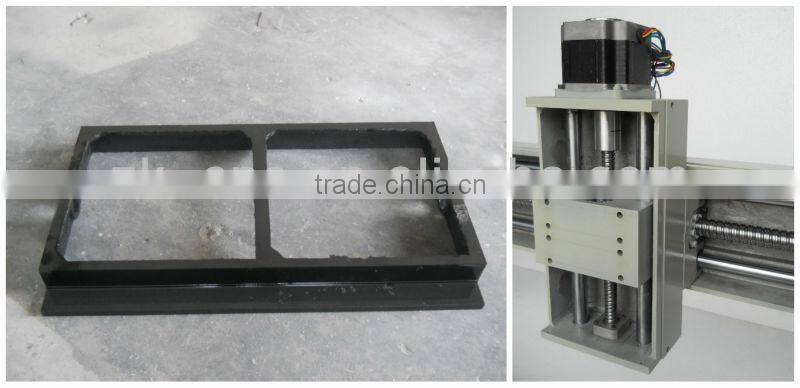

3.Cast iron machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.

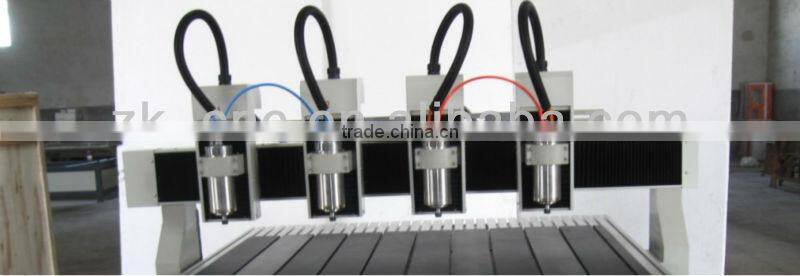

4. Equipped with 1.5 kw and 4 spindle heads, can processing several work pieces by one time, saving time and improving the efficiency.
5. The Spindle heads distance is adjustable according to the work piece processing size.
6. just open any one spindle head when working.

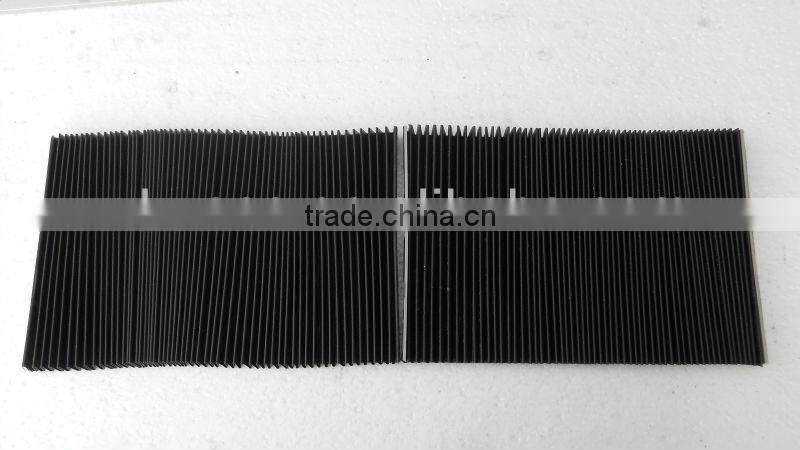

7.X Z axis are dust proof, it makes sure the stady working performance of the machine for long-term using.
8. Function of re-carving after break point and power off, reducing the materials wasting.
9. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Technical Data
Items |
Description |
Optional items |
Effective working area |
1200(X)mm*1200(Y)mm*200(Z)mm |
|
Max.thickness of the meterials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
|
Materials |
Cast iron machine bed, cast aluminium gantry |
|
Guide rail |
Linear round guide rail |
Linear square guide rail |
Transmission |
Ball screw for X Y Z-axis |
|
Driving mode |
Stepper motor |
|
Spindle head |
4 |
|

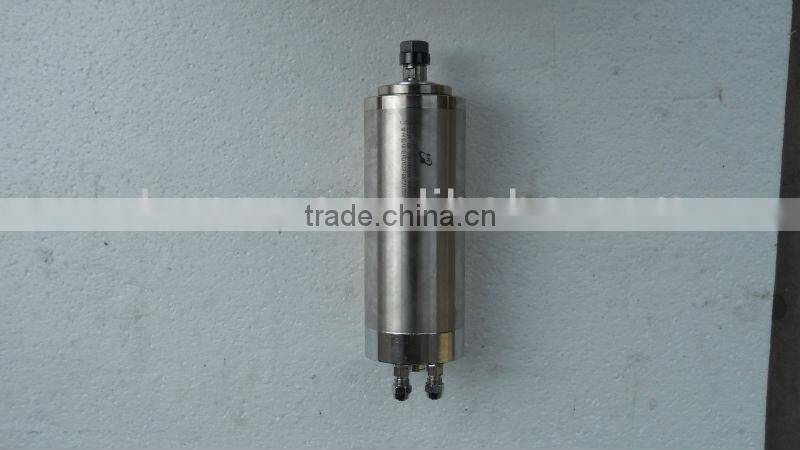

Spindle motor |
1.5kw water cooling |
Or 3.0/2.2kwor air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-8000mm/min |
|
Engraving speed |
0-6000mm/min |
|
Resetting accuracy |
0.05mm |
|
Control system |
PCI NcStudio |
Or DSP offline or MACH 3 |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Compatible software |
Artcam, Type 3, Ucancam,etc |
|
Packing size |
1850*1900*1050mm |
|
Gross weight |
650kg |
|
Applications
Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making
other choice you may like.
ZK-3030,ZK-4040,ZK-6060,ZK-6090,ZK-9015,ZK-1215,ZK-1218,ZK-1224,ZK-1325,ZK-2030
