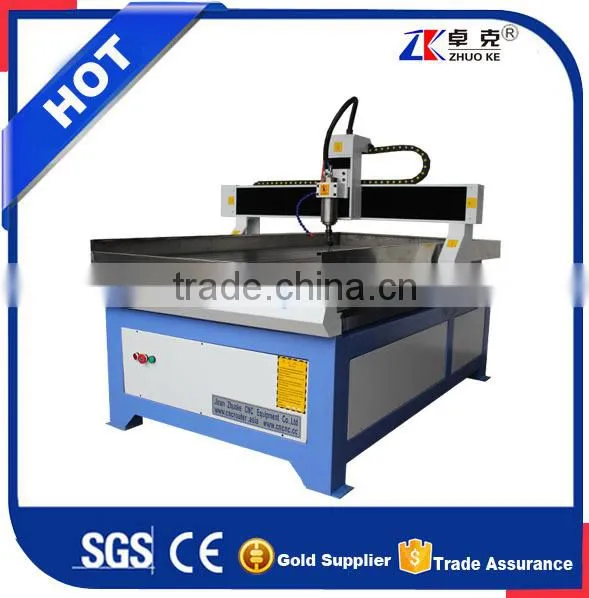

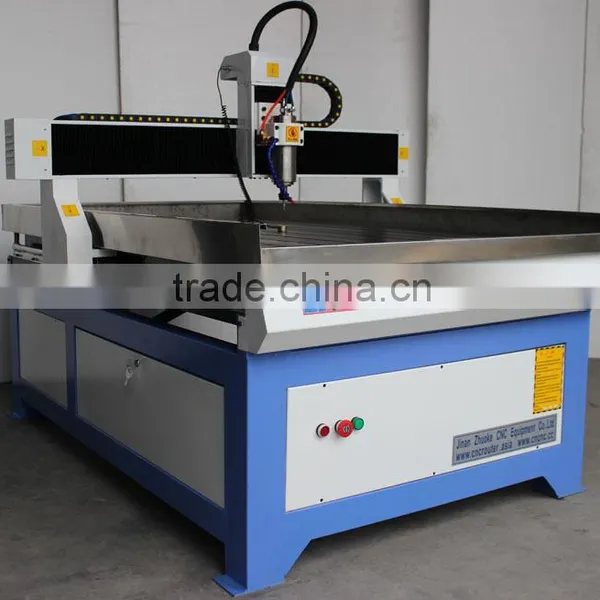

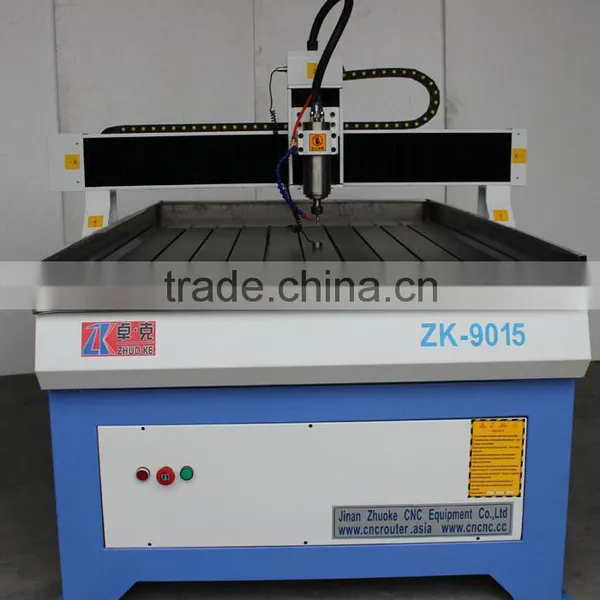

Copper engraving cnc machine 9015
1.Good rigidity square steel tube machine holder, cast iron machine bed ,cast aluminium gantry .good stability, long life time.
2.High accuracy adopted high accuracy grinding ball screw, linear round ( or square guide way for X Y Z-axis, high performance driver.

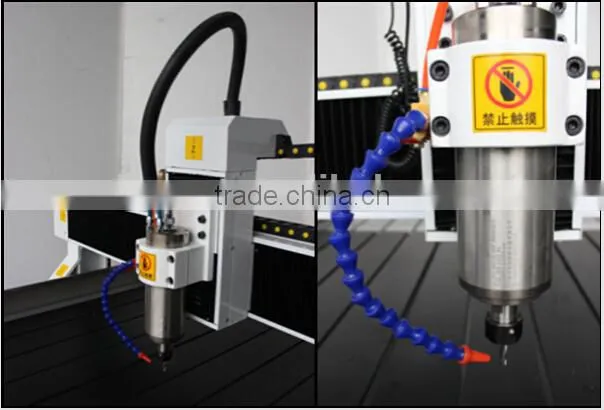

3.Strong cutting force using China famous brand water cooling spindle ( or can choose air cooling spindle) , low noise, strong cutting force, can ensuring long time mass processing.
4.Good extensibility control system, you can choose PCI NcStudio or DSP offline, also can choose rotary axis, dust collector, vacuum table, water tank etc.
Ncstudio control system
5.Intelligent control the system control the processing speed, idle speed and cutting speed, improving the processing speed, extending the cutters lifetime, increasing the rate of the finished products.

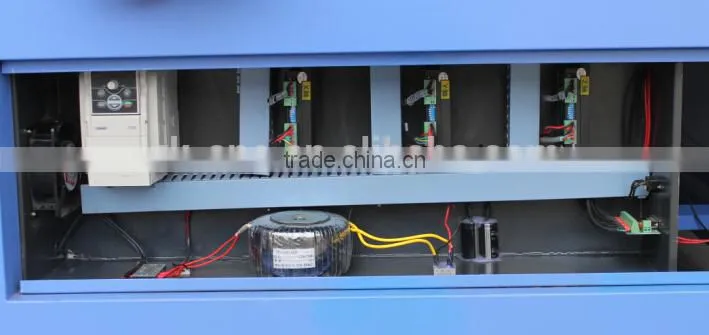

ntrol box

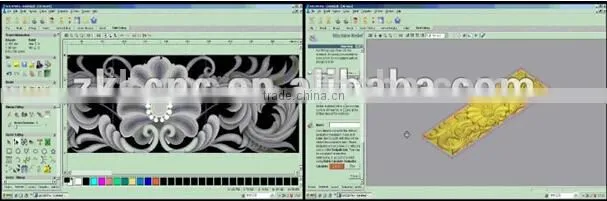

7.Highsoftwarecompatibility supportingType3,Artcam,Castmate,Pro-E,Ucancam V9,all kinds of CAD/CAM software.
Items |
Description |
Items |
Description |
XY-axis working area |
900*1500mm |
Software operating environment |
Windows2000/xp |
Z-axis working area |
150mm or higher |
Spindle power |
2.2kwwater cooling |
Transmission mode |
Ball screw |
Spindle speed |
0-24000rpm/min |
Guide way |
Linearsquare guide way |
Spindle cutter |
3.175,4,6mm |
Biggest feeding height |
>150 mm |
Driving mode |
Stepper motor |
Biggest travelling speed |
7-8m/min |
Control system |
PCI NcStudio or DSP offline |
Biggest engraving speed |
4-6m/min |
Working voltage |
AC220V/50Hz |
Repeat positioning accuracy |
0.05mm |
Engraving command |
G code *u00*mmg*plt |

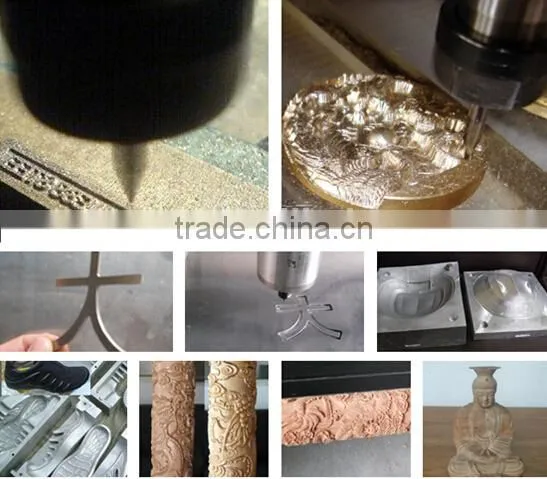

Sutable for all kinds of metal ,such as copper,aluminum,iron,stell,stainless steel,alloy ,also the acrylic ,wood ,MDF,double color board,stone ,jade ,etc.
Metal, copper,iron, aluminium, steel, stainless stee...2D/3Dengraving, thin metal cutting.

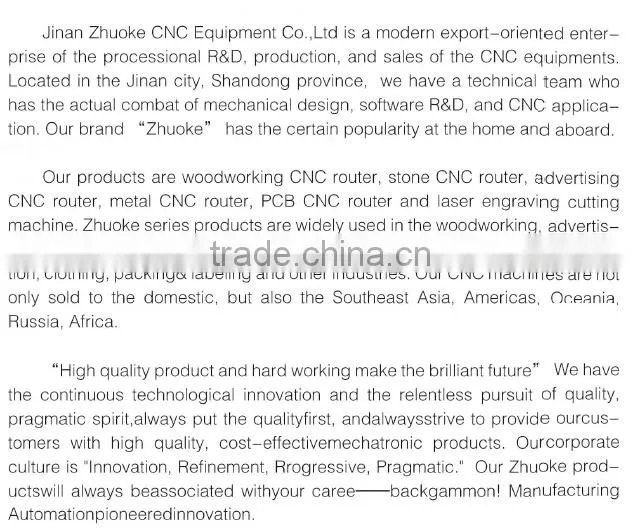

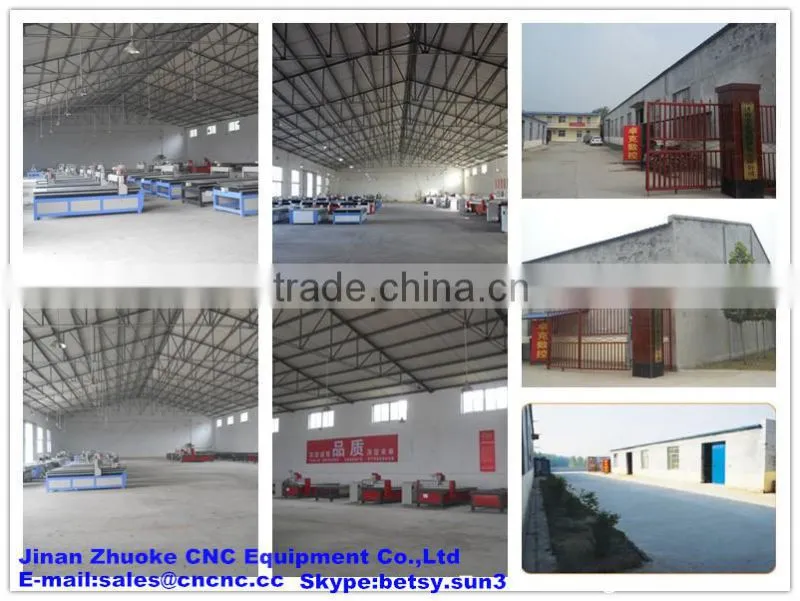

Our Factory
1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
4) Payment
Our company payment is T/T. In order to give customers more confidence, you can also pay 30%, when we finished the machine, will send machine pictures and vedio to you. then pay the balance. We shipped.
If you have any question about our cnc router, just feel free to contact me.
