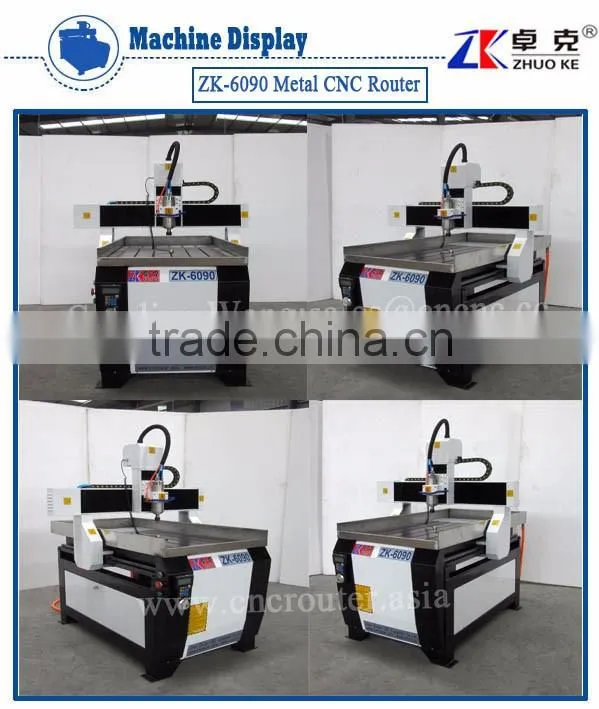

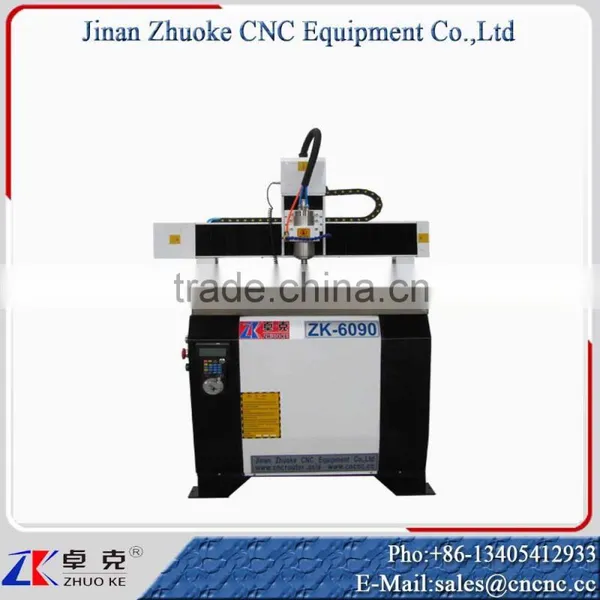

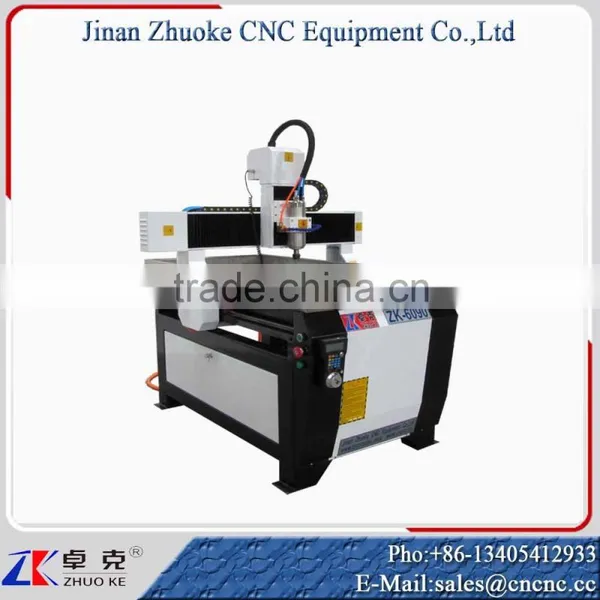

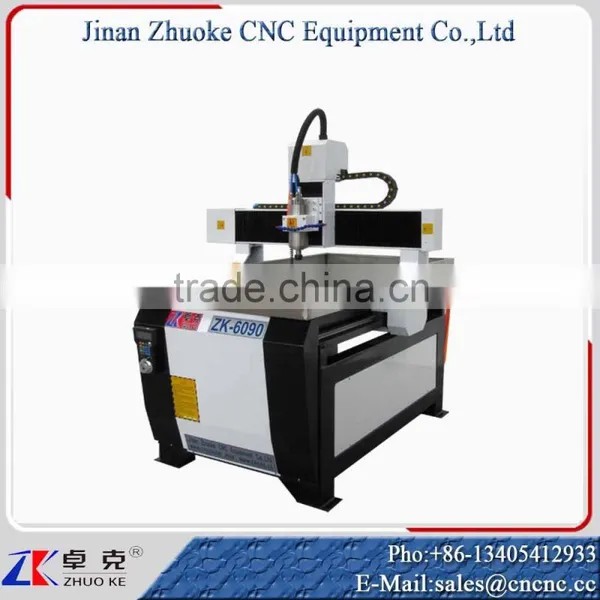

Hybird Servo Motor Small CNC Router Machine For Aluminum Copper Wood ZK-6090 With Wireless Handwheel Mach3 Control System
Technical Data:
Items |
Description |

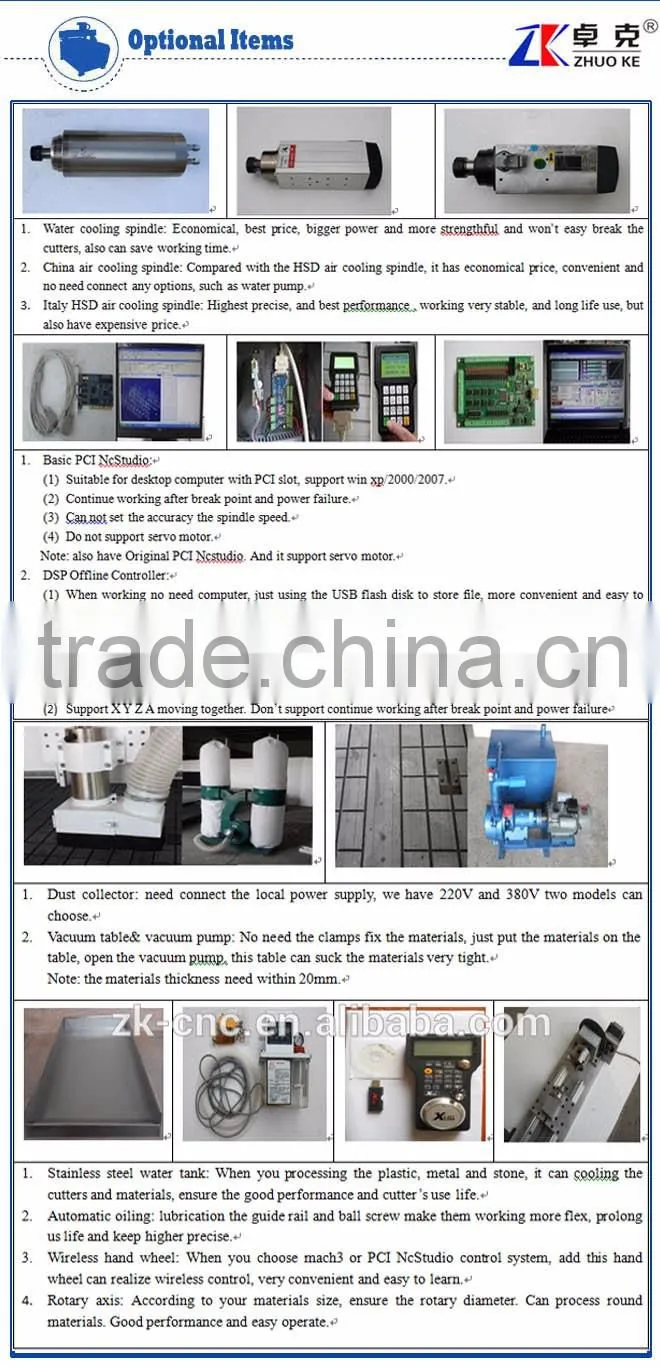

Optional |
Effective working area |
600(X)mm*900(Y)mm120(Z)mm |
z-axis lower or higher as you need |
Max. thickness of the materials |
≤120mm(the distance between Z-axis and the bottom of the working station) |
|
Materials |
Cast iron machine bed, cast aluminum gantry |
|
Working table |
Aircraft aluminum T slot |
|
Guide rail |
Linear square guide rail
|
Or linear round guide rail |
Transmission |
Ball screw for X Y Z-axis |
|
Driving mode |
Hybird servo motor |
Stepper motor |
Spindle motor |
2.2kw water cooling |
Or 3.2kw/air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-8000mm/min |
|
Engraving speed |
0-6000mm/min |
|
Resetting accuracy |
0.05mm |
|
Control system |
Mach3 |
PCI NcStudio or DSP Offline |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Packing size |
1520*1200*1600mm |
|
Gross weight |
175kg |
|
Applicable Industries:
Good at in processing all kinds of small workpiece, widely uesd in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc.
Applicable Materials:
Suitable for all kinds od metal, such as copper, aluminum, iron, stell, stainless steel, alloy, also the acrylic, wood, MDF, double color board, stone, jade, ect.
Machine features:
1. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
2. Adopt 2.2kw water cooling spindle.
3. The machine adopts working table movement, it can process any kinds of materials freely.
4. Three axis adopt imported ball screw and cirle orbit, stable working, high precision and long life time.
5. X axis is dustproof.It makes sure the steady working performance of the machine for long-term using.
6. Well compatibility:CAD/CAM designing software, e.g.Type3/Artcam/Castmate/Wentai etc.
7. Has the function of forecasting process time.
8. High precision, the curving and linear speeds are consistent.Adopting execellent parts makes the fault rate to be the lowest one.
