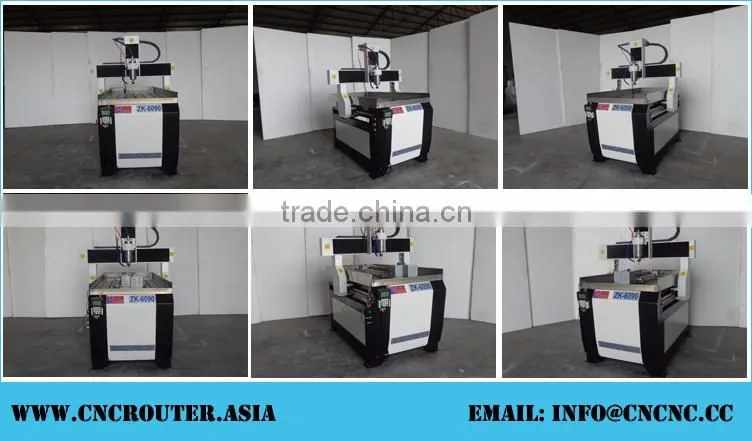

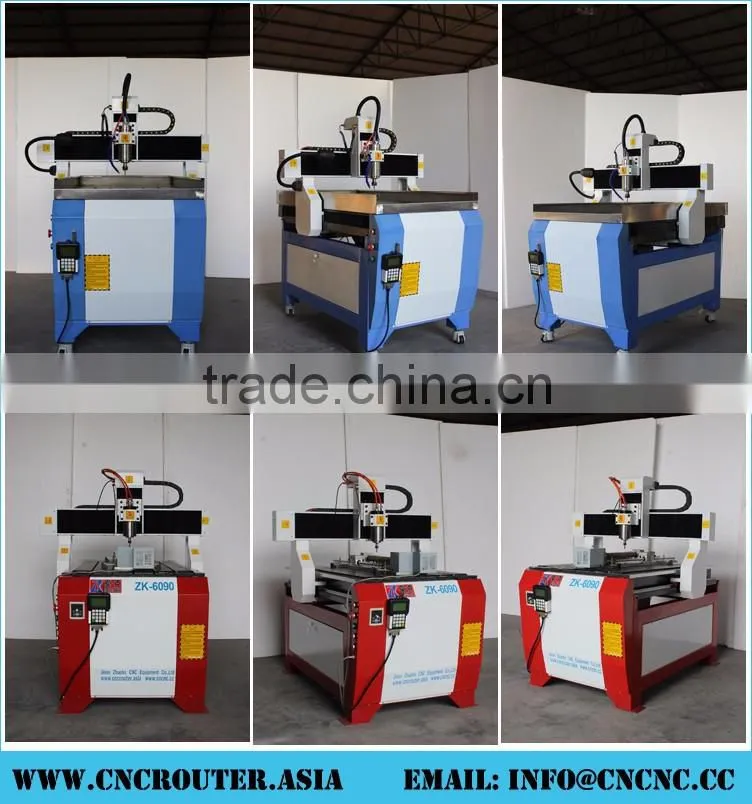

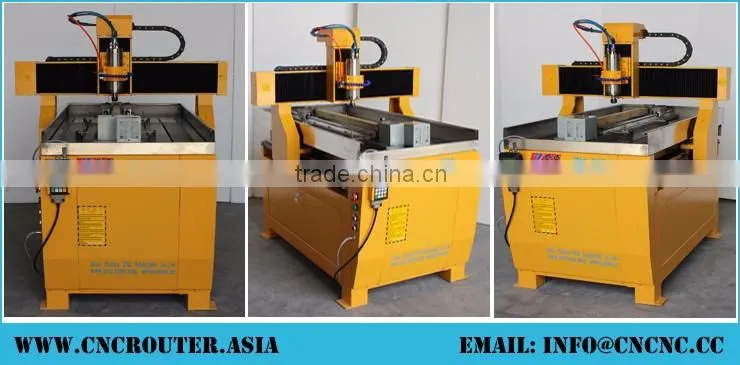

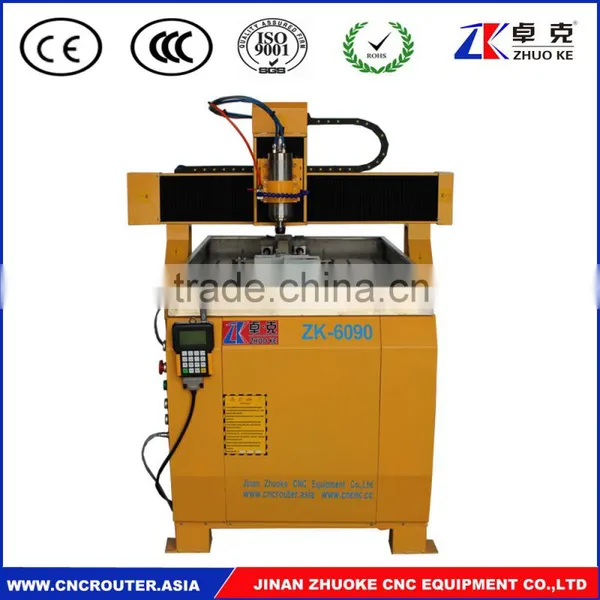

DSP Control Small CNC Router Metal 6090 With 2200W Spindle Stainless Steel Water Slot Rotary Axis X(600MM)*Y(900MM)*Z(150MM)
- 280 Set / Sets per Month
- Guangzhou/Shanghai/Qingdao or according to your need
- T/T Credit Card PayPal
- Pneumatic flange dot pin engraving machine dot peen metal engraving machinery
- Pneumatic metal stainless steel flange dot pin engraving machine dot peen metal engraving machinery
- VIN number chassis code serial number dot peen marking metal engraving machinery
- Portable handheld dot peen marking machine vin number engraving machinery
- Pneumatic dot peen marking machine metal stainless steel flange dot pin engraving machine
- Pneumatic dot peen marking machine metal stainless steel dot pin engraving machine
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Zhuoke |
Model Number: | ZK-6090 | Rated Power: | 2.2KW | Engraving Speed: | 0-8000mm/min |
Main Axle Rotational Speed: | 0-24000rpm | Feeding Height: | 200mm | Milling Cutter Diameter: | 3.175mm, 4mm, 6mm,8mm,10mm,12.5mm |
Application: | Engraving and cutting | Dimensions: | 1500*1200*1600mm | Weight: | 350kg |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
DSP Control Small CNC Router Wood 6090 With 2200W Spindle Stainless Steel Water Slot Rotary Axis X(600MM)*Y(900MM)*Z(150MM)
Certificate | CE |
Effective working area | 600(X)mm*900(Y)mm*200(Z)mm |
Materials | Whole cast iron |
Working table | Aircraft aluminium T slot |
Dust proof system | For X Z-axis |

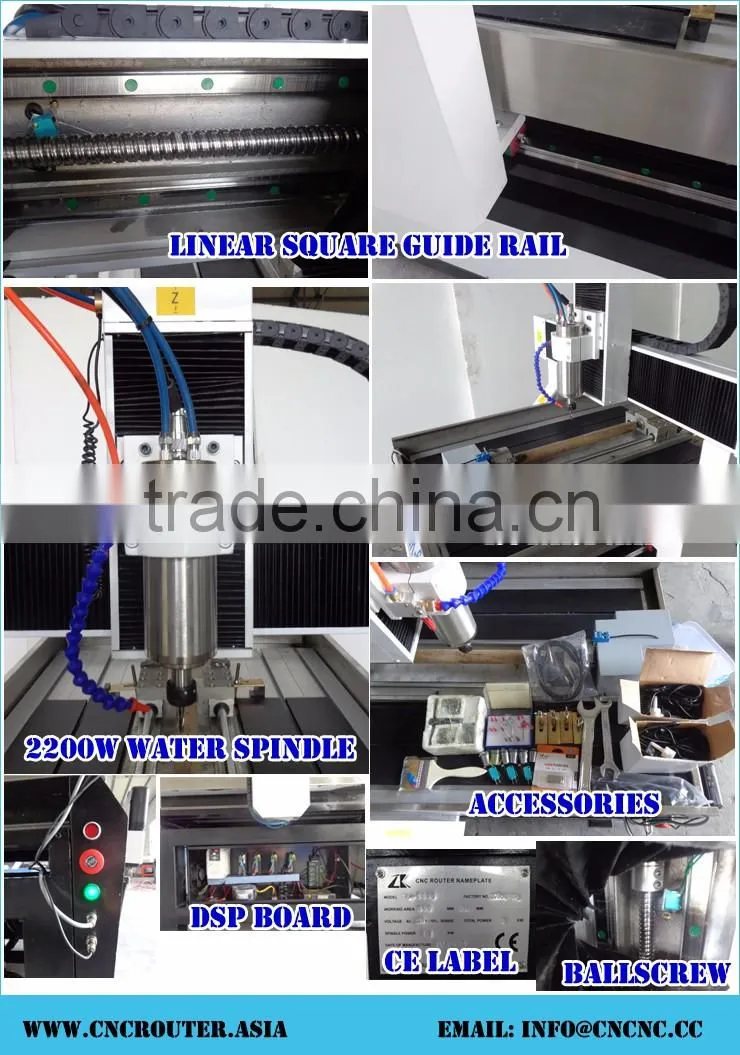

Guide rail | Linear square guide rail for XYZ axis |
Transmission | Ball screw for X Y Z-axis ( XY Z-axis: #1605) |
Driving mode | Stepper motor ( XY Z-axis: 57BYG-311) |
Spindle motor | 2.2 kw water cooling |
Spindle collet type | ER 20 |
Tools diameter | 3.175mm, 4mm, 6mm,8mm,10mm,12.7mm |
Voltage | AC 220V 50/60Hz, single phase |
Spindle speed | 0-24000rpm/min |
Empty travelling speed | 0-8000mm/min |
Engraving speed | 0-6000mm/min |
Machine accuracy | 0.03mm |
Diagonal error | 1mm |
Resetting accuracy | 0.05mm |
Control system | DSP Offline Control |
Spindle wire | Shielding high soft (3*1.5) |
Compatible software | Artcam, Type3, Ucancam, etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 °C |
Relative humidity | 30%-75% |
Applicable Industries
Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction
equipment, mould products, industrial mold, etc.
Applicable Materials
Suitable for all kinds of metal, such as copper, aluminum, iron, stell, stainless steel, alloy, also the acrylic, wood,
MDF, double color board, stone, jade, ect.
little shock, moving stability.
2. Imported high quality ball screw, linear round guide rail or linear square guide rail, precision segmentation, to achieve the high precision engraving.
3. Low noise 1.5kw/2.2kwwater cooling spindle, high rotated speed (24000rpm), can realize only
diameter 1mm tools engraving on the hardness materials.
4. Auto tool calibration help you to set the tools, not break the tool nose, ensuring the workpiece
high precision processing.
5. Water cooling system for the metal materials, cooling the tools, avoiding the high temperature
breakingtools.
6. Famous brand electronic parts, make the machine high precision and stable moving.
7.DSP offline control system, when working no need computer, just store files into USB disk, let it
control cnc router working, more conveient and easy to operate.
8. Continuing working after the break point/power failure, lower the rejection rate.
9. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such
CAD/CAM software, 2D/3D processing, more convenient to using.
ZK-3030 300*300mm ZK-6060 600*600mm ZK-6090 600*900mm
ZK-9015 900*1500mm ZK-1212 1200*1200mm ZK-1215 1200*1500mm
ZK-1218 1200*1800mm ZK-1224 1200*2400mm ZK-1325 1300*2500mm
ZK-1530 1500*3000mm ZK-2030 2000*3000mm
Packing : 2.4CBM, 220kg, one plywood case
Shipping: EXW/FOB/CIF./DDP/DDU.... according to your need
Want more information , Please go to our website :
Contact Us
- Jinan Zhuoke CNC Equipment Co., Ltd.
- Contact nameYvonne Zhu
- Phone86-531-88267846
- AddressNorth Of Fujiazhuang, Hehualu St., Licheng District
