rotary axis Small CNC Machine Price with USB interface controller ZK-6090 600*900mm

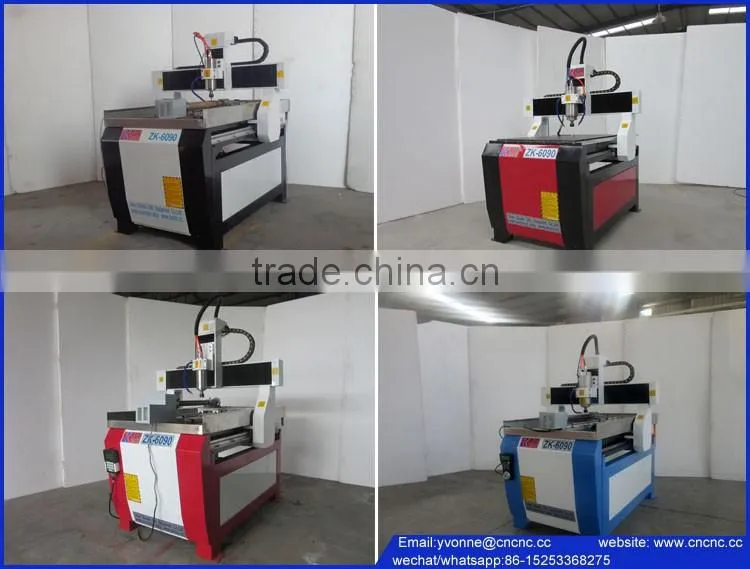

Machine color optional:
Machine introduction:
- Cast aluminum machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.
- Imported ball screw transmission for X Y Z-axis, good stability, high precision and long life time. Taiwan TBI optional.
- XYZ linear square guide rail, Taiwan HIWIN,diameter 20mm
- Stainless steel water slot cooling system, cooling for the tools and materials, necessary for the metal/stone/glass processing.
If you do not need to work on matel stainless steel water slot is not need.
- Mach3 control system, suitable for desktop computer or laptop. Optional Wireless handwheel for remoting control the machine.
- 3.2kw water cooling spindle, cooling mode is water pump, we will add you one water pump for free.
- Breakpoints, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.
- Can realize the multi-layered 3D processing, fast speed, smooth three-dimensional processing, engraving and cutting.
- Emergency stop button, ensuring the operation safe.
- Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
- Rotary axis for round material. 4th rotary axis. Diameter 80mm, working length 900mm
Machine parameter reference:
Items |
Basic configuration |
Certificate |
CE |
XY-axis working area |
600*900mm |
Material |
Cast iron machine bed, cast aluminum gantry |
Moving way |
Gantry moving |
Working table |
Aircraft aluminum with T slot |
Guide way |
XYZ-axis linear square guide rail |
Driving mode |
XYZ-axis ball screw(XZ:1605,Y:2510) |
Z-axis working area |
150mm |
Max traveling speed |
8000mm/min |
Engraving speed |
6000mm/min |
Mechanical precision |
0.05mm |
Driving method |
hybrid servo system |
Water cooling system |
Water pump for spindle |
Spindle |
3.2 KW water cooling |
Spindle speed |
0-24000rpm |
Collet type |
ER20 |
Tools diameter |
3.175mm, 4mm, 6mm,8mm,10mm,12.7mm |
Control system |
Mach3 control system |
Design software when delivery |
Artcam |
Compatible design software |
Artcam, Type3, Ucancam, JDPaint, MasterCAM |
Command |
G code ,U00, mmg nc,etc |
Running ambient temperature |
0-45 |
Relative humidity |
30%-75% |
Voltage |
AC 220V,50/60Hz, single phase |
| ZK-3030 Metal CNC Router | |
| |
ZK-4040 Metal CNC Router |
| ZK-6060 desktop CNC Router | |
| |
ZK-6090 Metal cnc router |
