2.2kw water cooling spindle engraving cnc router machine with DSP conroller

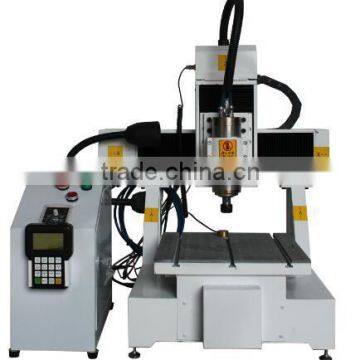

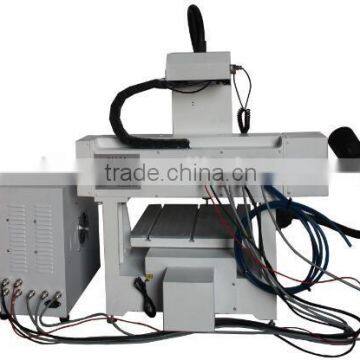

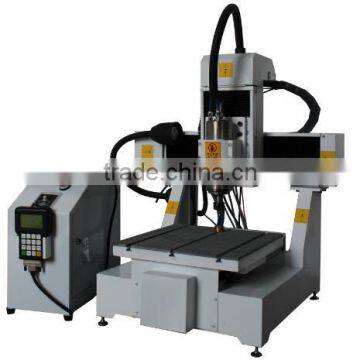

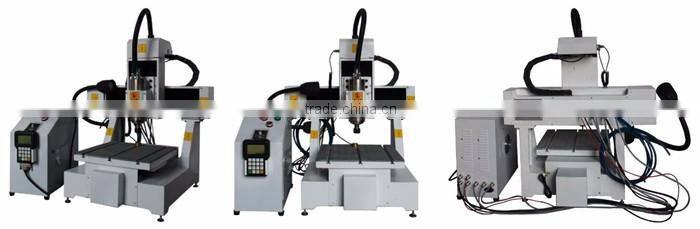

Machine Pictures
2.2kw water cooling spindle ;Whole cast iron ;Linear square guide rail(Hiwin ,Taiwan) ;DSPcontrol system Stepper motor ;ball screw transmission; Dust proof for x z-axis .
Applicable Materials
Suitable for all kinds of metal ,such as copper ,aluminum ,iron ,alloy ,also the acrylic ,wood MDF,double color
board,stone ,jades,etc.
Machine characters
1 Body small ,tight ,whole cast iron ,stable .
2 Imported high quality ball screw transmission ,linear square guide rail (Hiwin ,Taiwan)
3Low noise2.2kw water cooling spindle ,high rotated speed ,can realize only diameter 0.1mm tools engraving on
the hardness
4 Auto tool calibration help you to set the tools ,not break the tools nose,ensuring the workpiece high precision processing
5 Aircraft aluminum T slot working table .
6 Optional control system ,NcStudio /DSP /Mach3 ,high stability ,high efficiency ,easy to learn
7 Dust proof for x z-axis .
8 Good software compatibility ,can compatible with the Artcam /Type3/Ucancam/JDPaint/ such CAD/CAM software ,2D/3D processing,more convenient to using
Machine configuration
Machine |
ZK-3030 |
Materials |
Cast iron machine bed ,cast aluminum gantry |
Effective working area |
300*300*80mm |
Moving type |
Platform moving |
Working table |
Aircraft aluminum T slot |
Guide rail |
Linear square guide rail or linear round guide rail |
Transmission |
Ball screw |
Driving mode |
Stepper motor |
Spindle motor |
2.2water cooling spindle |
Collect type |
ER11 |
Suitable tools diameter |
3.175/4/6/8/10/12.7mm |
Voltage |
AC220V 50/60Hz,single phase |
Spindle speed |
0-24000rpm/min |
Control system |
DSP |
Design software |
Artcam /Ucancam /JDPaint/TYPE 3 |
Optional items |
DSP/Mach3/original NcStudio control system ,air cooling spindle Vacuum table ,dust collector ,computer cabinet ,rotary axis ,water cooling system ,servo motor .etc |
1.Outside Package:Standard export wooden cases
2.Inner package:strech film
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.
