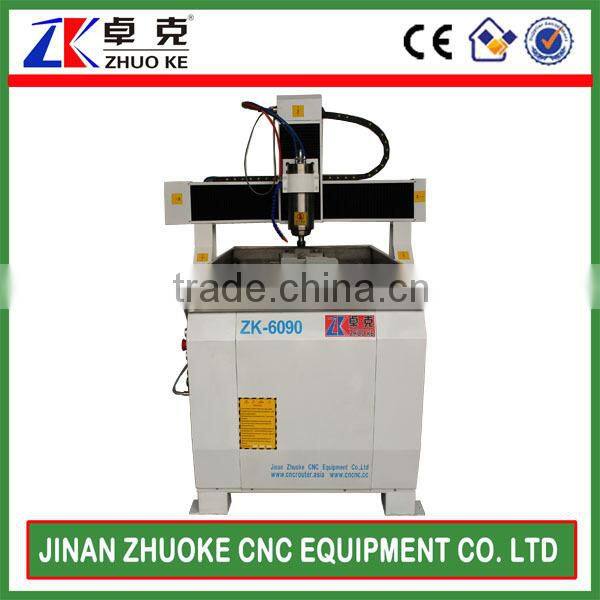

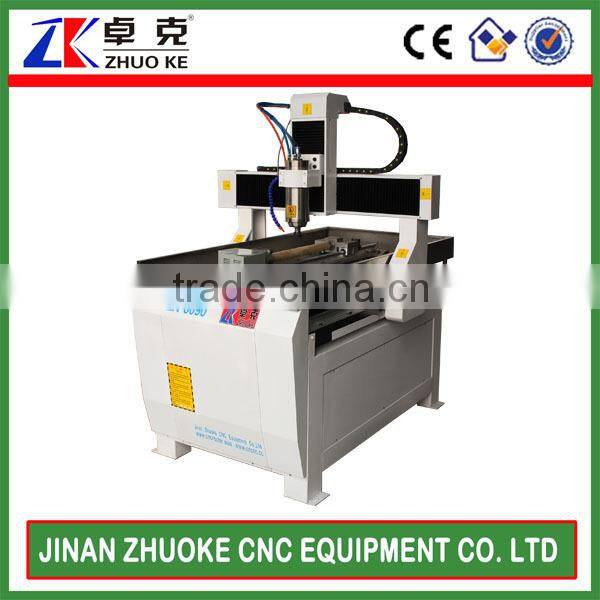

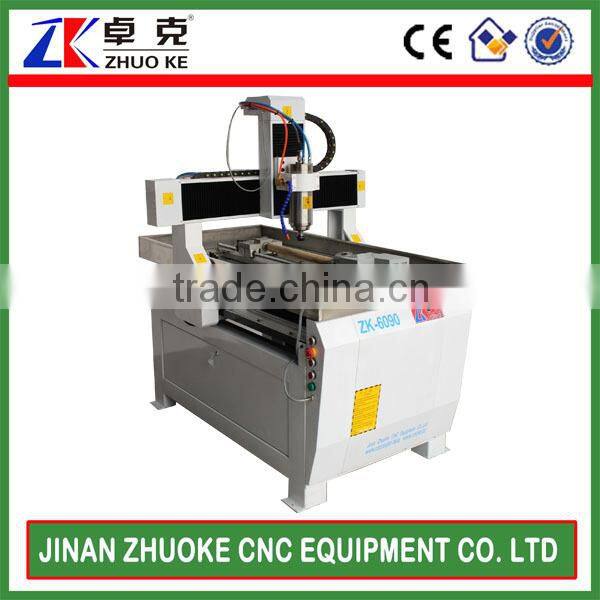

4th Axis Small CNC Router 6090 With 3.2Kw Spindle ZK-6090-3.2Kw
Applicable industry:
Woodworking industry:
cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo wave board processing, panel furniture, painting door, paintfree door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving
Advertising industry:
advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and decorative products making
Metal industry:
Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc.
Stone industry:
Suitable for stone materials, tombstone proessing, artistic relief, advertising & decoration, artware industry, etc.
Other industry:
PCB prototype design...
Machine characters :
1. Whole cast iron machine bed, cast aluminum gantry with dustproof system for XYZ-axis , under impact resistance beam more stronger, higher cutting engraving precision.
2. Imported high quality ball screw, precision segmentation, to achieve the high precision engraving.
3. Adopt imported linear round guide rail with the high precision,ensure machine frame much stability and durability.
4. Using the Leadshine AC driver and 86BYG high power stepper motor , makes the machine run smoothly, and higher efficiency .
5. The 3.5kw China air cooling spindle, motor adopt highspeed water frequency conversion brushless motors from domestic famous manufacturer . not only can cut vigorously, but also can engrave with great precision
6. DSP A 18 4 axis offline control system, when working no need computer, just store files into USB disk, then plug into DSP, let DSP control cnc router working, and supporting XYZA-axis moving together, high stability, high efficiency, easy to learn.
7. 4th axis rotary axis, diameter 100mm, working length 900mm, for the cylinder making.
8. Auto tool sensor/calibration, helping to set the Z-axis height, more convenient.
9. Continuing working after the break point/power failure, lower the rejection rate.
10. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
Technical parameters :
Certificate | CE |
Effective working area | 600(X)mm*900(Y)mm*200(Z)mm |
Max.thickness of the materials | ≤200mm(the distance between Z-axis and the bottom of the working station) |
Moving type | Gantry moving |
Materials | Cast iron machine bed, cast aluminium gantry |
Dust proof system | For X YZ-axis |
Working table | Aircraft aluminium T slot |
Guide rail | Linear round guide rail |
Transmission | Ball screw for X Y Z-axis ( XY-axis: #2510, Z-axis: #1605) |
Driving mode | Stepper motor ( XY Z-axis: 86BYGH450A, 4.0N.M) |
Spindle motor | 3.5kw, air cooling, China |
Spindle speed | 0-18000rpm |
Cutters diameter | 3.175mm, 4mm, 6mm, 8mm,10mm,12.7mm |
Voltage | AC 220V, 50/60Hz, single phase or AC 380V,50/60Hz, three phases |
Empty traveling speed | 0-8000mm/min |
Engraving speed | 0-6000mm/min |
Machine accuracy | 0.03-0.05mm |
Diagonal error | 0.3-0.5mm |
Resetting accuracy | 0.03-0.05mm |
Control system | DSP offline A18 |
Motor wire | High soft specially for Numerical Control( 4*0.75) |
Spindle wire | Shielding high soft (3*1.5) |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Compatible software | Artcam, Type3, Ucancam, etc |
Software when delivery | Artcam (2D/3D) |
Running environment temperature | 0-45 ℃ |
Relative humidity | 30%-75% |
Auto tool calibration | Yes, for Z-axis |
Tools | 15 pcs |
Accessories | Water pump(2), tools(15) power line, USB line, fixtures(4), user manual, software CDs, DSP, collets(3), spanners(2), collets(6), brush(1), water tank(2),limit swiches (3),etc. |
Package And Shipping :
Packing: 3CBM, 350kg, one plywood case
Shipping: EXW/FOB/CIF/DDP/DDU... or according to your need

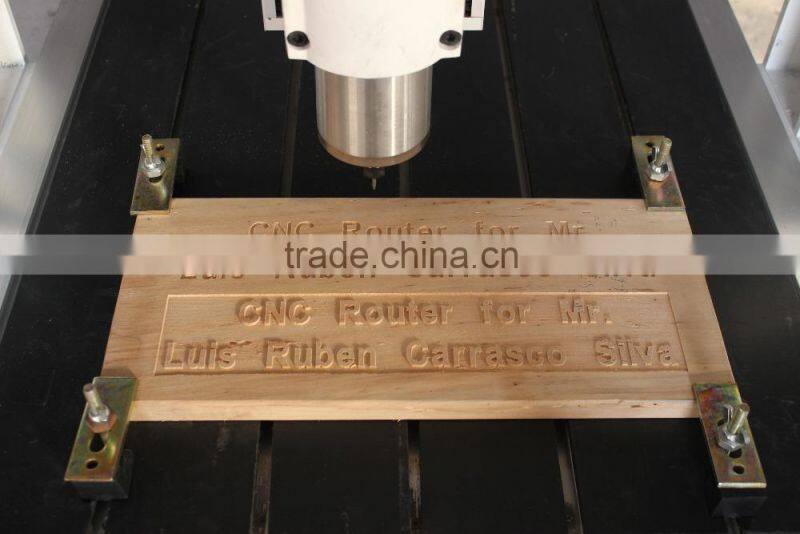

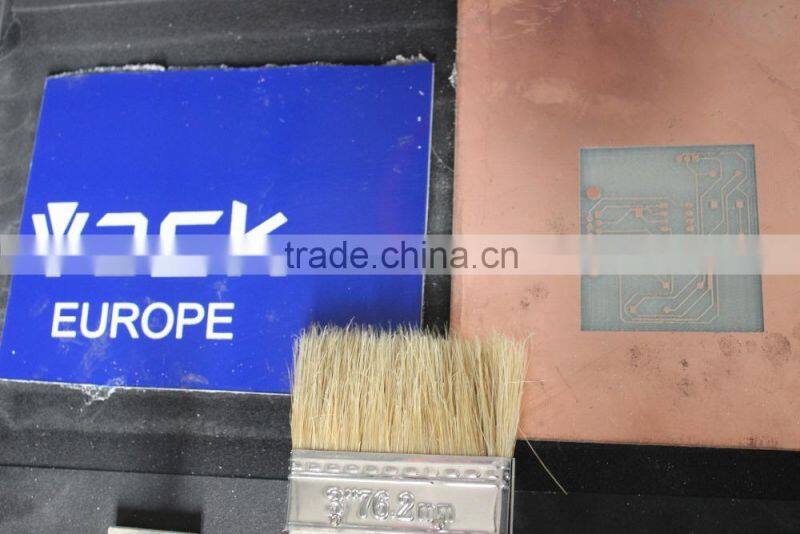

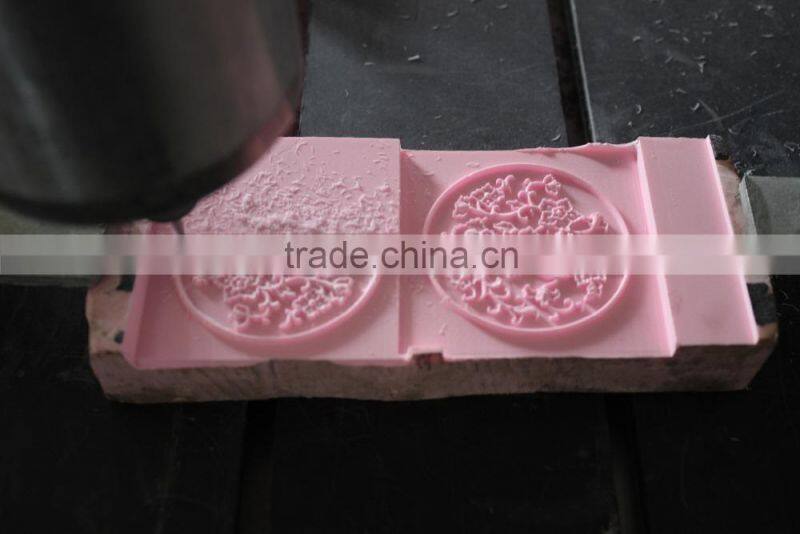

Working Samples :
Please feel free to contact us if you have any questions !
