ZK-1325 Air Cylinder ATC CNC Router With 3 Tools Changing 1300*2500*200mm
Air-cylinder type Auto Tool Changing
By adding pneumatic cylinder to make columned Auto-Tool changing, safe and save time
3 air cylinder, for 3 heads, 3 tools changing.
Intelligent controlling, 3 spindles can alternate automatically, according to program setted.
No need to change tools manually halfway, high efficiency.
Applicable to products which need at most 3 types of tools.
Application
Wood processing, antique furniture, furniture, speakers, games, crafts, wood tray, screen, relief murals and other

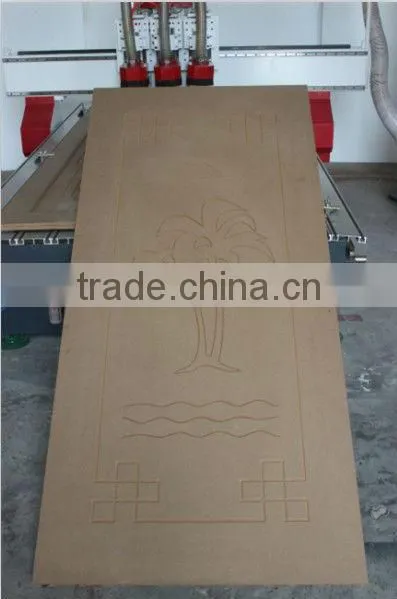

deep-relief, hard wood, MDF, particle board engraving, milling and cutting.
Machine features
1.High temperature tempering treatment, thickness square tube machine holder , more stable, high rigidity, bearing strength better.
2.Dual motor & driverfor Y-axis, moving stably.
3.Good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9, etc.
4.High precision rack and pinion transmission, fast speed.
5. Imported linear square guide way, double row four row slider, high precision, long life time.
6.Water cooling spindle, more powerful, low noise, not easy to break cutters.
7.Original NcStudio control system, more stable, higher precision.
8.Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
9.Emergency stop button, ensuring the operation safe.
Main technical parameters
Items |
Destription |
Optional |
Effective working area |
1300(X)mm*2500(Y)mm*200(Z)mm |
Bigger |
Max.thickness of the materials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
higher |
Materials |
Square steel tube machine, casr iron gantry |
|
Guide rail |
Linear square guide rail |
|
Transmission |
Rack for X Y-axis, ball screw for Z-axis |
Whole ball screw transmission |
Driving mode |
Stepper motor |
Servo motor |
Spindle motor |
3.0kw water cooling 2.2kw water cooling 2.2kw water cooling |
Bigger or air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-60000mm/min |
|
Engraving speed |
0-25000mm/min |
|
Voltage |
AC 220V 50/60Hz or AC 380V 50/60Hz |
|
Machine accuracy |
0.03mm |
|
Control system |
PCI NcStudio |
|
Carving Instructions |
G code *Uoo *mmg *plt HPGL |

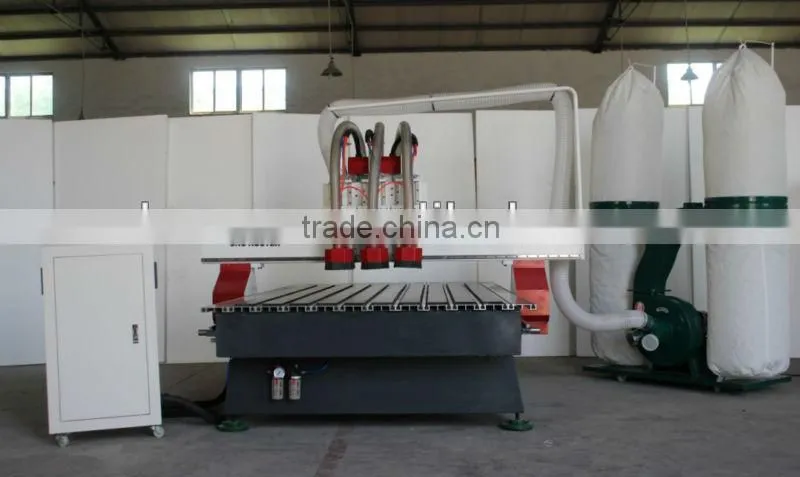

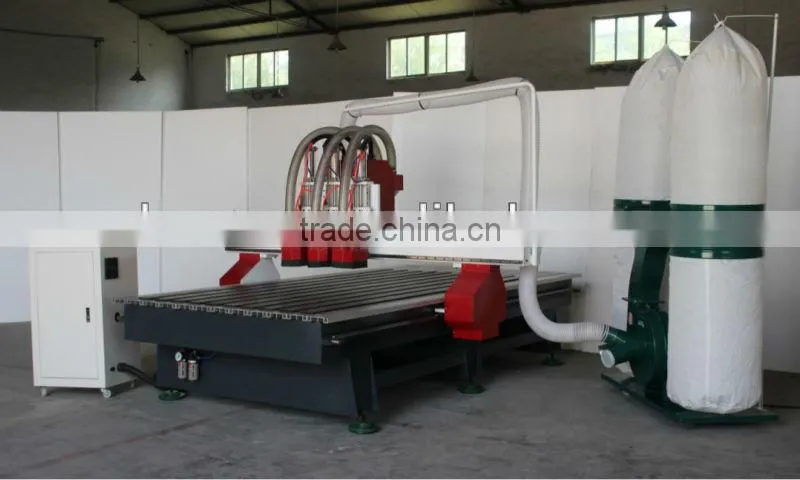

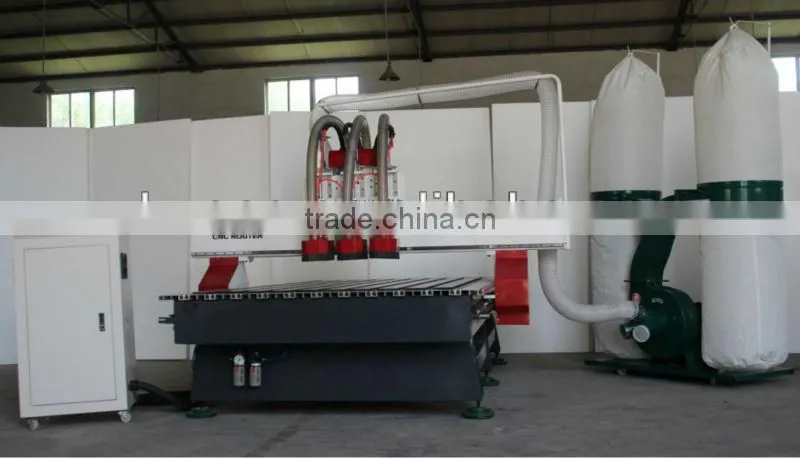

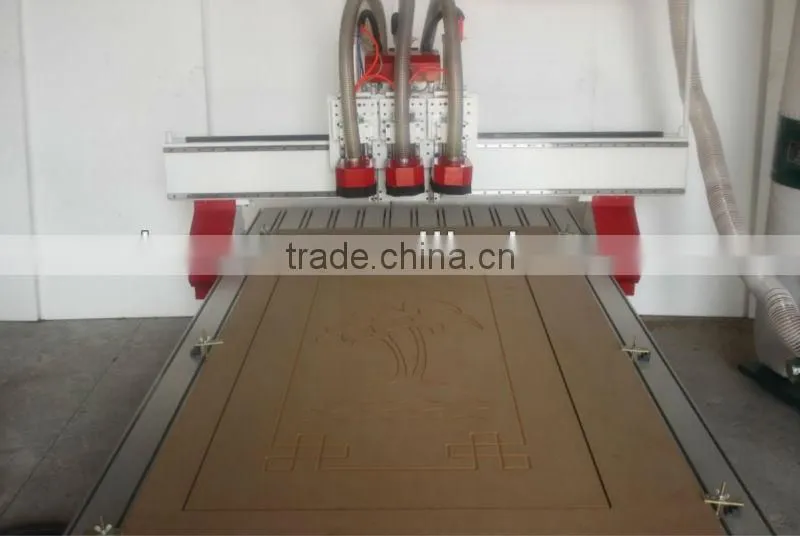

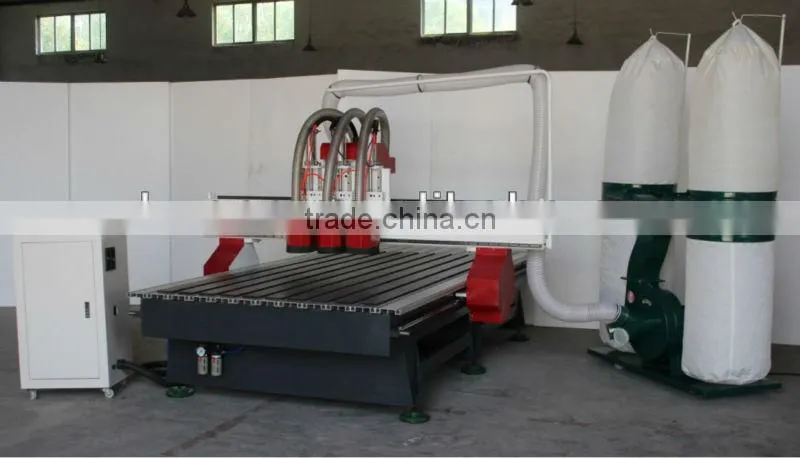

Reference machine pictures

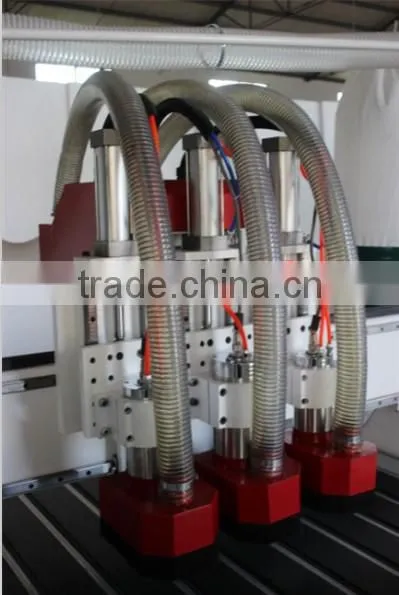

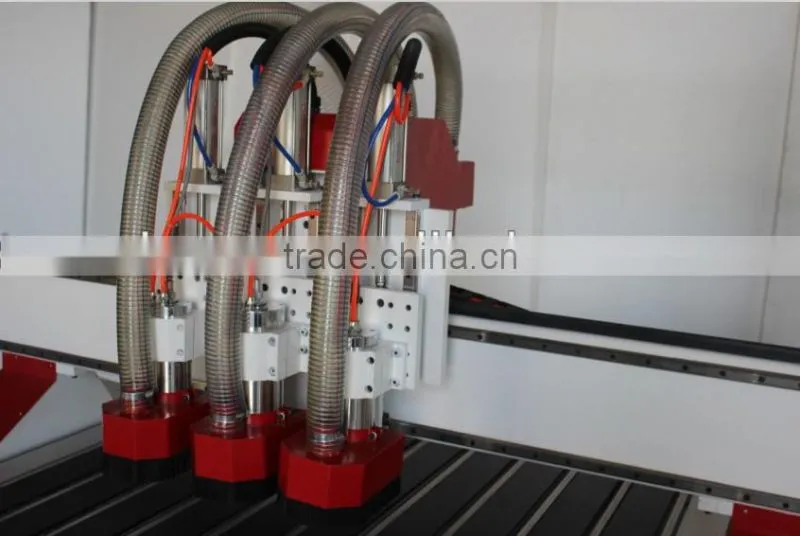

3 pneumatic air chaning spindle heads

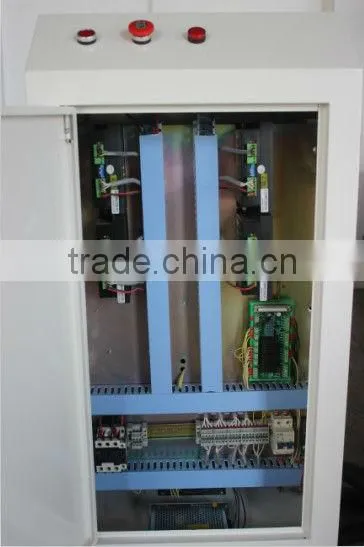

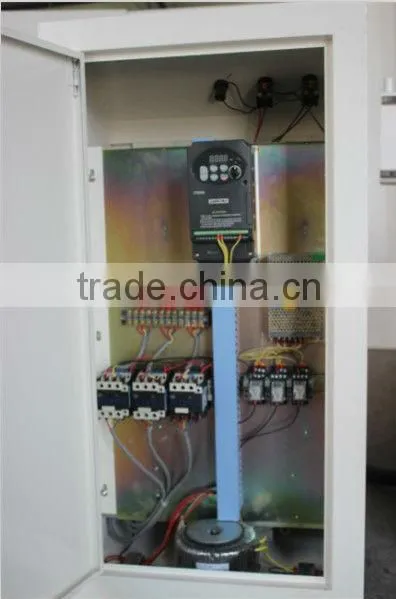

Magnetic valve & control cabinet
Other models you may be interested in
ZK-3030 300*300mm ZK-4040 400*400mm ZK-6060 600*600mm
ZK-6090 600*900mm ZK-1212 1200*1200mm ZK-1215 1200*1500mm
ZK-1218 1200*1800mm ZK-1224 1200*2400mm ZK-1530 1500*3000mm
ZK-2030 2000*3000mm ....
Our CNC Router's Configuration/Working Area/ Color Can Be Changed Just
According To Your Need!
