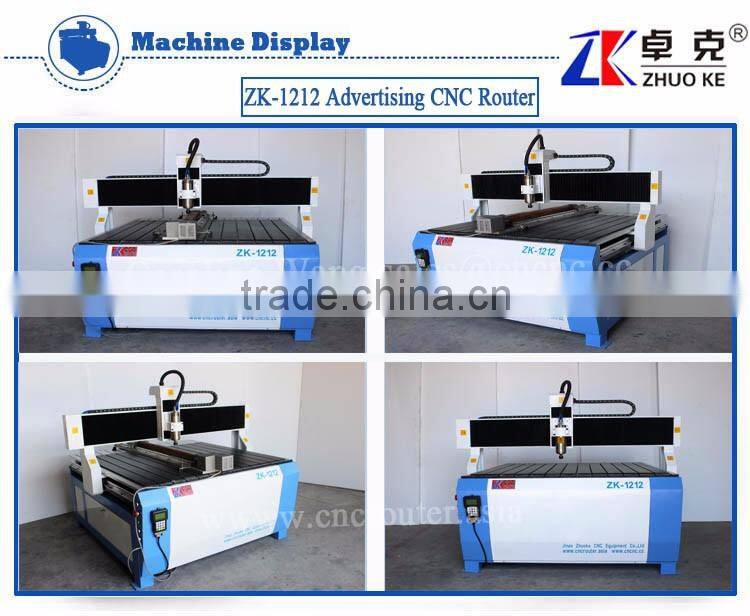

Classical CNC Engraving Machine For Wood Acrylic ZK-1212 1200*1200MM With 4 Axis DSP Offline Control System
Technical Data:
Certificate |
CE |
Effective working area |
1200(X)mm*1200(Y)mm*120(Z)mm |
Max.thickness of the materials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
Moving type |
Gantry moving |
Materials |
Cast iron machine bed, cast aluminium gantry |
Dust proof system |
For X YZ-axis |
Water cooling system |
Stainless steel water slot |
Working table |
Aircraft aluminium T slot |

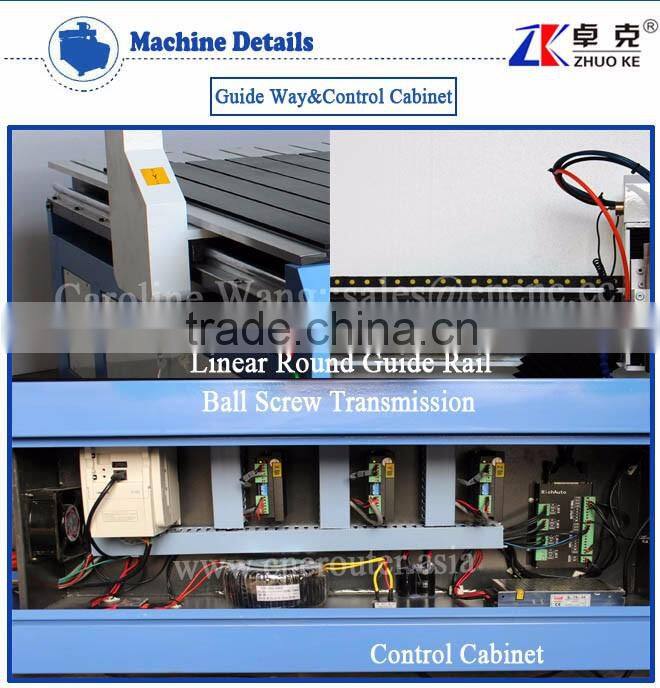

Guide rail |
Linear round guide rail |
Transmission |
Ball screw for X Y Z-axis |
Driving mode |
Stepper motor ( XY Z-axis: 86BYGH450A, 4.0N.M) |

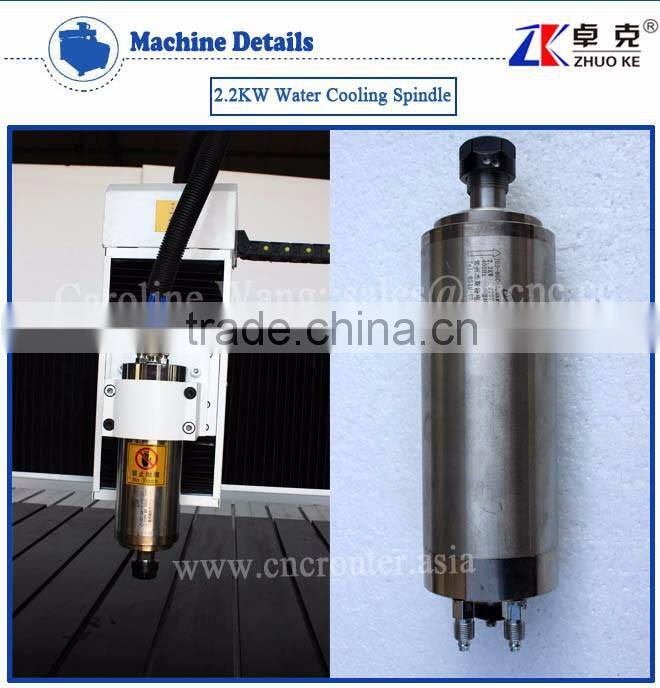

Spindle motor |
2.2kw water cooling, ER20 |
Spindle speed |
0-24000rpm |
Cutters diameter |
3.175mm, 4mm, 6mm, 8mm,10mm,12.7mm |
Voltage |
AC 220V, 50/60Hz, single phase or AC 380V,50/60Hz, three phases |
Empty traveling speed |
0-8000mm/min |
Engraving speed |
0-6000mm/min |
Machine accuracy |
0.03-0.05mm |
Diagonal error |
0.03-0.05mm |
Resetting accuracy |
0.03-0.05mm |
Control system |
DSP Offline control system |
Motor wire |
High soft specially for Numerical Control( 4*0.75) |
Spindle wire |
Shielding high soft (3*1.5) |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
Compatible software |
Artcam, Type3, Ucancam, etc |
Software when delivery |
Artcam (2D/3D) |
Running environment temperature |
0-45 ℃ |
Relative humidity |
30%-75% |
Auto tool calibration |
Yes, for Z-axis |
Tools |
15 pcs |

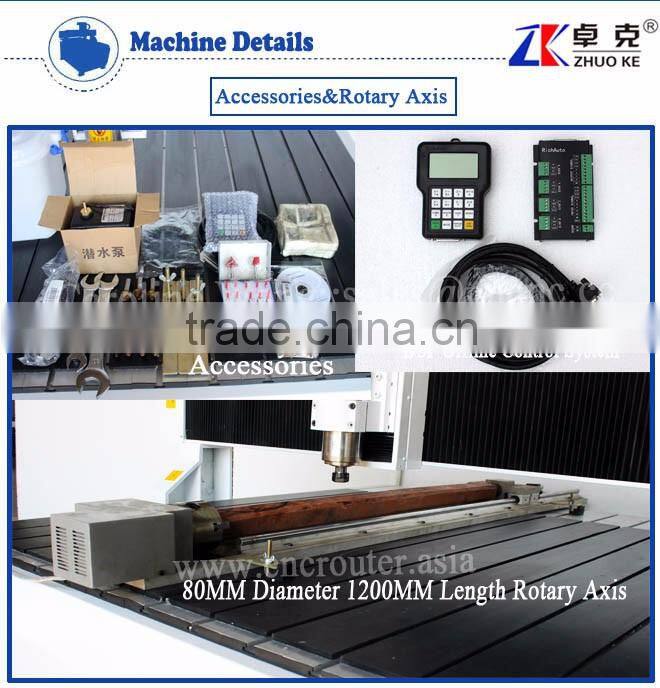

Accessories |
Water pump(2), tools(15) power line, USB line, fixtures(4), user manual, software CDs, Mach3, collets(3), spanners(2), collets(6),brush(1), water tank(2),limit swiches (3),etc. |
Applicable Industries:
Advertisement engraving and cutting, handicraft industry, advertisement logo,crystal word making, toys and gifts,artwork engraving,various types of manmade plate,LED,neon literally cutting groove,plastic molding light bow, interior decoration industry, mold manufacturing,wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, building, small metal, stationery, rulers, badges, department card, a variety of signs, trademark processing, etc.
Applicable Materials:
Organic glass,acrylic,ABS,PVC,MDF,doublecolor board , copper,aluminum composite panel,wood,ox horn,marble,copper,aluminum industry,3D technology,acrylic cutting,wave board,man-made stone,wood etc.
Machine features:
1. Whole cast iron machine bed, cast aluminum gantry with dustproof system, under impact resistance beam more stronger, higher cutting engraving precision.
2. Imported high quality ball screw, precision segmentation, to achieve the high precision engraving.
3. Adopt imported all-steel linear guide rail with the high precision,ensure machine frame much stability and durability.
4. Using the Leadshine AC driver and 85BYG high power step motor , makes the machine run smoothly, and higher efficiency .
5. The spindle motor adopt high-speed water frequency conversion brushless motors from domestic famous manufacturer . not only can cut vigorously, but also can engrave with great precision
6. Optional control system, NcStudio/DSP/Mach3, high stability, high efficiency, easy to learn.
7. Continuing working after the break point/power failure, lower the rejection rate.
8. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
