high-quality , environmental protection Plastic And Tyre Pyrolysis Plant

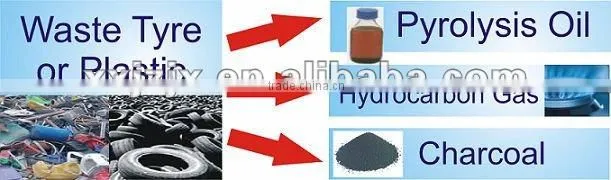

Used tire pyrolysis plant for sale can convert waste tires, waste plastic, waste rubber to fuel oil, carbon, steel wire. Waste tire oil average rate is 45%-52%, plastic is 75%-95% for PP,PE,ABS etc.

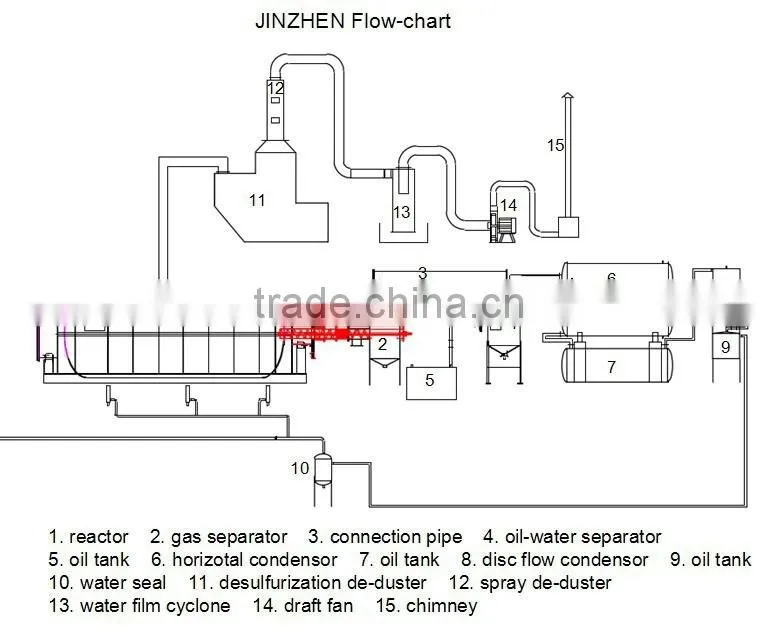

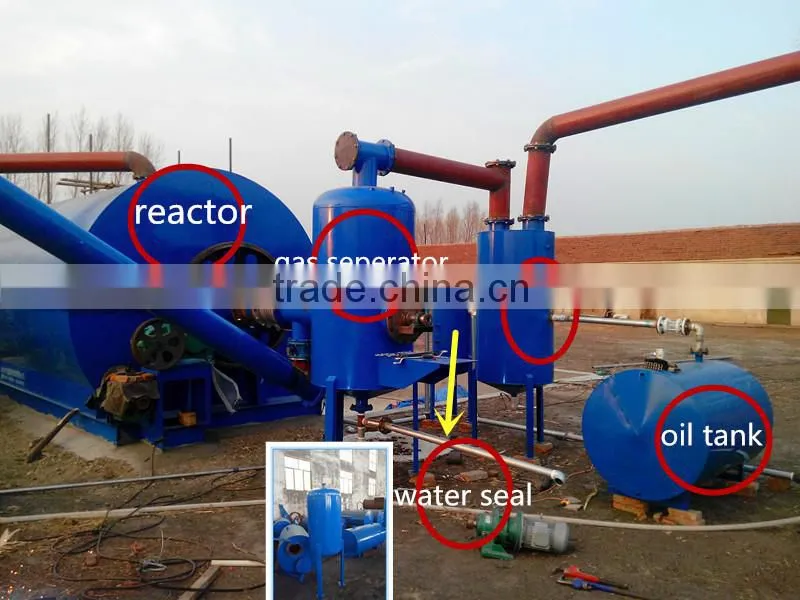

Used tire pyrolysis plant for sale working pinciple description briefly
Firstly, the raw material was put into furnace with auto feeder,thenseal the feed inlet system.
Secondly, burned the fuel material (coal, or wood, or natural gas, oil ) in the combustion system .The reactor will slowly heat, when the temperature reach around 150 degree Celsius, it will produce oil gas .
Oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure ,which will be designed to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much.
After finished oil produce ,the temperature of reactor will be down ,in same time ,carbon black will be discharged automatically.
Lastly, when the temperature fall to 100 degree Celsius, worker could opened the door of reactor to discharge of steel wire .
Then can start to another batch working.
oil yeild rate:
Item |
Raw Materials |
Output |
Tyres |
Steel Tyres |
40%~45% |
Nylon Tyres |
≈45% |
|
Tyres of bikes etc. |
≈35% |
|
Paper Mixture |
Rough Material |
≈15% |
Washing Material |
23%~26% |
|
PE materials |
≈70% |
|
Cable Skin |
PE cable skin |
≈85% |
PVC cable skin |
≈25% |
|
Pure rubber cable skin |
≈35% |
|
Telephone line |
≈50% |
|
Life Garbage |
Pure (Plastic bags) |
≈50% |
Wet Mixture |
15% |
|
Weaves & Handbags |
60% |
|
Soles |
Sports Shoes Soles |
27%~33% |
Black Rubber Soles |
≈ 35% |
|
Gum-rubber outsole |
≈45% |
|
Others |
Usual Rubber Tubes |
≈ 30% |
Carpets |
≈35% |
|
Aluminum Foil |
≈30% |
|
Car glass bead |
≈50% |
|
(PP) Beverage Bottle |
≈50% |
|
If your raw material is tire, as follows:
Crude oil |
45%----50% |
Carbon black |
35% |
Steel wire |
12%----15% |
Waste gas |
5%-7% |
Xinxiang City Jin Zhen Machinery Manufacturing CO., Ltd, was
restructured in 2004 based on the Xinxiang Yu Lin Machinery Factory .
There are 4 branches up to now . The company has an area of around
100MU, on which modern laboratories and large workshops are built.
There are more than 300 staff members including managements, the
sales and the technical works. Devoting in the research and
development of environmentally-friendly renewable energy equipment,
Jin Zhen has obtained significant result and social benefit.
