No Pollution Continuous Waste Rubber Pyrolysis Plant

           No pollution continuous waste rubber pyrolysis plant

Main advantages:

♦ Low cost, high profit

♦ 100% waste raw material recycling

♦ No chemical ingredients are used in process

♦ No soil, water or air pollution during and after the process

♦ Ecomonically valuable products out of waste tires

Waste Tyre recycling machine can pyrolysis waste tyre into oil. This kind of machine

also can pyrolysis waste rubber/ plastic into oil, and of course if the raw material is

tyre, the final products will be fuel oil, carbon black , steel wire; if the materail is rubber

or plastic, the final products will be fuel oil and carbon black.

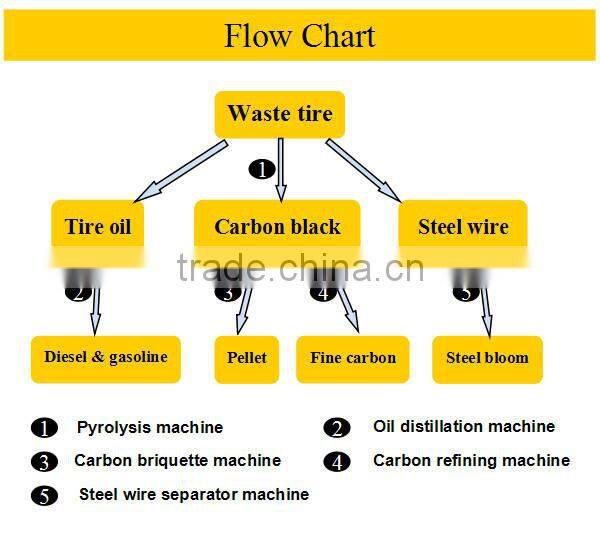

Flow chart of waste tyre recycling machine

Main parts of waste tyre recycling machine:

Reactor, cooling system, dedusting system, carbon black discharge system, security system.

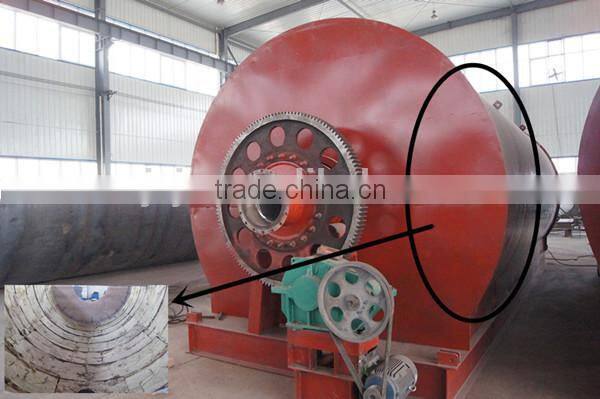

1)  The reactor

The reactor inside is made up of insulation cotton, refractory cement, so that can ensure the heat

preservation effect.

Advantages:

• Gear can ensure the reactor stable so that more safety.

• Rollers material is boiler plate, so they have long lifetime.

• Reducer can keep the reactor at he normal speed to keep stable and safety.

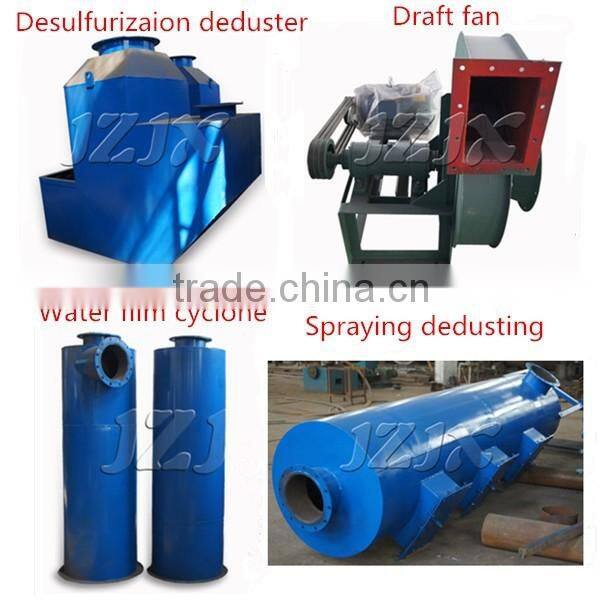

2) Dedusting system

Include desulfurization deduster, water film cyclone, spraying de-dusting, chimney, draft fan.

Advantages:

• Domestic initiative, three dust removal system.

• High-pressure nozzle made of stainless steel or copper alloy, longer life of dust removal

     system.

• No waste water discharge, the water only used for recycling, along with evaporation only

     need to increase, not let out.

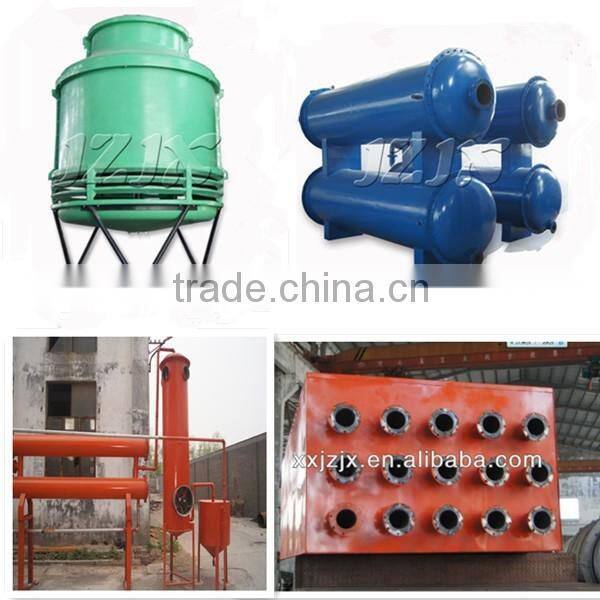

3) Cooling system

Include cooling pool system, cooling tower and condenser system.

Advantages:

• Inside each condenser has many pieces gas pipe, cooling area can reach 40m²;

  the pipe is thin so it can cooled quickly; looks more beautiful.

• Disk flow condenser: can enlarge the cooling area and cooling time; can improve oil quality and yield.

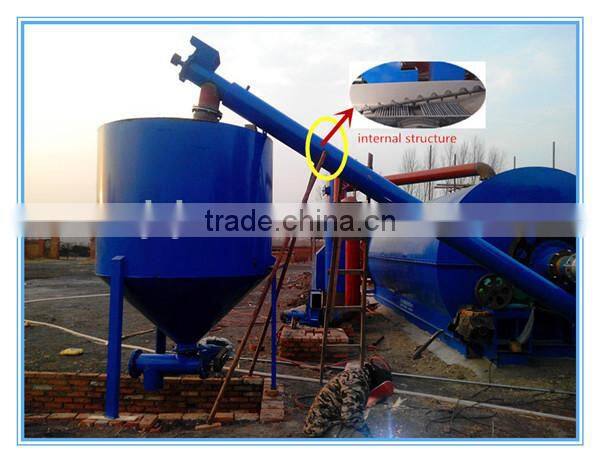

4) Carbon black discharge system

Advantages:

• With the help of the screw conveyor, the carbon black can be discharged at high

  temperature, shorten the discharging time.

• The carbon black can be storage in the carbon tank, so it more environmental and safety.

• It can be discharge automatically, safe and save labor force.

5) The security system

Include safety valves, alarm ring, water seal, auto decreasing pressure device, oil-water

separator, anti-back fire, negative pressure device.

Advantages:

The water seal make the waste gas to the furnace, so it ill be more safe. And the waste

gas will be as fuel so it will also save energy.

Installation & Commission of waste tire pyrolysis plant

1) Foundation drawings will be provided after making the order.

2) Engineers provided overseas installation and commissioning.

3) Trainings and other essential basic instructions will be provided.

Tips for You in Setting Up the waste tire pyrolysis plant

1) 300 square meters (length 20M, Width 15M) is enough for the equipment itself.

2) Installation site suggest in outdoors with good ventilation and safety facilities.

After-sale service

1) We will send engineer to your site to install machine, train your workers and do

    commissioning.

2) We offer one year warranty for our products.
