Waste tire recycling machine
Company information
XinXiang JinZhen machinery manufacturing Co.,LTD is locted in the acient civilization city of Xinxiang
we are professional Environment proection machinery manufacture.Our main products include waste tyre/plastic pyrolysis plant,oil distillation refinery machine and waste tyre recycling plant
we have been in this fields for over ten years,we can supply the best machine you want,aslo we have a expert and experienced technical team who can customized base on your special order.

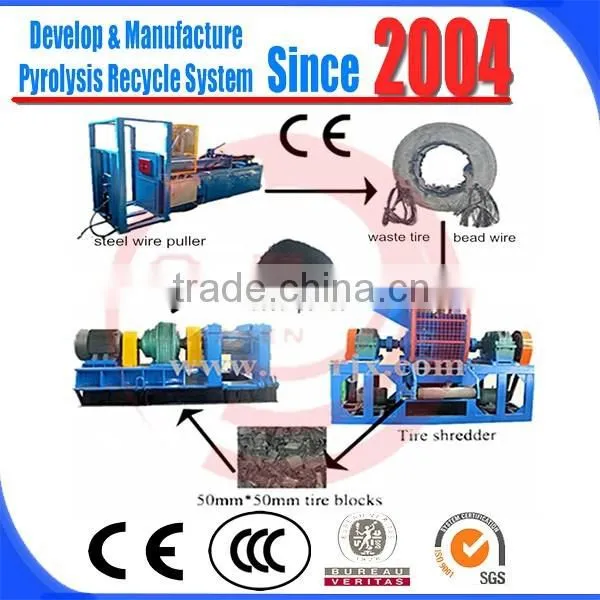

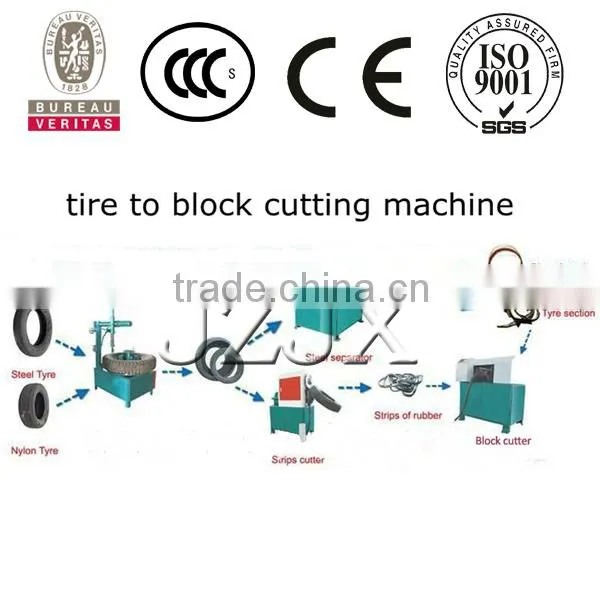

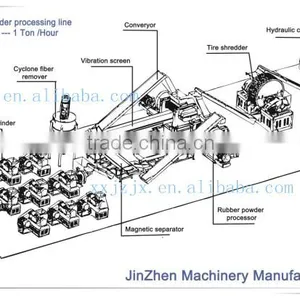

Flow Chart

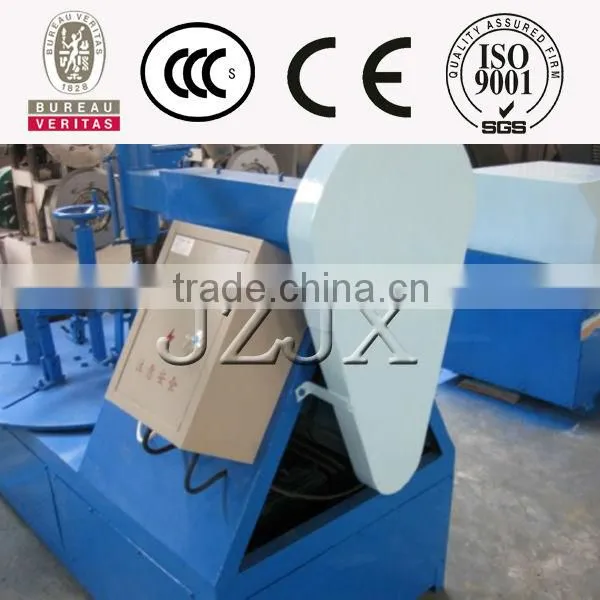

Ring Cutter:used to cut off the bead ring of the tyre.
Name |
Motor power |
Weight |
Capacity |
Ring cutter |
4.75 kw |
650 kg |
40 tyres/hour |

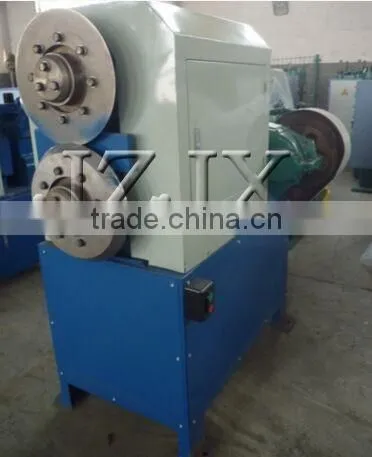

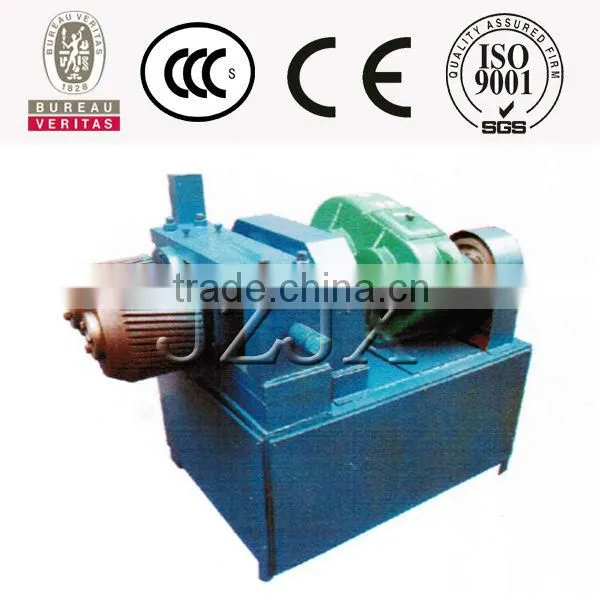

Strips cutter:Used to cut the tyres into strips
Name |
Motor power |
Weight |
Capacity |
Cutting size |
Tyre strip cutter |
4 kw |
850 kg |
0.8 t/hr |
5*8 cm |
Rim cutter:Used to cut the tyre strips into pieces
Name |
Motor power |
Weight |
Capacity |
Cutting size |
Rims separator |
5.5 kw |
800 kg |
0.8 ton/hr |
3*5*8 cm |

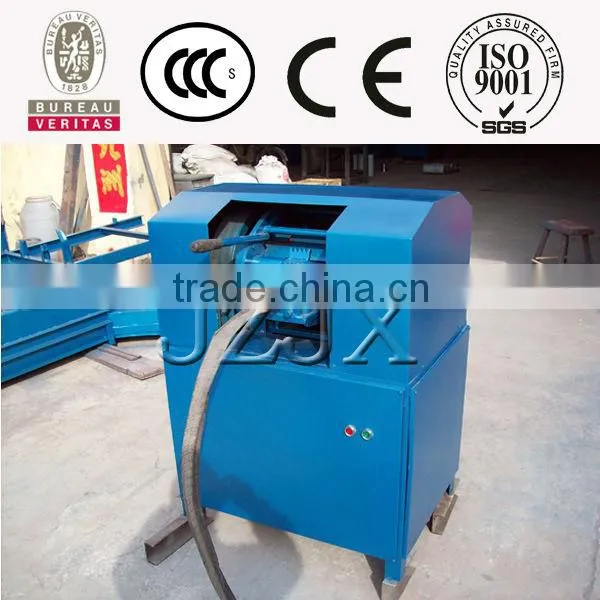

Steel wire separator:used to separator the steel wire from the tyre bead
Name |
Motor power |
Weight |
Capacity |
Steel wire separator |
11 kw |
1300 kg |
100 tyres/hr |

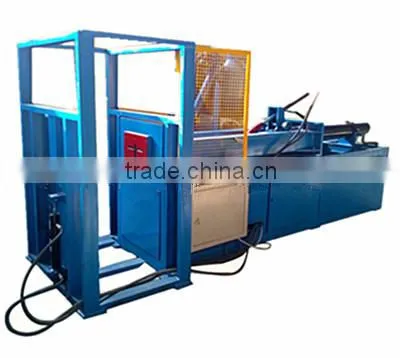

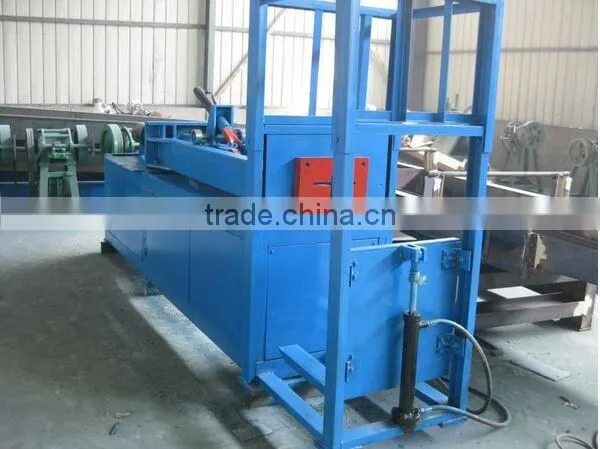

Stell wire puller:Used to puller out steel wires from the tire bead
Name |
Motor power |
Weight |
Capacity |
Steel wire puller |
7.5 kw |
1.5 ton |
40 tyres/hr |

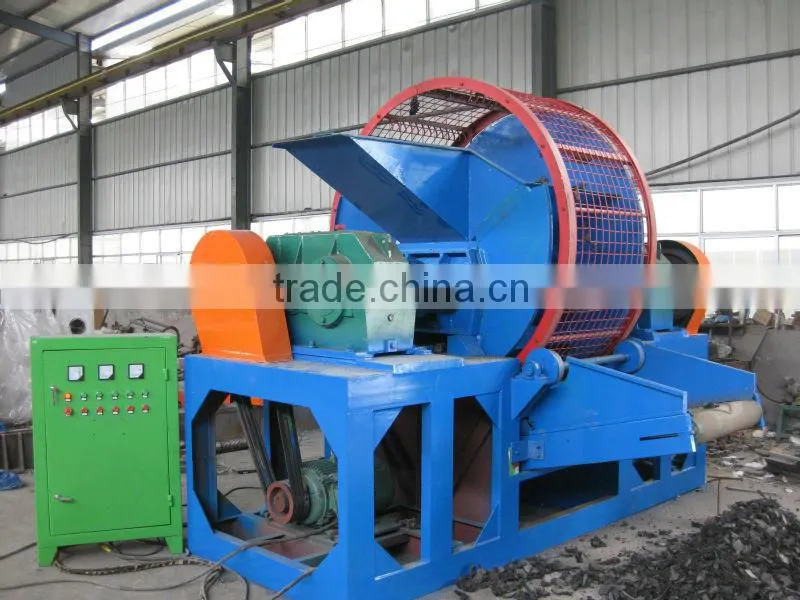

Tyre shredder:Used to shred the whole tyres after or not after the steel wires are pull out
Name |
Motor power |
Weight |
Capacity |
Cutting size |
Tyre shredder |
155.5 kw |
15.6 ton |
3.8 ton/hr |
5*5 cm |

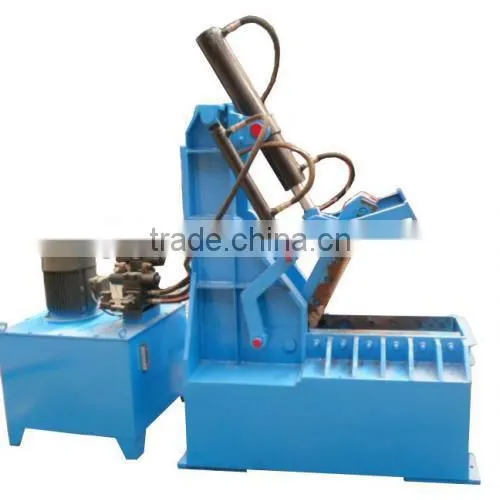

Tyre Cutter:Used to cut the whole the tyres into sections
Name |
Motor power |
Weight |
Capacity |
Tyre cutter |
7.5 kw |
2.5 ton |
40 tyre/hr |

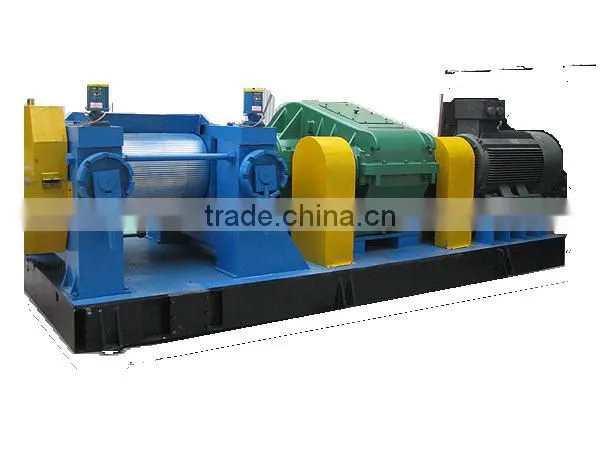

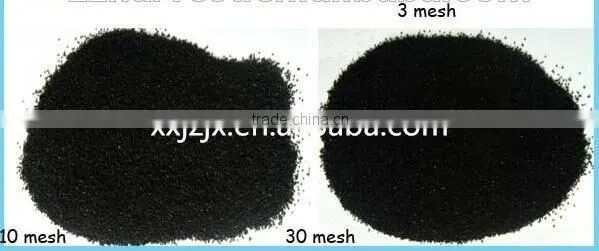

Rubber crusher:Used to crush the tyres into rubber powder
Model |
Drum diameter |
Drum length |
Front roll linear |
Roll speed ratio |
Max roller spacing |
Motor power |
XKP-350 |
300 mm |
500 mm |
17.6 m/min |
1:2.5 |
10 mm |
20 kw |
XKP-400 |
400 mm |
600 mm |
21.6 m/min |
1:2.5 |
10 mm |
30 kw |
XKP-450 |
450 mm |
760 mm |
25.3 m/min |
1:2.5 |
10 mm |
37/45 kw |
XKP-560 |
560 mm |
800 mm |
28.6 m/min |
1:2.5 |
10 mm |
55/60 kw |
Magnetic Separator:Used to separator the stell pieces from the rubber powder.
Name |
Motor power |
Weight |
Specifications |
Magnetic separator |
1.5 kw |
400kg |
Permanent magnet |
Choces of plants
Choice 1:Ring cutter+stripes cutter+rim cutter+steel wire separator+rubber crusher+magnetic sea arator
Choice 2:Steel wires puller+tyre cutter+tyre shredder+tyre crusher+magnetic separator
Choice 3:Ring cutter+steel wire separator+tyre cutter+tyre shredder+tyre crusher+magnetic separ ator
Choice 4::Ring cutter+steel wire separator+tyre shredder+tyre crusher+magnetic separator
Choice 5:Steel wires puller+tyre shredder+tyre crusher+magnetic separator
Choice 6:Tyre cutter+tyre shredder+tyre crusher+magnetic separator
Our services
1.Presales service : freely provide project designing, Professional suggestions, quickly response
2.Mid-sales service: accompany you to complete the purchasing, shipping, installing and training
3.After-sales service: 1 years quality guarantee, life-long maintenance.
Waiting for your consulate......
