WF-LA009 china factory designed galvanized steel wind break wall for dust control
galvanized steel wind break wall for dust control
Wind break wall is a new and low cost way to solve the dust pollution problem in the open yard of bulk materials. Our galvanized steel wind break wall has been widely used in ports, power plants, coal mines, cement plants, and other business fields where have the needs of wind and dust control. With using of our galvanized steel wind break wall, the wind can be effectively controlled, thereby can suppress the arousing of dust. Dust suppression rate can reach up to 80% by means of our galvanized steel wind break wall alone. Moreover, our galvanized steel wind break wall have a long life span over 20 years and barely needs maintenance. So, our galvanized steel wind break wall is an effective and economic choice for improving local environment.
Brief description of our galvanized steel wind break wall

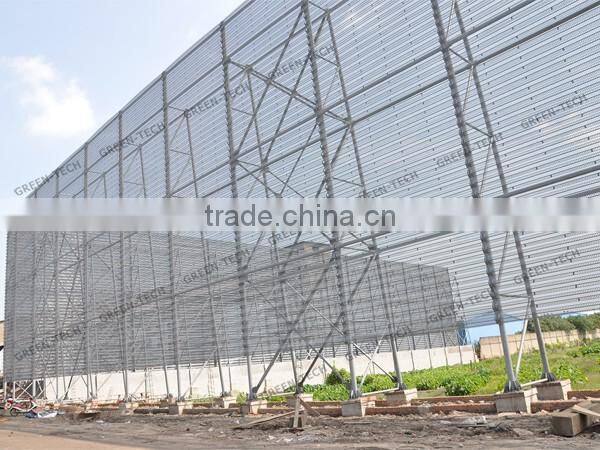

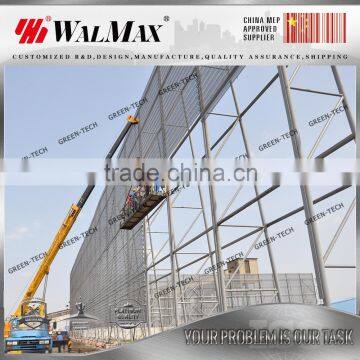

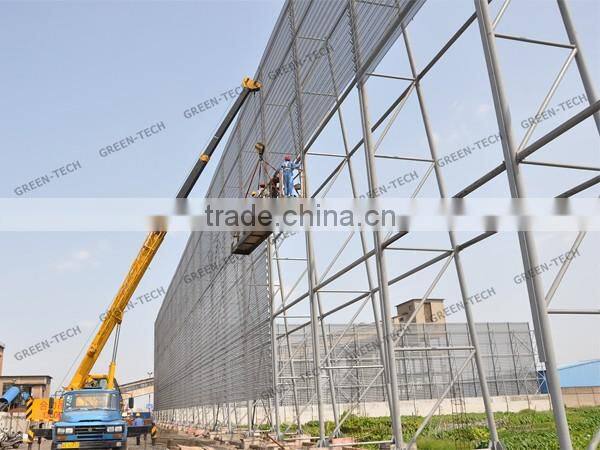

Our galvanized steel wind break wall consists of three parts: the foundation, the steel structure post and the steel wall panels. The galvanized steel wind break wall is professionally designed according to factors such as the pile height, wind load, desired earthquake resistance, etc. All structural posts of the galvanized steel wind break wall are completed in factory. The steel wall panels can be fastened on the steel post at site by bolts and nuts.

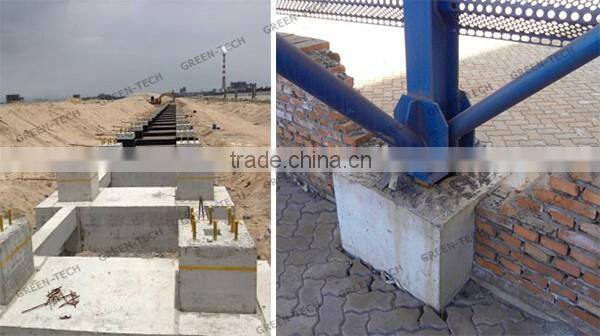

Foundation for the galvanized steel wind break wall

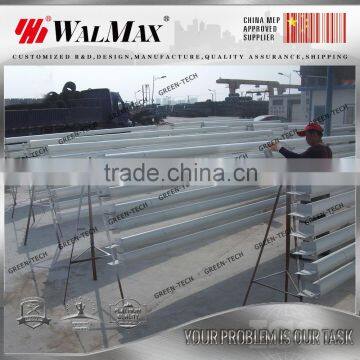

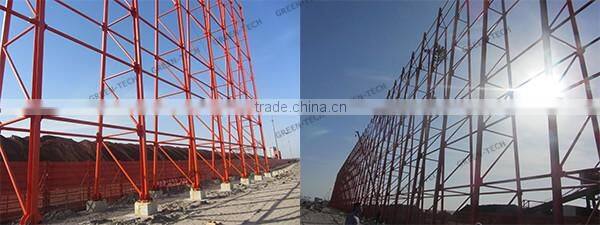

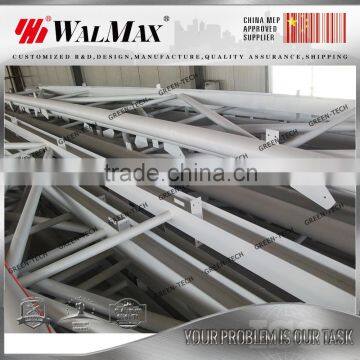

Steel post for the galvanized steel wind break wall

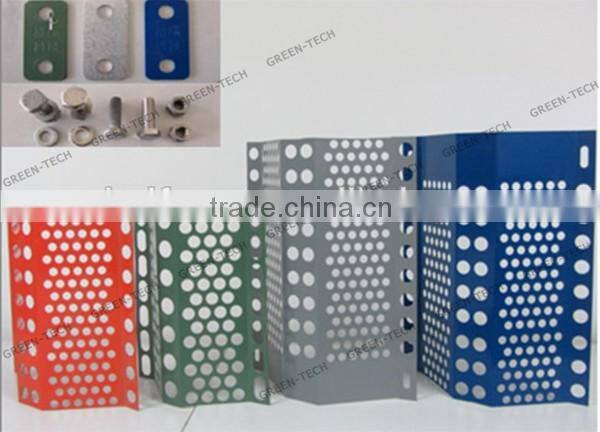

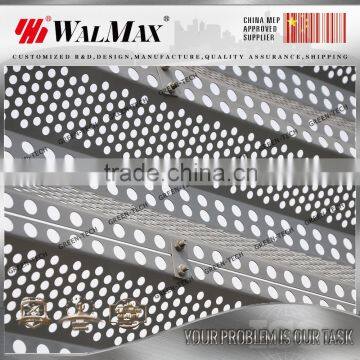

Wall panels for the galvanized steel wind break wall
Aperture ratio |
30%-40% |
Aperture type |
round |
Aperture diameter |
4-6mm |
Width |
250-850mm |
Length |
3000-6000mm |
Thickness |
0.8-1.5mm |
Materals |
Cold rolled steel coil, galvanized steel coil and Al-Zn galvanized steel coil |
Color |
silvery, blue, red, yellow, green..., customized |
Mechanism of the galvanized steel wind break wall

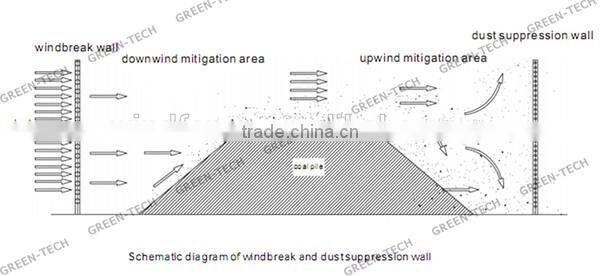

Our galvanized steel wind break wall can control and improve the airflow field of the open yard. When a strong wind meets the wind break wall, only part of the wind can pass through, so the mechanical energy weakens and the strong wind converts to low speed airflow. A new airflow field of the yard area behind the galvanized steel wind break wall will formed, and thus can reduce the dust diffusion in the lower place of the open yard.
Benefits of our galvanized steel wind break wall
1. Economical benefits
Reducing the loss of raw materials;
Improving the space utilization of the yard;
Low maintenance cost, barely needs maitenance;
Long life span, over 20 years.
2. Social benefits
Improving the environment quality nearby the yard;
Improving the working environment of the workers in the yard;
Beautifying of local region because of optional colors of the appearance.
Information needed for design of galvanized steel wind break wall
For our galvanized steel wind break wall design, customers need to provide the following details:
1. Natural conditions
Including temperature, precipitation conditions, fog conditions, wind conditions, geological conditions, desired earthquake resistant levels, etc.
2. Open yard situation
Including the surrounding environment, yard size, geometry of the pile.
3. Customers' requirement
Customer's demand of dust suppression rate, anti corrosion, flame retardancy, acid and alkali resistance, service life, etc.
With above information, we can supply you the following designs for the wind break wall:
General layout design
Height design
Wall panel design
Steel post structure and foundation design
Our company
Green (Tianjin) Technology Development Company, Ltd. is a Chinese manufacturer specializes in the production and installation of steel windbreak and dust suppression system. We strictly follow the modern enterprise management mechanism and have passed the authorization and audit of ISO9001: 2008, ISO14001: 2004 and ISO18001: 2001 quality management systems. Green Technology has established close cooperation with universities, research and design institutes to guarantee superior quality and excellent performance of the steel windbreak and dust suppression wall system. Our company owns the qualification of Environmental Engineering Contractor ( Grade Ⅲ ), Steel Structure Engineering Contractor ( Grade Ⅲ ) and possesses more than 20 patents.
Contact:
WF-LA009 china factory designed galvanized steel wind break wall for dust control.
For any further information, please freely contact us!
