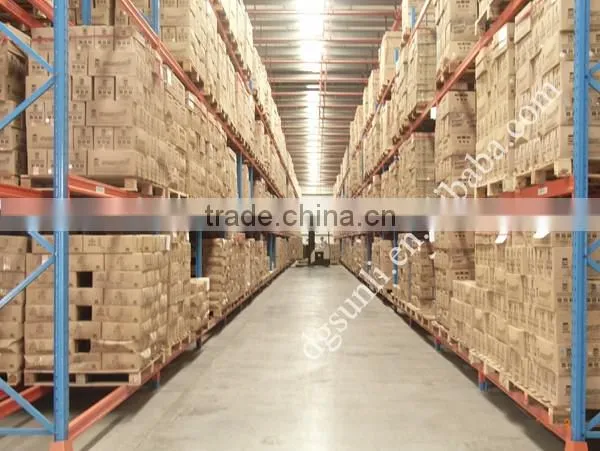

ISO Material Warehouse Steel Storage Pallet Rack
Structural features:
1.It's the most effective multiple storage racking,work with fork truck,and store or take goods with pallet.
2.It can be highly selected and "first in,first out" with high cycling rate.
3.All coposite structure,it is easy and fast to dismounting,flexible application.
4.Each upright pitch adjusted by 75mm,the beam distance can be adjustable base on the height
of storage item.
About racking details:
1.Size L1500-3300mm * D800-3000mm *H:3000-10000mm(specail sizes also avaiable to
specific storage needs.)
2.Loading capacity:1T-5T/level
3. Upright section: 80*60mm, 90*60mm, 100*60mm, 88*68mm, 100*68mm, 110*68mm,
120*68mm, etc
4. Box beams section: 80*45mm, 90*45mm, 100*45mm, 110*45mm, 120*45mm, 130*45mm,
140*45mm, etc.
5. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors
and all necessary components.
6.Material:Q235B
7.Forklift :Forklift passway W2800mm,match reach forklift truck,can use single plastic pallet and double side pallet
8.Color:High-quality Powder Coating Finish.
upright frames—blue/RAL5015;beams —orange/RAL2004 (various colors is available)
9.Quick Delivery:Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
10. Certification:SGS and AS4084 , ROHS and ISO9001 ;CE

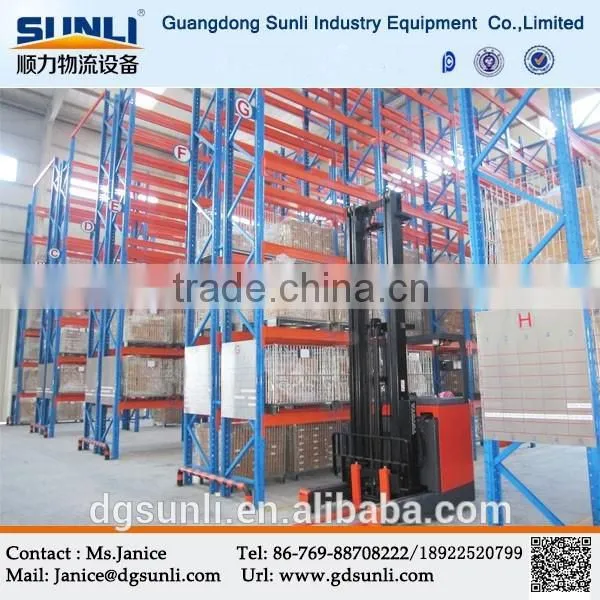

Pallet type storage rack, forklift underpass

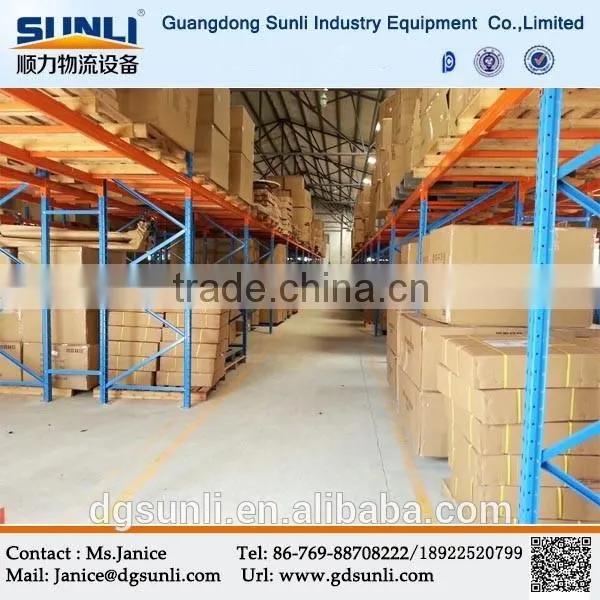

Wood pallet type storage rack in warehouse
Single deep pallet storage, heavy duty pallet rack
Double deep pallet storage rack

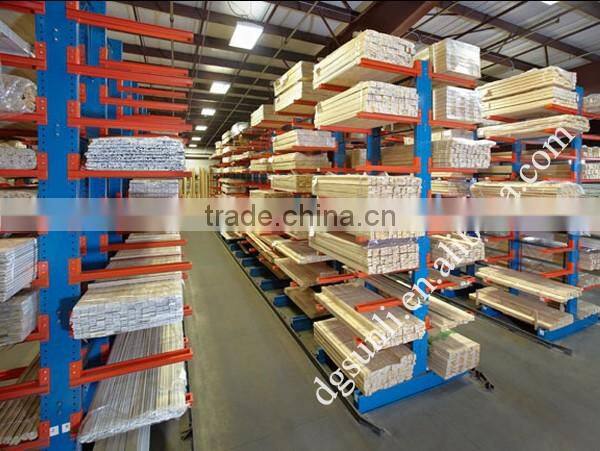

Cantilever storage rack for long pipes, tubes, lumber
General procedures for manufacturing rack
Packing and shipping details for rack
Our racks have been strictly passed by internation standards:
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many bays you want
D) How many layers for each bay that you want
E) The loading capacity of each layer
F) Choose steel panel or wooden veneer
G) The RAL color you want
1. Q: Are you a factory or trading company?
A:we are a manufacturer for storage rack.
2. Q: Where is your factory located? How can I visit there?
A:Our factory located in DongDuan City Guangdong Province ,China ,You can fly to Guangzhou or Shenzhen airport directly .We will pick you up on Guangzhou or Shenzhen international .All our clients ,form home or abroad ,are warmly welcome to visit us!
3. Q: What is the term of payment?
A: 1) T/T payment. 2) LC
4. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.
5. Q: Which port will be used as loading port?
A: Shenzhen and Guangzhou port.
6. Q: What is delivery times?
A: It depends on the order quantity and racking types
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
